CNC Abkantpresse

EHT

MULTIPRESS 175/40

Auf Anfrage


Condition

Gut (gebraucht)

Year of construction

1999

Availability

Sofort

Category

Sonstige

Location

77731 Willstätt


Description

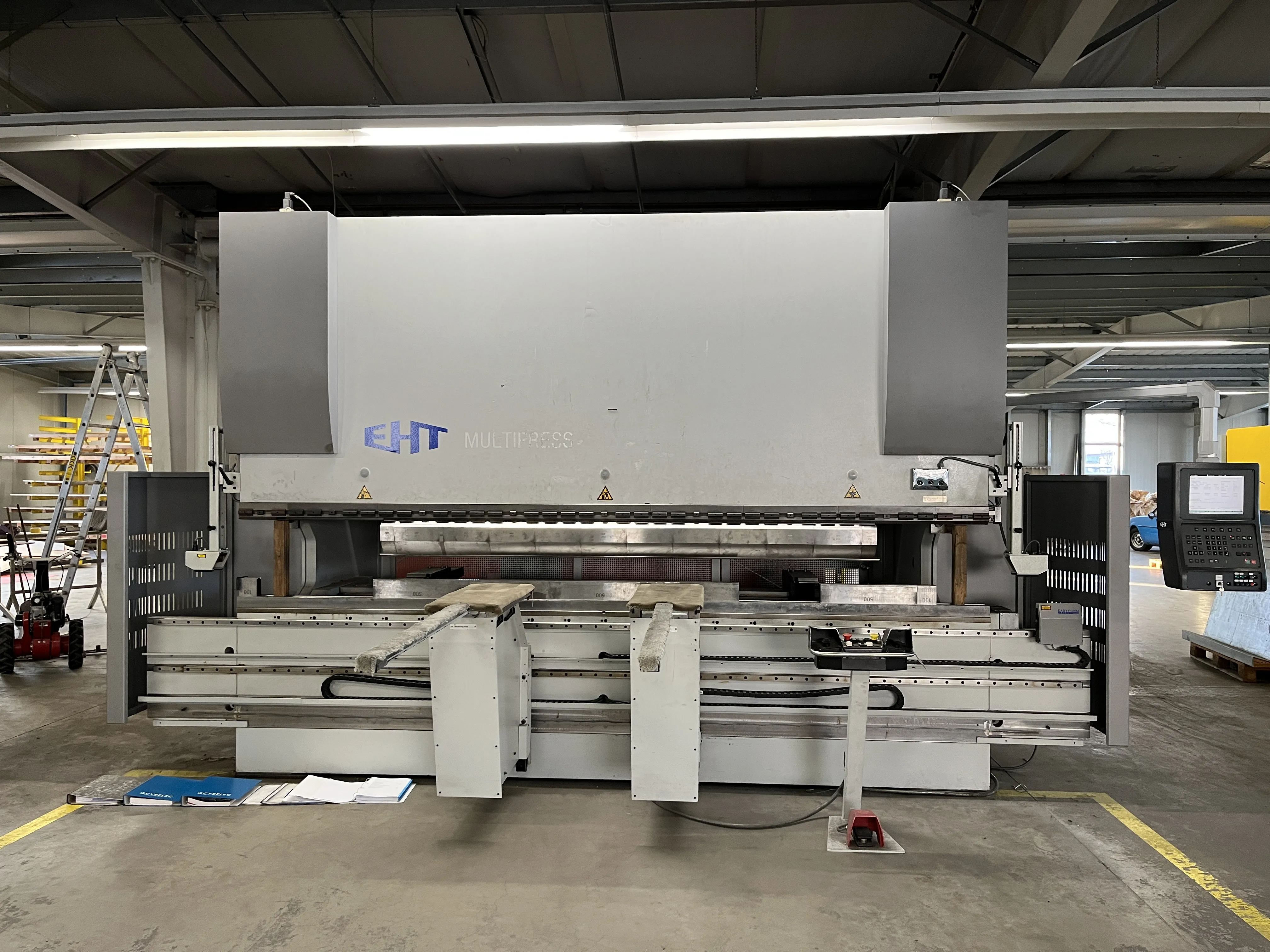

CNC press brake

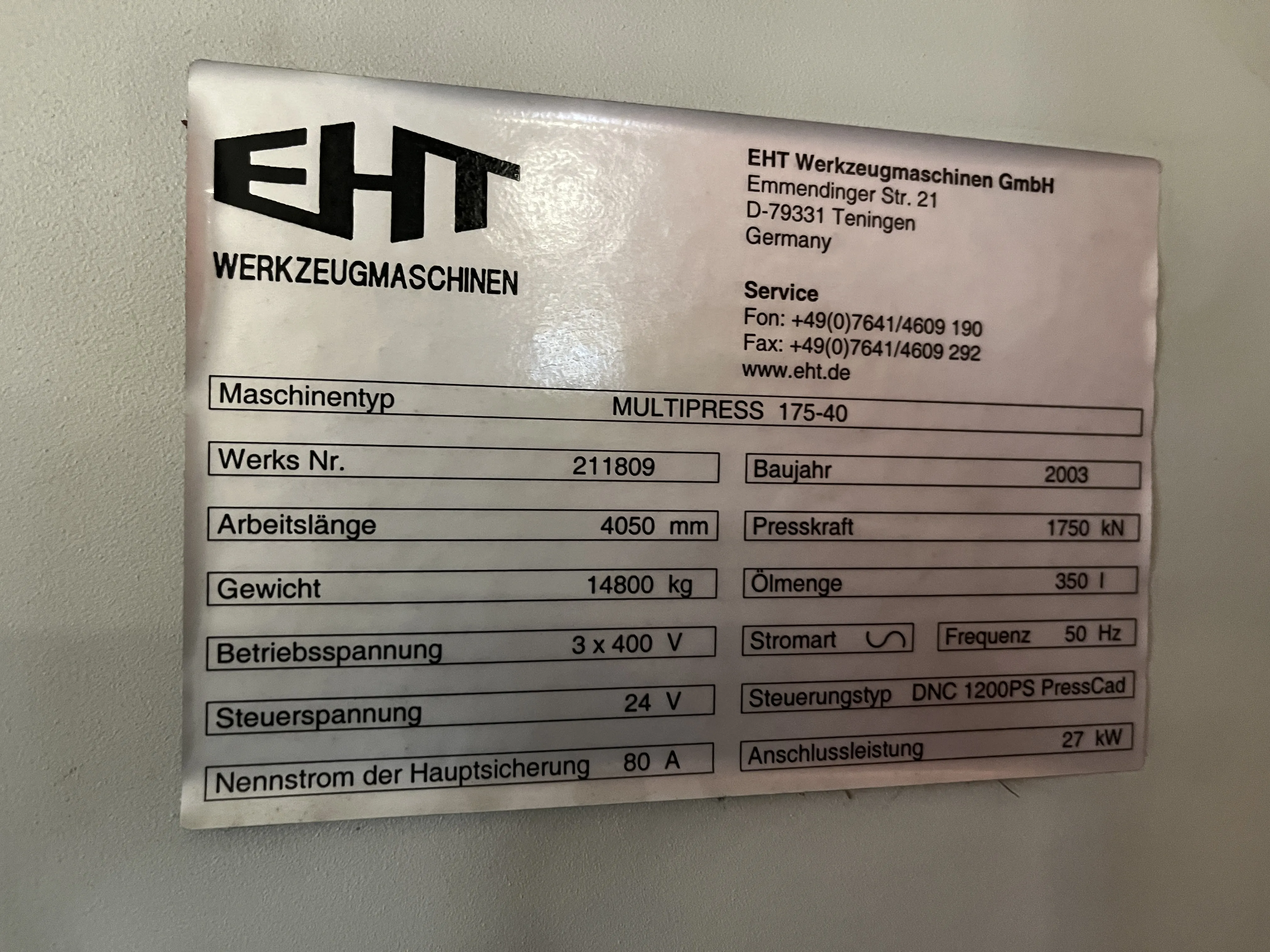

  • Manufacturer: EHT
  • Type: MULTIPRESS 175/40
  • Year of construction: 2003
  • Machine number: 211809
  • Operating voltage: 3 x 400 V
  • Frequency: 50 Hz
  • Control voltage: 24 V
  • Rated current: 80 A
  • Connection: 27 kW
  • Control: CYBELEC
  • Working length: 4050 mm
  • Distance between the machine stands: 3550 mm
  • Stand projection: 405 mm
  • Plunger stroke: 400 mm
  • Distance table to ram: min. 320 mm max. 720 mm
  • Max. Pressing force: 1750 kN
  • Hub speeds:
  • Idle speed: max. 140 mm/s
  • Press cycle: max. 10 mm/s
  • Retraction: max. 180 mm/s
  • Security data:
  • Safety distance: at least 190 mm
  • Permissible follow-up time: max. 119 ms
  • Permissible overtravel: max. 8 mm
  • Pressure in the hydraulic system: max. 293 bar
  • Pressure in the pneumatic system: 4.5 – 6 bar
  • Content of the oil tank: 350 L
  • Back stop:
  • Stop carrier adjustment:
  • Stopping range X-axis: 5 – 1000 mm
  • Adjustment speed X-axis: max. 500 mm/s
  • Drive power X-axis: 1.0 kW
  • Height adjustment:
  • Adjustment via servo motor (R-axis)
  • Adjustment range R-axis of table surface: 85 – 235 mm
  • Adjustment speed R-axis: max. 150 mm/s
  • Drive power R-axis: 1.0 kW
  • Stop finger adjustment:
  • Adjustment range Z1 axis from the left end of the table: 450 – 3400 mm
  • Adjustment speed Z1 axis: max. 1000 mm/s
  • Drive power Z1 axis: 0.85 kW
  • Adjustment range Z2 axis from the left end of the table: 650 – 3600 mm
  • Adjustment speed Z2 axis: max. 1000 mm/s
  • Drive power Z2 axis: 0.85 kW
  • Adjustment range X1 axis from center position: +/- 125 mm
  • Adjustment speed X1 axis: max. 250 mm/s
  • Drive power X1 axis: 0.85 kW
  • Adjustment via backgauge (MVX):
  • Adjustment range: max. 100 mm
  • Adjustment speed like X-axis: 500 mm/s
  • Bending aid at the front:
  • Swivel angle BV1/BV2 axis: 55°
  • Swivel speed BV1/BV2 axis: max. 45°/s
  • High swivel force (per swivel arm) BV1/BV2 axis: max. 1500 N
  • Drive power BV1/BV2 axis: 1.0 kW
  • Attention: the machine can be transported on a truck up to 3000 mm wide
  • Setup dimensions L x W x H (in mm): 5000 x 4200 x 3100
  • Weight (in kg): 14000

The machine will be sold at an industrial auction.
Click here for the machine:

https://www.surplex.com/de/al/4/schliessung- of a sheet metal processing company-6556.html
