Description

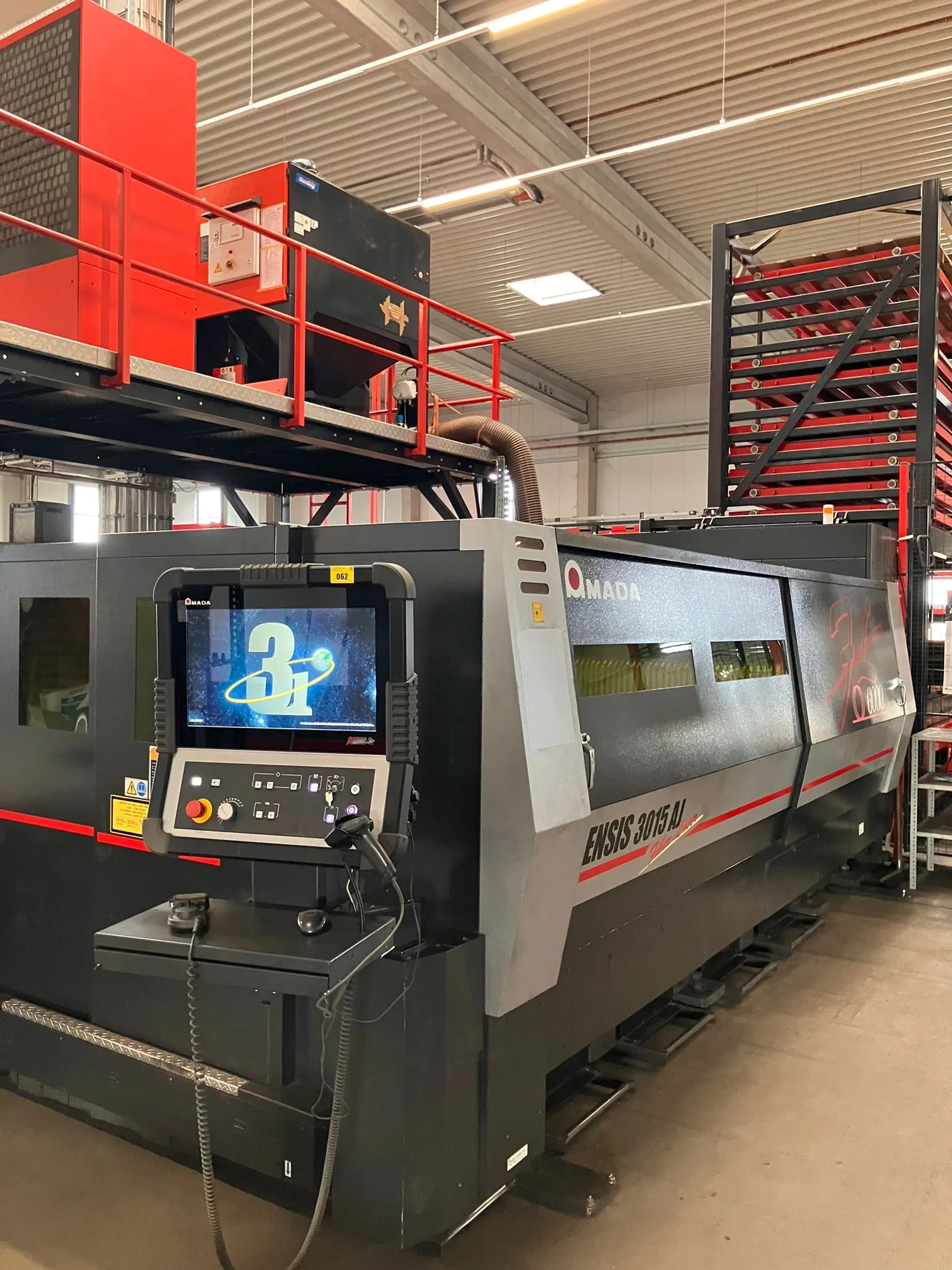

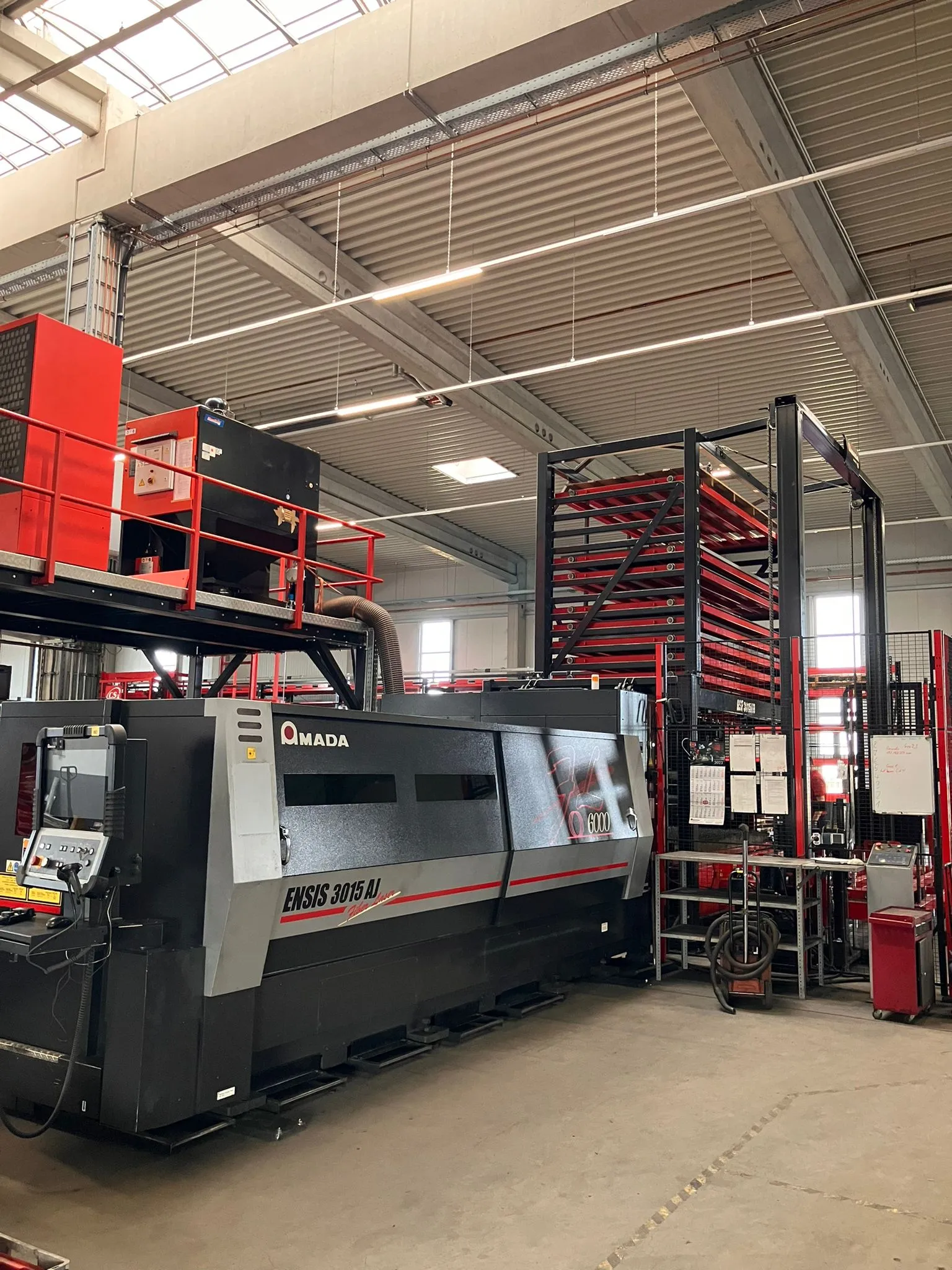

Amada Ensis 3015 AJ 6kW + ASF 3015 EU

Year of construction 12/2018 – Installation 2019

Operating hours: approx. 42,000h / 28,000h / 19,000h

Technical data:

Travel range: 3070 mm x 1550 mm

Table load: 920 kg

Positioning speed: 170 m/min

Laser principle: flying optics

Machine weight: 9,500 kg

Laser source:

Beam source: Diode pumped fiber laser

Type: AJ-6000

Laser power: 6000 watts

Laser wavelength: 1.08 µm

Performance stability: +/- 2%

Pulse frequency: 1 – 10,000 Hz

Pulse duty cycle (duty): 1-100%

Control:

Type: AMNC-3i

Screen: 21.5” touchscreen

Operating system: Windows 7

Equipment:

NC focus control

Oil spray function

Sensor cutting head

Diode laser for positioning

Cutting process monitoring

Safety device

Automatic nozzle changer

Conveyor belt

WACS

Peripheral devices:

Transformer

Cooler

Suction

Maximum material thicknesses:

Normal steel:             25 mm

Stainless steel:                  25 mm

Aluminum:                 25 mm

Brass:                   15 mm

Copper:                      12 mm

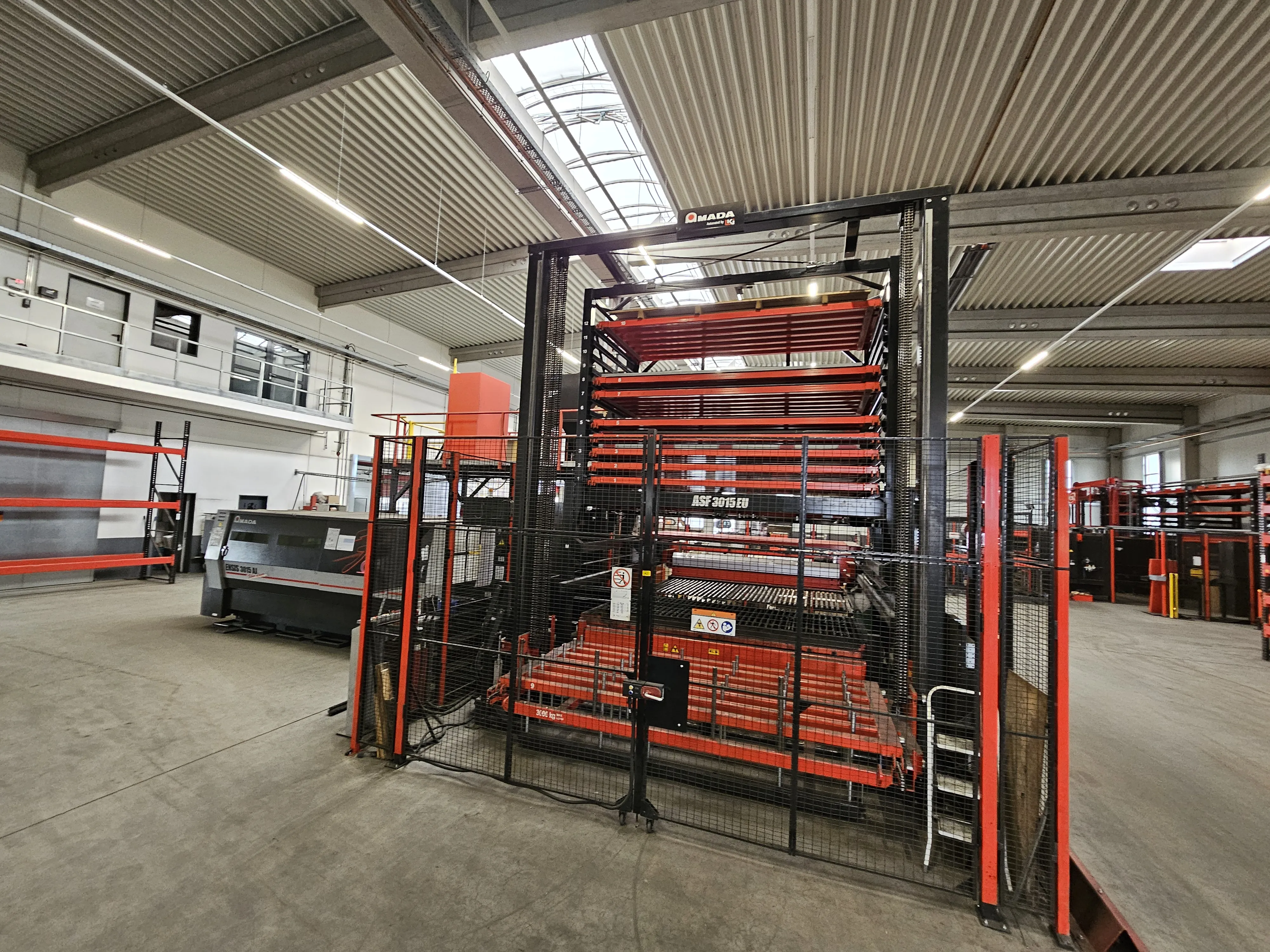

Loading and unloading system ASF 3015 EU, year 2019:

Technical data:

Max. Sheet size: 3,000 x 1,500 mm

Min. Sheet size: 1,500 x 1,000 mm

Material thickness: 0.8 – 25 mm

Max. Material weight: 920 kg

Min. Item size: 180 x 180 mm

Max. Loading weight per compartment: 3,000 kg

Stacking height of raw material: 80 mm

Stacking height of unloading pallets: 220 mm

Number of pallets:      2 x cutting pallets

                            7 x raw material pallets

                           3 x unloading pallets

System height: 5,200 mm

Time to change cutting pallets: approximately 32 s

Sheet loading cycle time: approximately 88 s

Min. Cutting time (Stop Start): approximately 32 + 88 s
