Leit- und Zugspindeldrehmaschine
WEILER
CONDOR
Auf Anfrage
Condition
Gut (gebraucht)
Year of construction
unbekannt
Availability
Sofort
Category
Sonstige
Location
Weilheim an der Teck, Deutschland
Retailer
Description
Guide and tension spindle circuit
- manufacturer: hamlet
- Type: Condor
- year of construction: unknown
- machine number: 10279
- operating voltage: 380 V
- Tax voltage: 220 V
- connection value: 3 kw
- nominal current: 6.7 a
- main security: 25 a
- frequency: 50 Hz
- Spindle speed: 82 - 1900 U/min
- peak length: approx. 800 mm
- lace height over bed: approx. 170 mm
- rotary diameter via bed: approx. 340 mm
- top height via support: approx. 100 mm
- rotary diameter via support: approx. 200 mm
- Spindle passage: approx. 42 mm

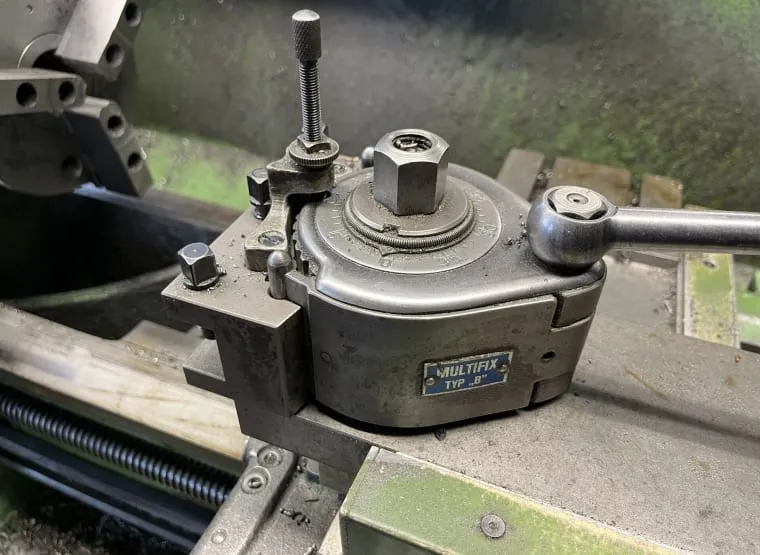

- The machine is equipped with a riding skirt, a multifix steel holder type B and a triple baking feed from the manufacturer forkart
- diameter: 160 mm

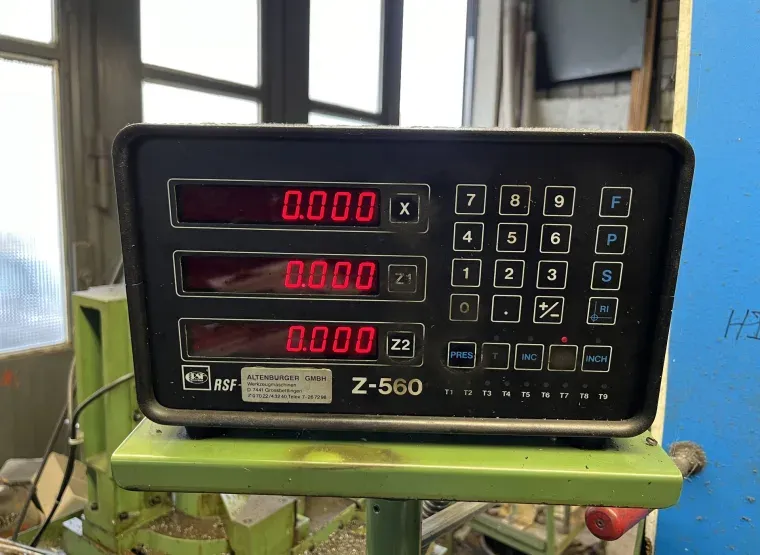

- also with a three-axis digital display from the manufacturer RSF
- Dimensions Total: 1,800 x 800 x 1,600 mm
- Total weight: approx. 1,000 kg
The machine is sold in the course of an industrial auction.
