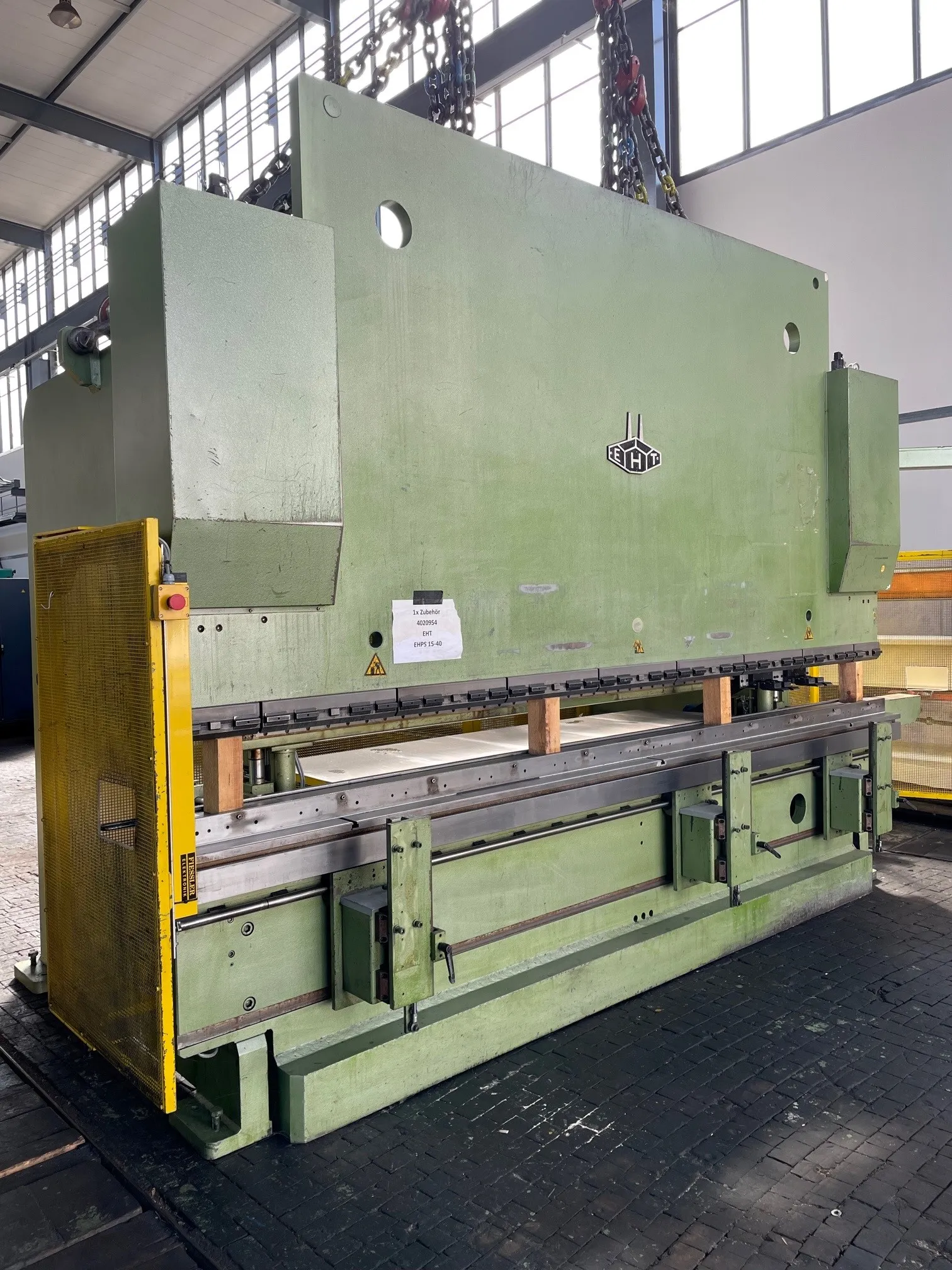

Abkantpresse
EHT
EHPS 15-40
Auf Anfrage
Condition
Gut (gebraucht)
Year of construction
1995
Availability
sofort
Category
Abkantpressen 150-199t Druck
Location
Günzburg, Deutschland
Reference number
4020954
Retailer
Description
Pressure 150 t
Folding length 4050 mm
Stand width 3550 mm

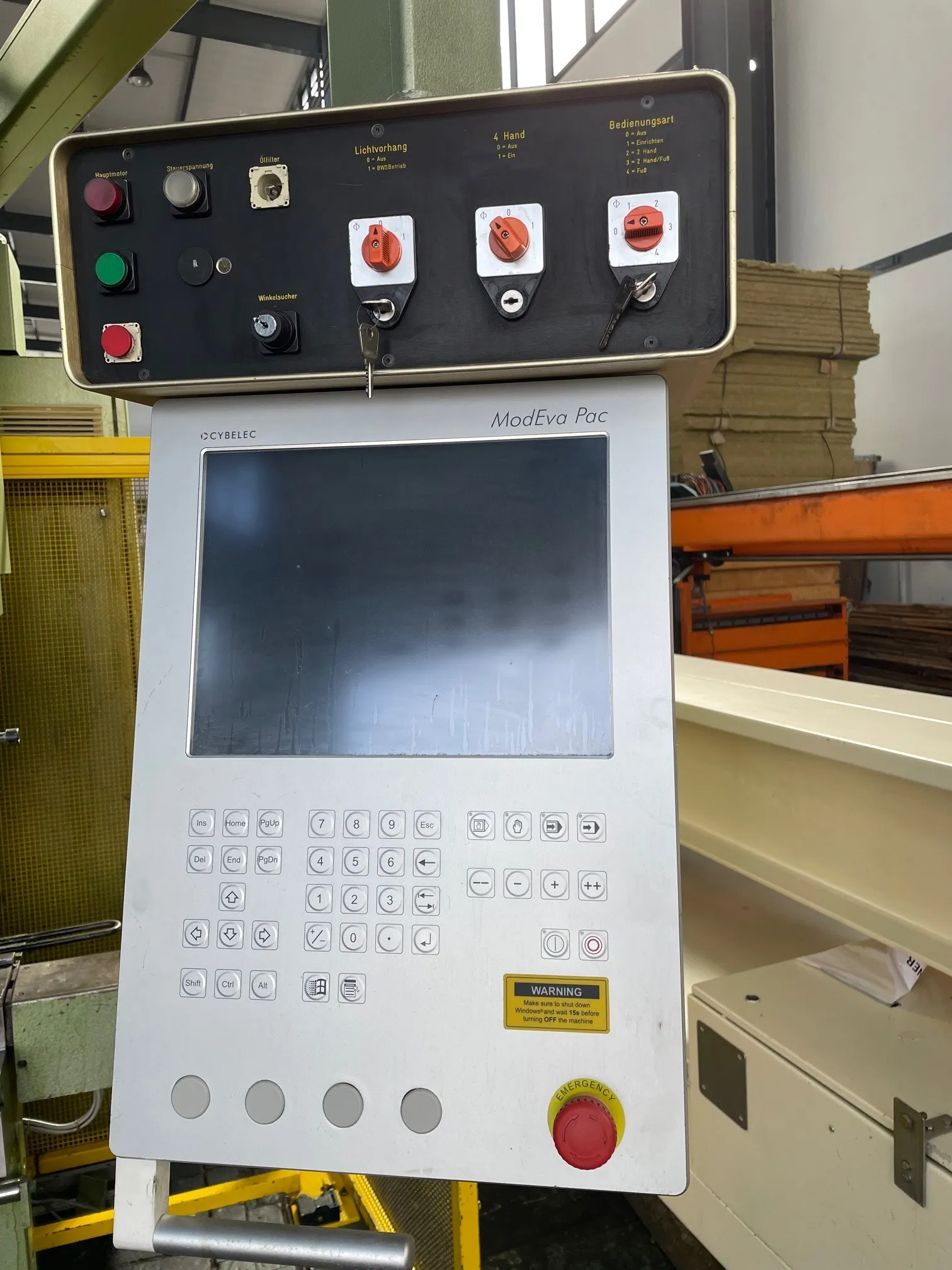

ControlCYBELEC ModEva Pac
Throwout 350 mm
Distance table / ram 430 mm
Table width 250 mm
Stroke250 mm
Total power requirement 18.5 kW
Machine weight approx. 16500 kg
Space requirement approx. 4400x2100x3200 mm
Equipment/Accessories:
- Control conversion at the end of 2018
- electric back gauge 1250 mm
- 10-stage die shift
- Bombing
- Tool holder EHT 26 mm
- Axes controlled: Y1,Y2,X,R

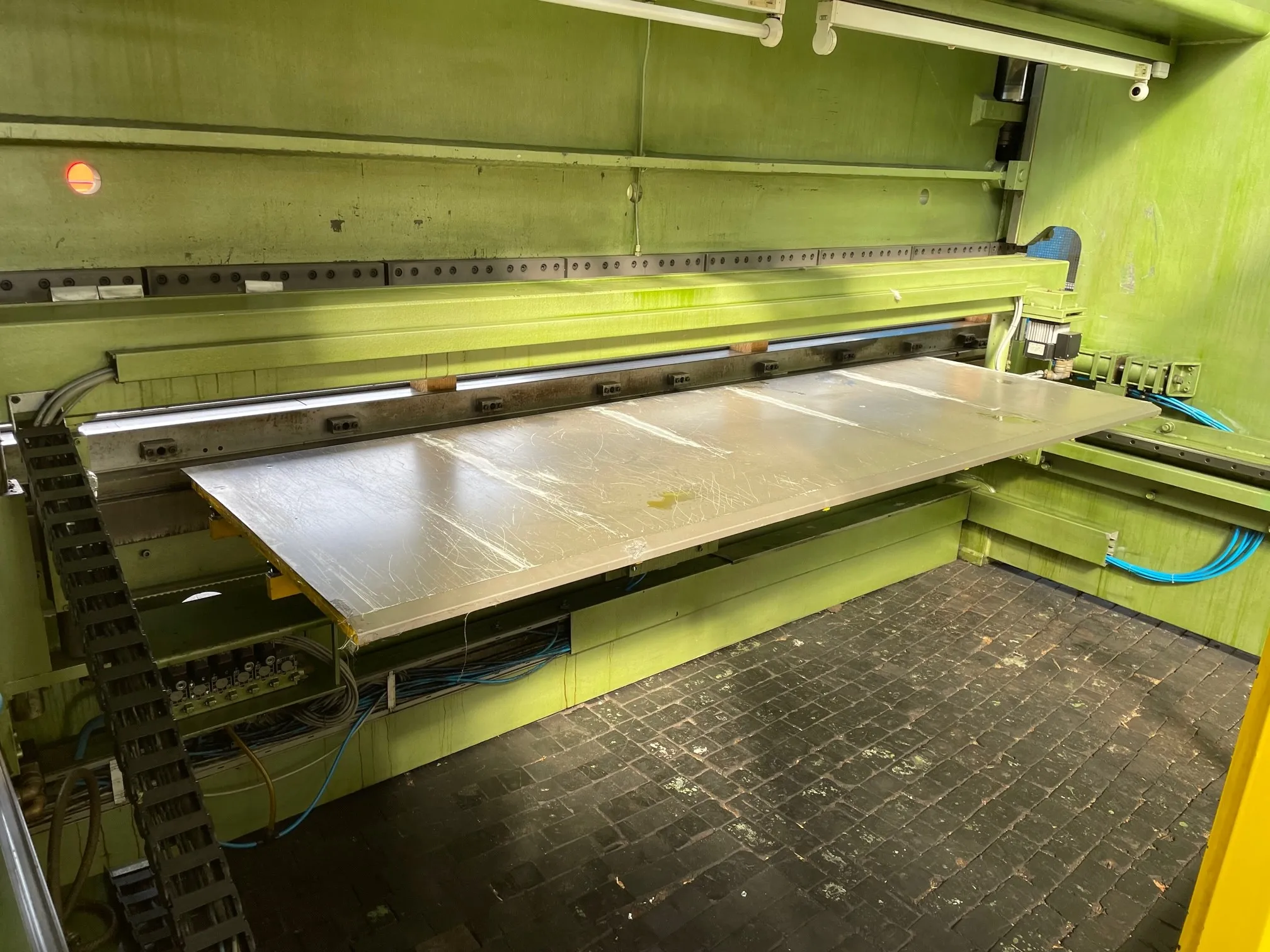

- Sheet metal holding table

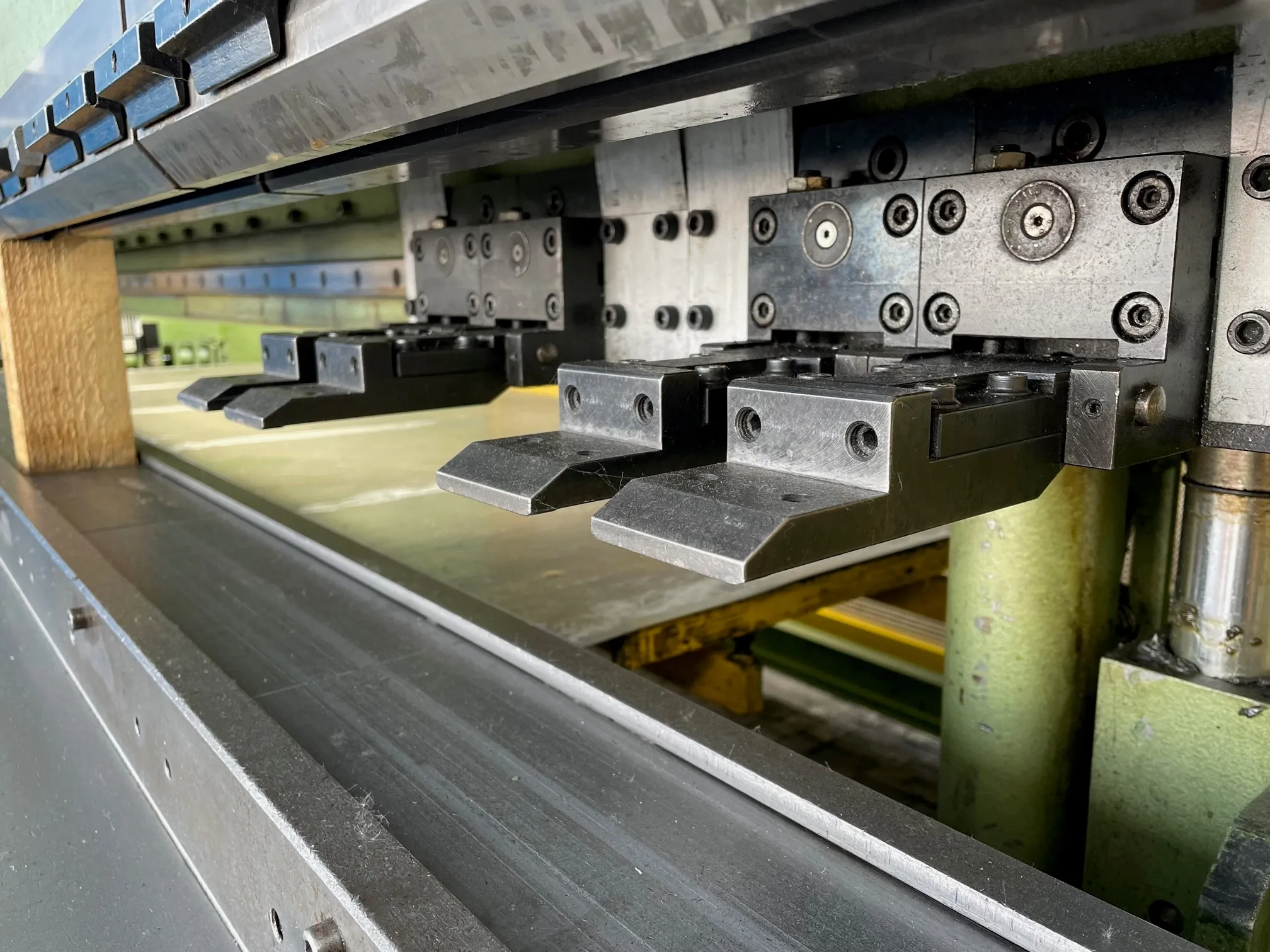

- 4x man. movable stop fingers
- pneum. Upper tool clamping
- Safety light curtain
- 3x height-adjustable support arms
- Oil cooler
- 2-hand foot switch
