Description

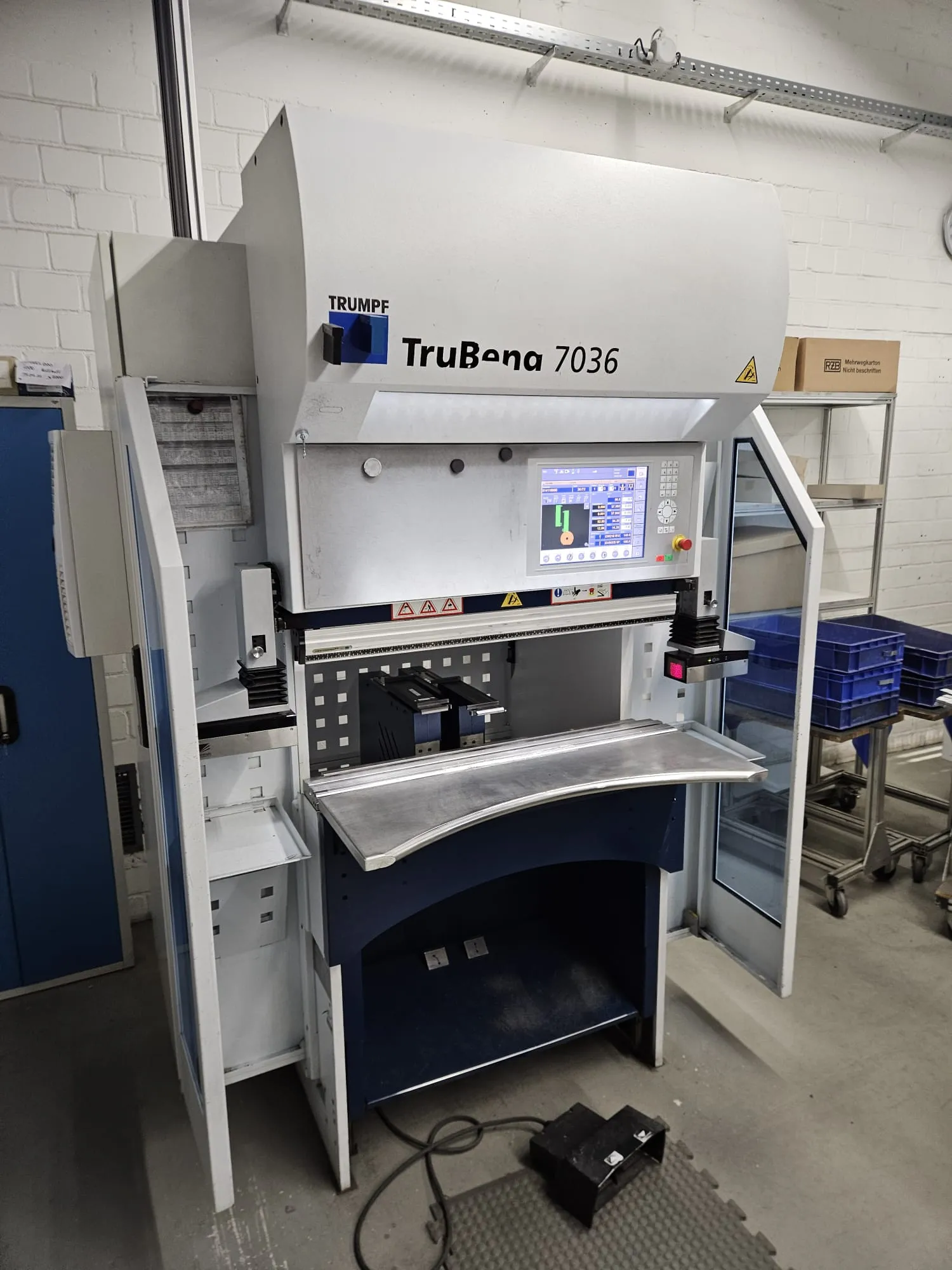

Trrumpf TruBend 7036

Year of construction 2010
Machine hours: approx. 49,500 h

Standard equipment
- Stable machine frame
- Press beam
- Highly dynamic, electronic direct drive (torque motor)
- Inductive length measuring system with temperature compensation
- Control cabinet air conditioning
- Ergonomic machine design

Stop system

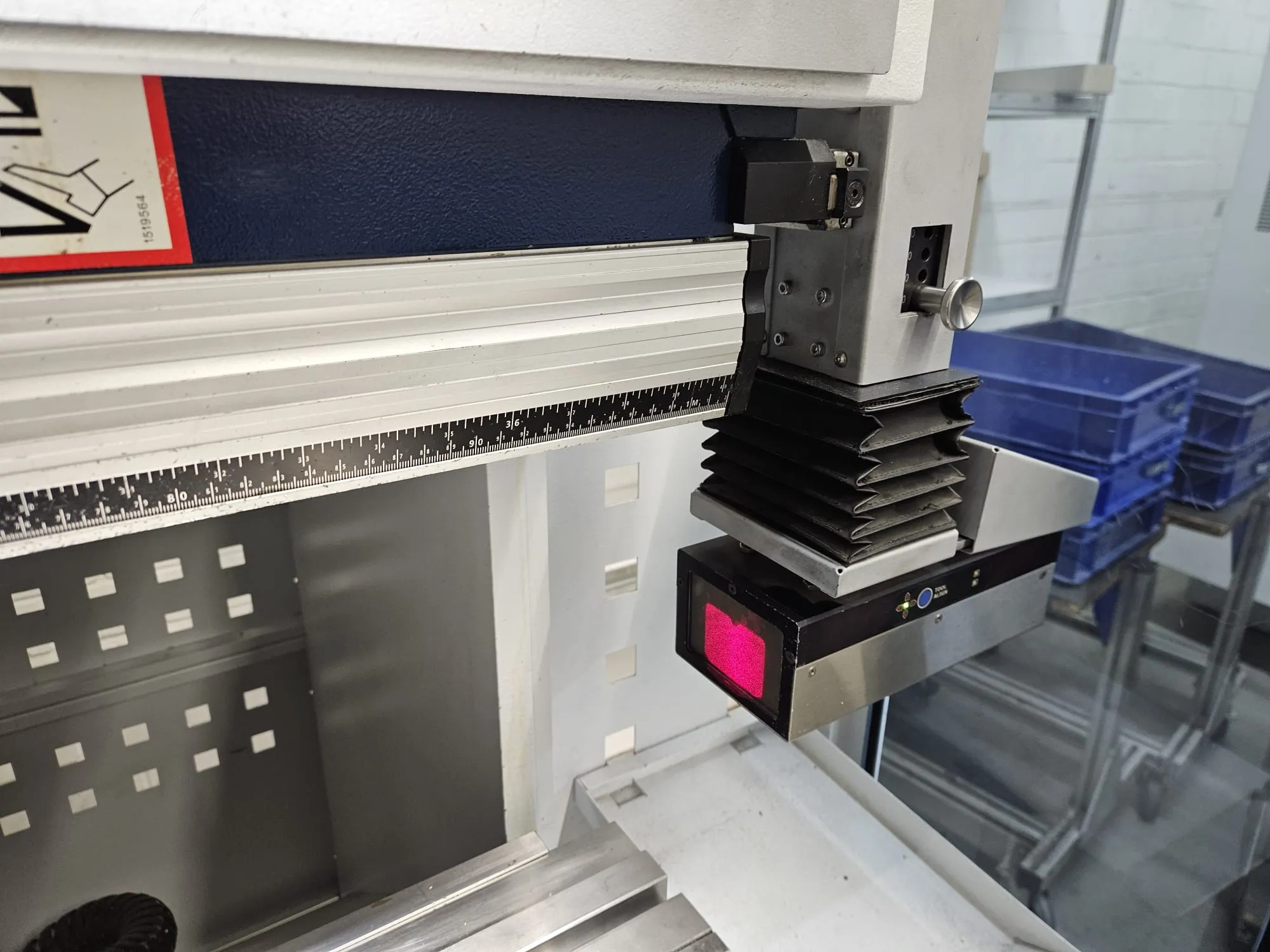

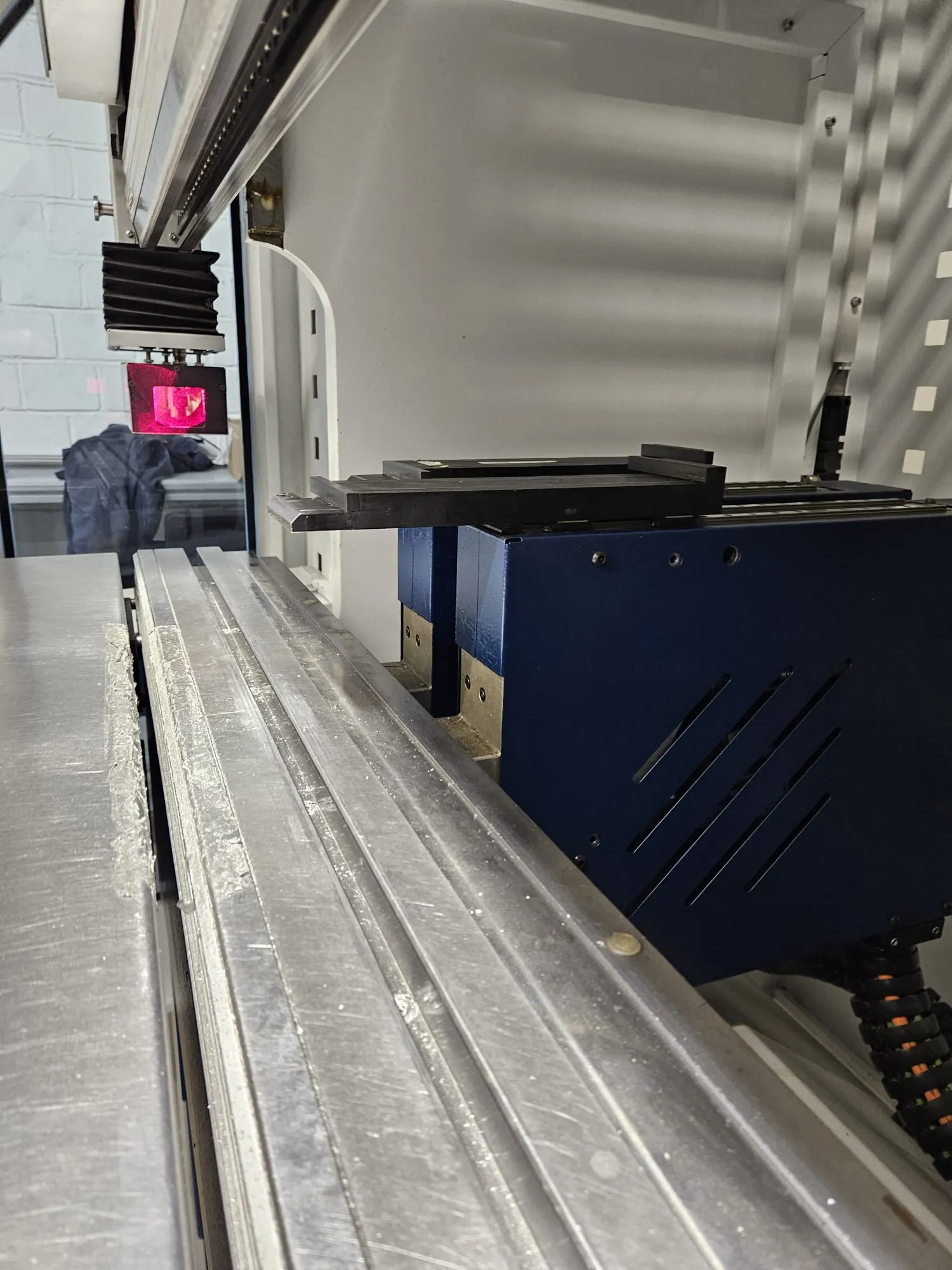

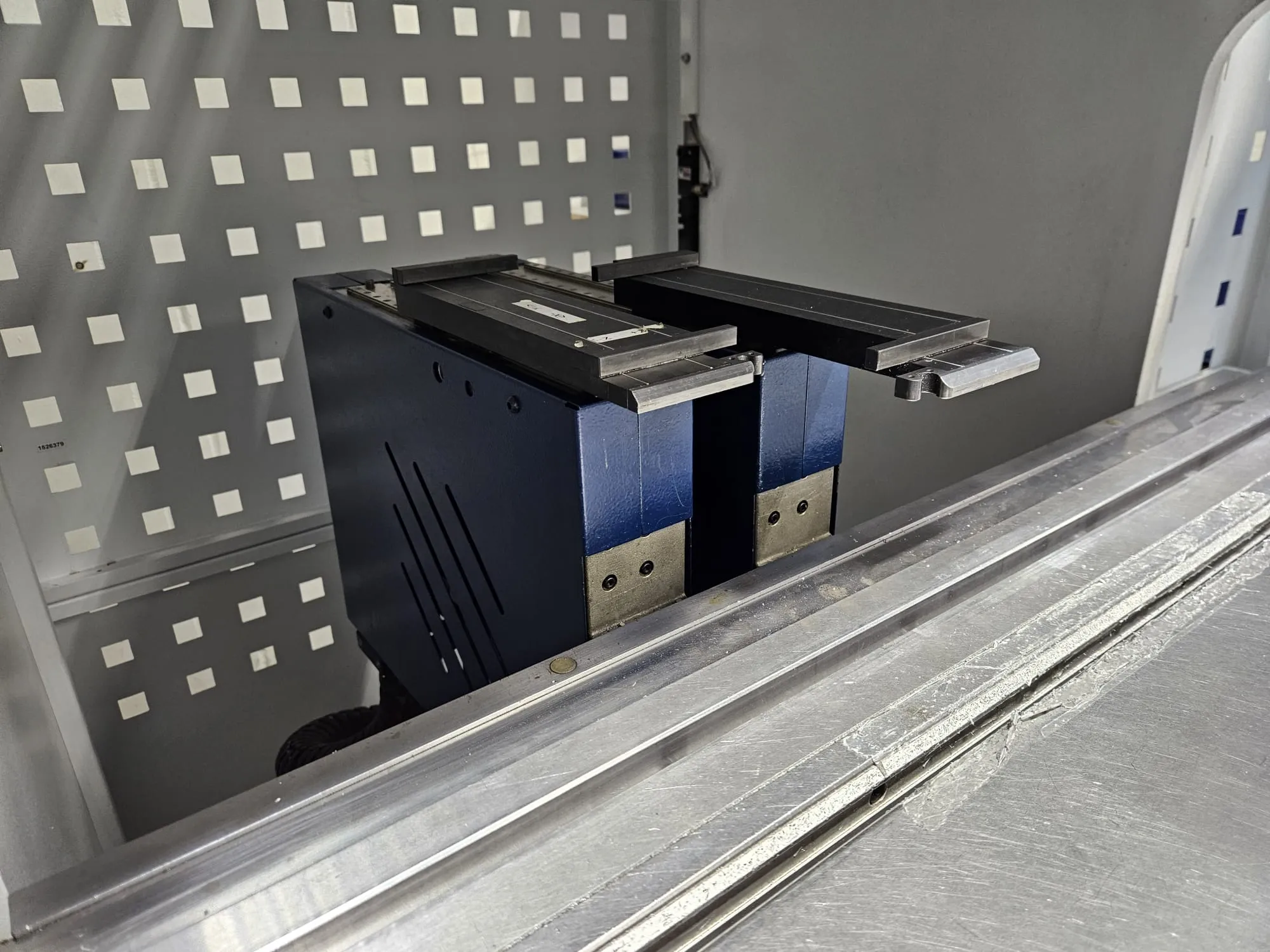

- Back gauge system with 3 axes X1, R1, Z1 axis

Tool clamping
- Upper tool holder, self-centering, manual clamping
- Lower tool holder, manual clamping, hardened

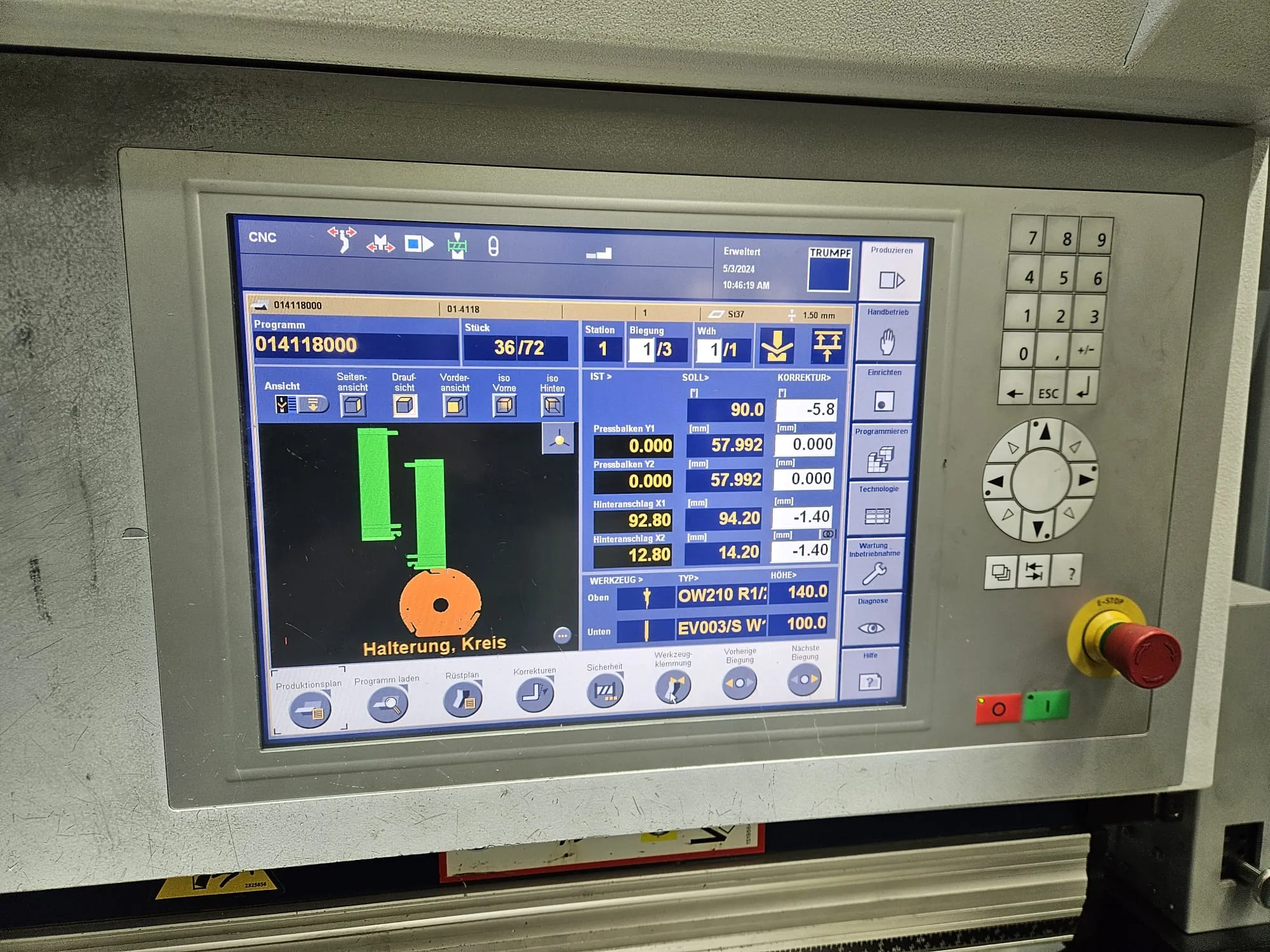

Control
- TRUMPF TASC 6000 integrated
- Teleservice via Internet
- Numerical workshop programming
- Windows XPe (embedded), Pentium M with 1.1 GHz clock frequency
- 1 GB RAM memory
- 15-inch touch screen
- Network capability

Security
- Laterally pivoting protective doors
- Rear protective cover
- 2-button foot switch, for free-standing and seated operation
- CE marking

Additional equipment
- 6-axis backgauge system
- Comfortable support table
- Automatic tool clamping (hardened and central)
