Description

Table length mm
Table width mm
Grinding wheel diameter mm
Total power requirement kW
Machine weight approx. t
Space requirement approx. m

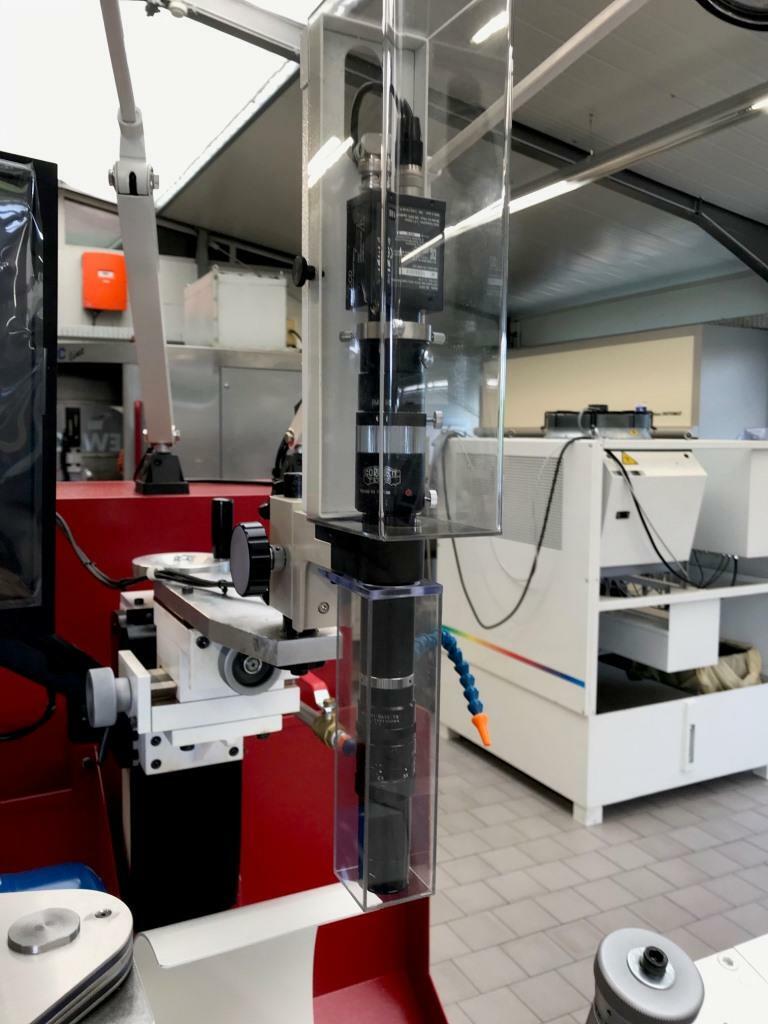

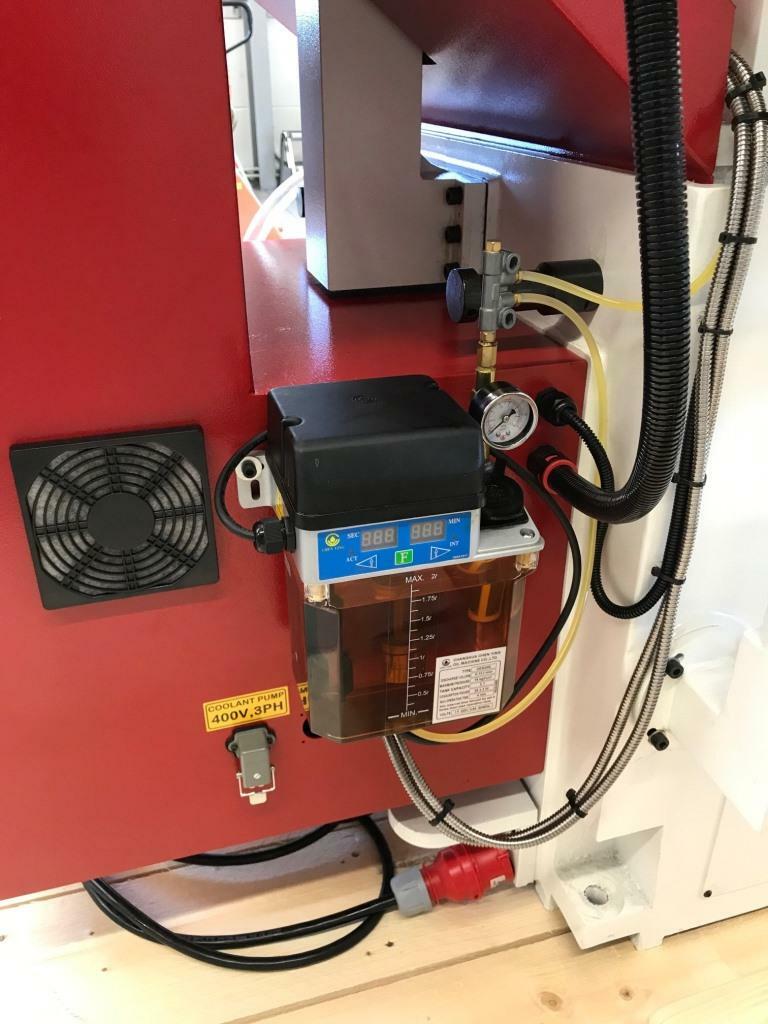

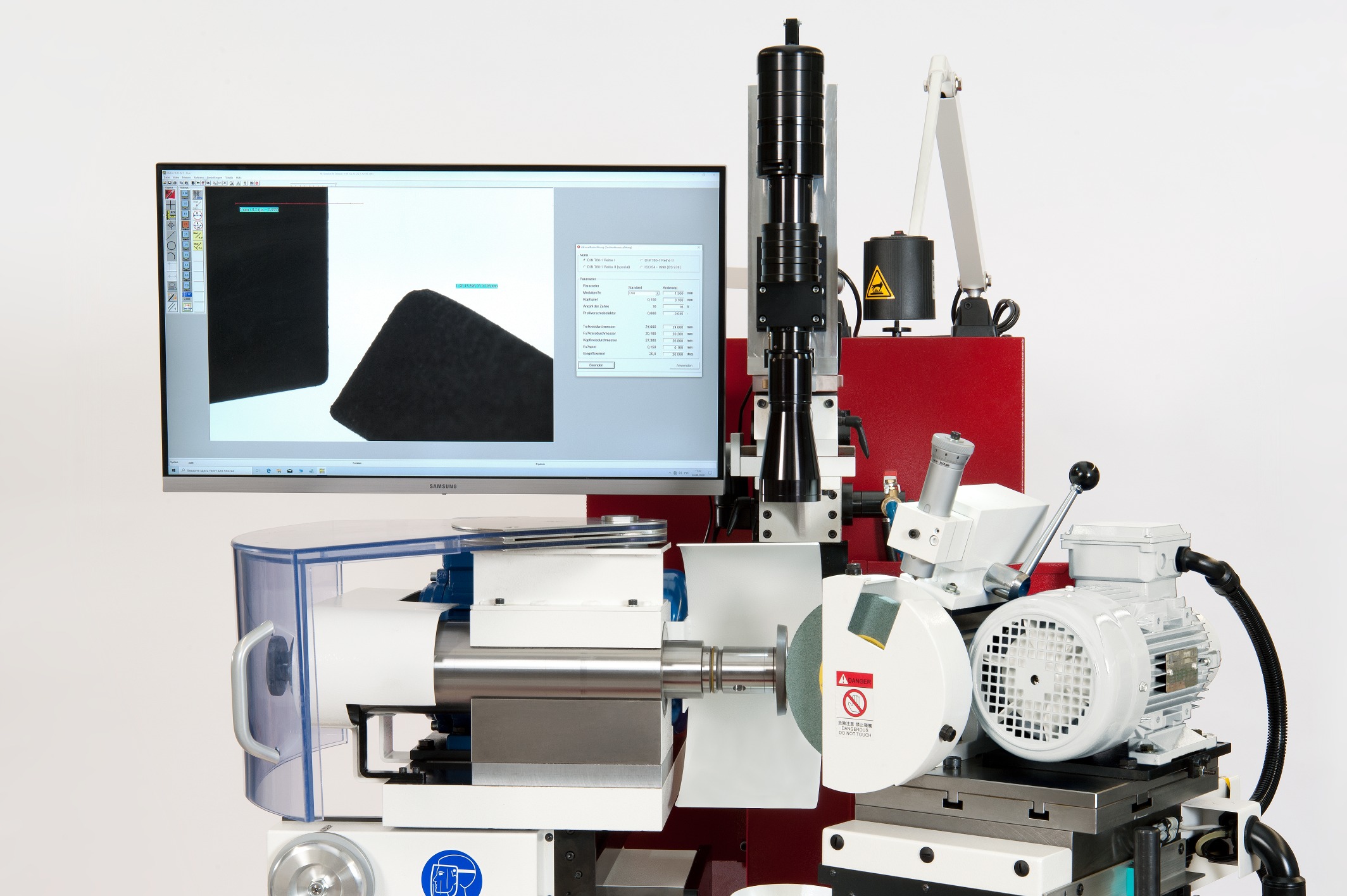

Suitable for dressing and profiling diamond and CBN grinding wheels. Accessories: Motor upgrade (reinforced motors for driving the dressing grinding wheel and the wheel to be dressed), grinding wheel motor, reinforced version with 4 kW, dressing wheel motor, reinforced version with 2.2 kW, 2 machine lights 12 V, glass scale on the linear axes X and Z, 2/3" camera system with 19" LCD monitor (microscope with 15-70x zoom), high-performance angle measuring device (0.05), diamond / CBN disc spindle continuously adjustable 100 - 1000 rpm, rotation speed of the dressing wheel continuously adjustable 200 - 2000 rpm, continuous oscillating stroke speed, automatic central lubrication, SIC manual dressing wheel, protective cover.brTechnical data: grinding wheel holder: HSK 50 E, Diamond grinding wheel diameter 50 - 250 mm, max. grinding wheel width 70 mm, grinding wheel bore diameter 20 mm, speed of the diamond/CBN wheel spindle continuously adjustable 100 - 1000 rpm, grinding motor 4 kW, transverse stroke 200 mm, longitudinal stroke 140 mm, radius of the grinding wheel 0-R30 mm, dressing wheel 180 x 25 x 32 mm, rotation speed of the dressing wheel 200 - 2000 rpm, oscillating speed 3400 mm/1 mm (continuously adjustable), oscillating stroke of the dressing wheel 0-70 mm, connected load of the dressing wheel motor 2.2 kW, weight approx. 900 kg, dimensions 1165 x 1150 x 1950 mm, color white RAL 9003.
