Description

Saw blade diameter mm
Workpiece headstock motor kW
Grinding wheel diameter mm
Total power requirement kW
Machine weight approx. t
Space requirement approx. m

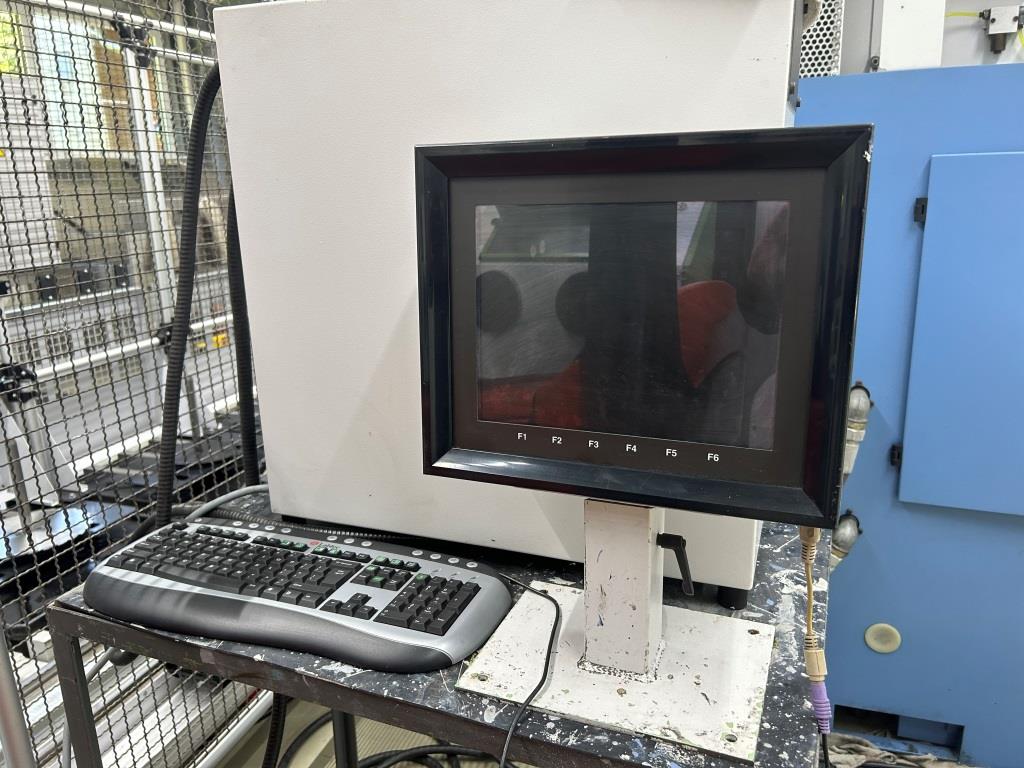

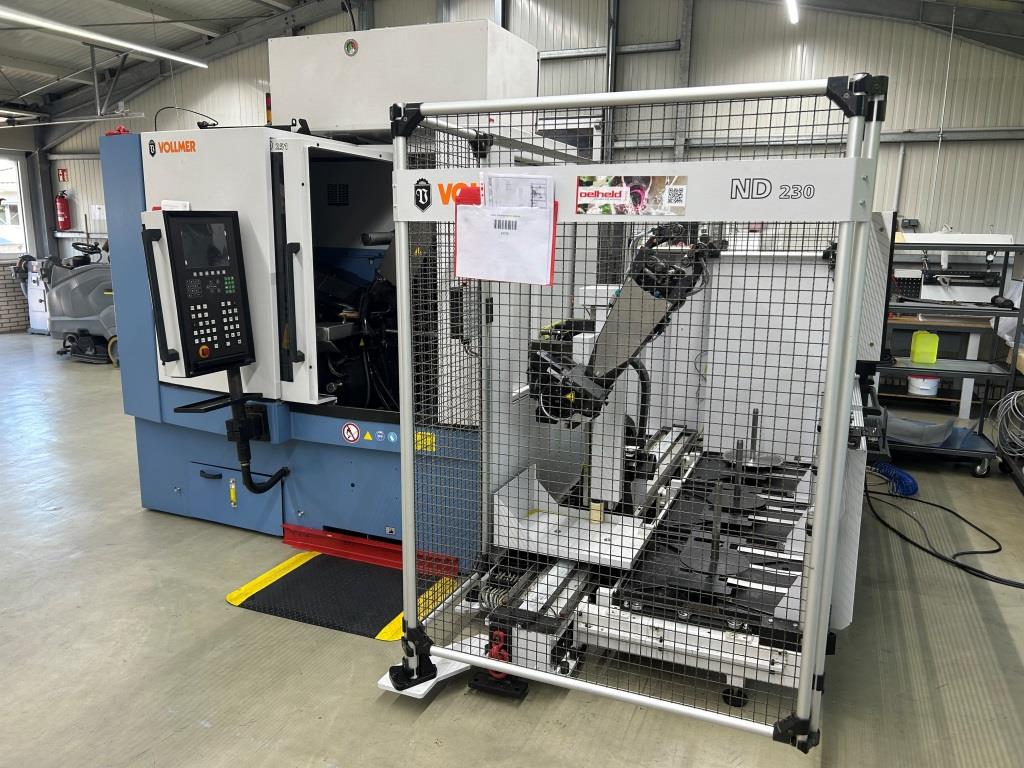

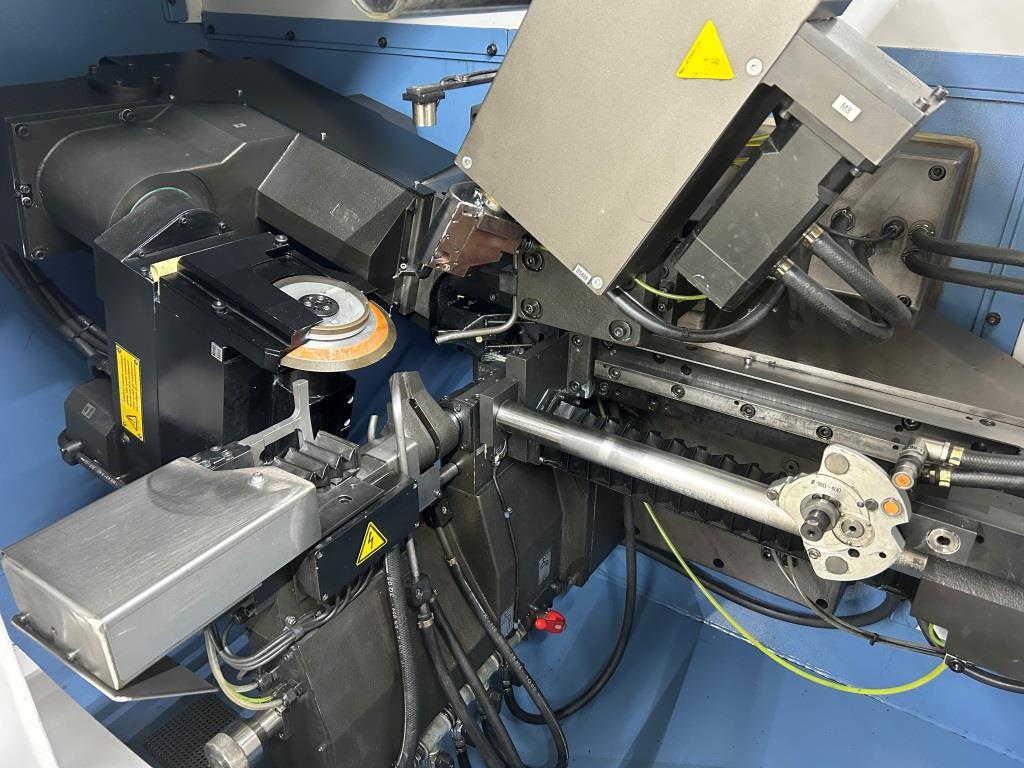

Suitable for automatic grinding of HM circular saw blades on the chest and back in one clamping. All known tooth geometries (flat, alternating, trapezoidal, etc.) can be processed automatically and in one pass. Accessories: Handling system for saw blades ND 230 including data input station and 3 loading trolleys, full cladding, wet grinding device, alphanumeric slide-in keyboard for data management, automatic central lubrication, stepless grinding spindle drive, automatic fire extinguishing device, automatic grinding wheel measuring and compensation device. Extraction N182, oil collecting trays, machine lamp, 1 saw blade holder1 Grinding wheel holder Circular saw blade diameter without robot: 80 - 840 mm Circular saw blade diameter with robot: 100 - 630 mm Circular saw bore diameter without robot: from 10 mm Circular saw bore diameter with robot: with robot from 10 - 180 mm Blade thickness without robot: up to 14 mm Blade thickness with robot: up to 5 mm Tooth pitch: 6 - 120 mm Chip angle: -35 to +40 Clearance angle: 5 - 45 Oblique grinding on the back of the tooth: up to 45 Oblique grinding on the negative tooth face: up to 30 Working speed for breast and back grinding: up to 12 teeth/min., grinding path and grinding speed per processing surface on the tooth: infinitely adjustable Connected load approx.: 4.4 kW (400 V / 50 Hz) Color: Telegrau RAL 7045/7047Dimensions loader L x W x H =: 2316 x 1860 x 2058 mmDimensions machine L x W x H =: 2295 x 1743 x 2050 mmWeight machine: 2000 kgWeight loader: 1450 kg
