Description

Saw blade diameter mm
Workpiece headstock motor kW
Grinding wheel diameter mm
Total power requirement kW
Machine weight approx. t
Space requirement approx. m

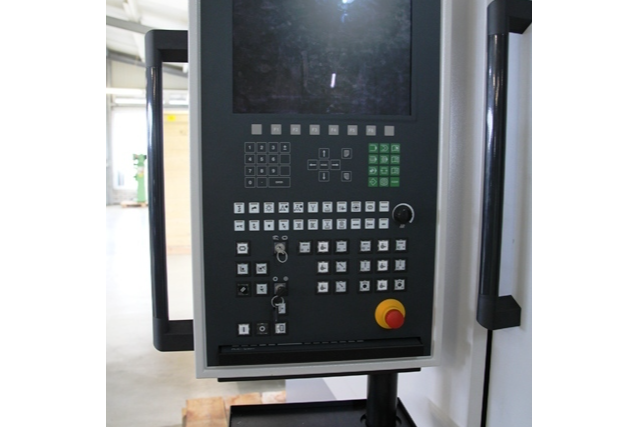

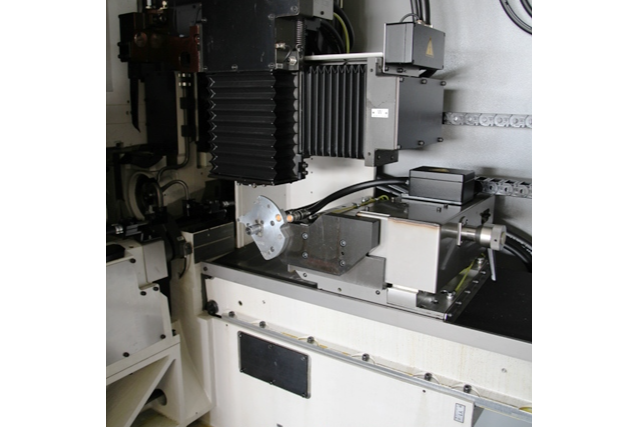

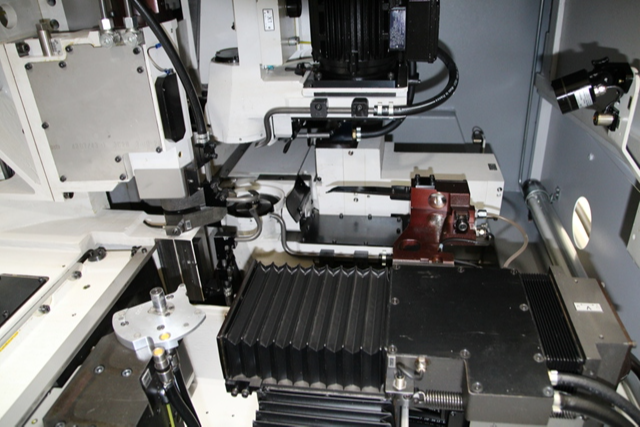

Suitable for automatic, double-sided tooth flank grinding on carbide-tipped circular saw blades. Accessories:Full claddingCoolant systemAutomatic central lubrication.Measuring system for measuring saw blades.Control panel with LCD color display.DNC service.Alphanumeric keyboard.Grinding speed and grinding path depending on tooth surface, freely adjustable.2 grinding wheel holdersCoolant filling level monitoringAutomatic grinding wheel compensationPrepared for robot operation with automatic loading doorOil collecting tray2 x saw blade magnet holder Ø 320mm, Ø 180 mm1 centering ring.brCircular saw blade diameter: 200 - 840 mmCircular saw bore diameter: from 16 mmTooth pitch: 6 - 180 mmGrinding path: up to 25 mmTangential clearance angle: 0 to 10max. Grinding wheel diameter: 125 mmGrinding wheel bore diameter: 32 mmGrinding spindle variable: 1600 - 5500 rpm, connected load approx.: 8 kVA (400 V / 50 Hz)Dimensions W x D x H =: 2770 x 1900 x x 2045 mmWeight: approx. 4700 kgColour: gray
