Description

Total power requirement kW
Machine weight approx. t
Space requirement approx. m

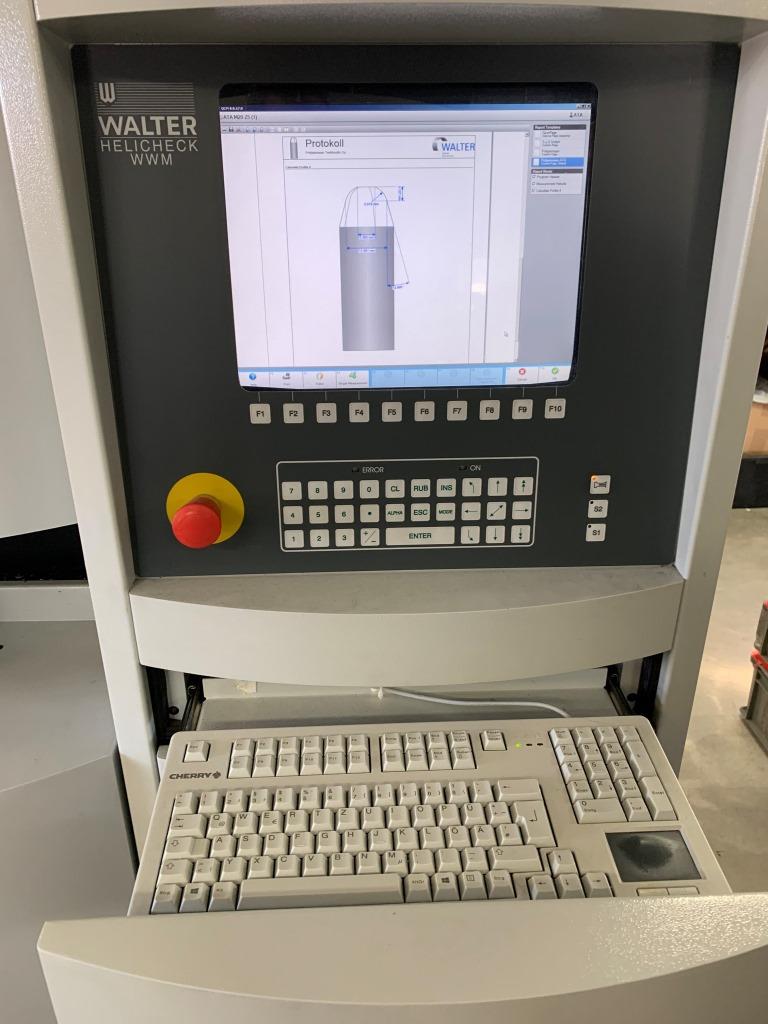

Suitable for fully automatic, non-contact measurement of all types of cutting tools. Both reflected light and transmitted light measurements can be carried out using 2 CCD matrix cameras. For example, diameter, linear and angular mass as well as spiral angle, spiral length, clearance angle, rake angle, chamfer widths, etc. can be determined. AccessoriesPneumatic workpiece clamping,WINDOWS 7 PC + QCM 8.0 Vialogic TIM teach-in mode,Software package 1 (cylindrical tools with sharp edges, corner and full radius),Software package 2 (conical-spiral tools with sharp edges, corner and full radius),Vialogic Viascan,QCM NetworkLightControlDeviceGlass scales on the linear axes.:brTravel path X-axis: 200 mm Travel Y-axis: 350 mm Travel Z-axis: 250 mm Speed A-axis: 60 rpm Workpiece holder: ISO 50 Workpiece diameter: 3 - 200 mm Workpiece length: max. 300 mm Workpiece weight: max. 40 kg Connected load: approx. 2kW (230 v / 50 Hz) Dimensions W x D x H: 1245 x 1900 x 1470 mmWeight: approx. 2400 kgColour: light gray RAL 7035
