Description

Saw blade diameter mm
Workpiece headstock motor kW
Grinding wheel diameter mm
Total power requirement kW
Machine weight approx. t
Space requirement approx. m

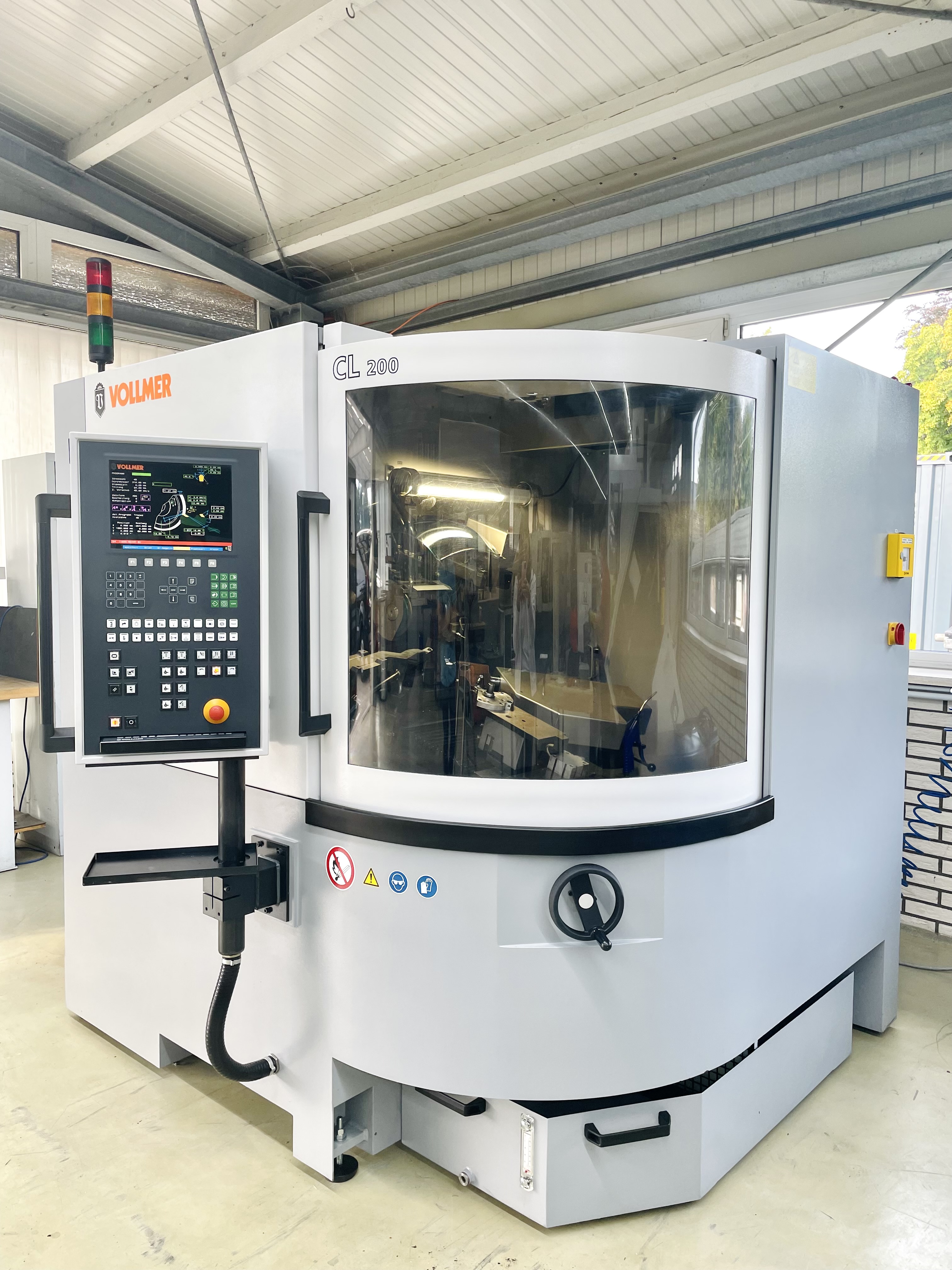

Suitable for automatic grinding of tooth face, tooth back and master blade on carbide-tipped circular saw blades in one clamping. All known tooth geometries (flat, alternating, trapezoidal, etc.) can be ground automatically and in one pass. Accessories: full casing, equipment for grinding with oil cooling, automatic fire extinguishing device, alphanumeric slide-in keyboard for data management, machine light, suction, measuring probe. Grinding wheel diameter chip surface processing: chip surface processing 140 - 155 mm Saw diameter: 80 - 840 mm Bore diameter: from 10 mm Blade thickness: 8 mm Tooth pitch: 6 - 120 mmCutting length: 20 mmCrake angle for hollow face: -10 to 25Clear angle: 0 - 30Working speed: approx. 12 teeth/min., Grinding wheel diameter: Open surface machining 120 - 155 mmGrinding pin diameter for hollow face machining: 5 - 8 mmDrive power main spindle variable: 2400 - 5000 rpm, coolant volume: 150 lConnection value approx.: 5 kVADimensions W x D x H approx.: 1725 x 1990 x 1950 mmWeight approx.: 2600 kgColour: RAL 7045 telegrey 1 / RAL 7047 telegrey 4
