Description

Total power requirement kW
Machine weight approx. t
Space requirement approx. m

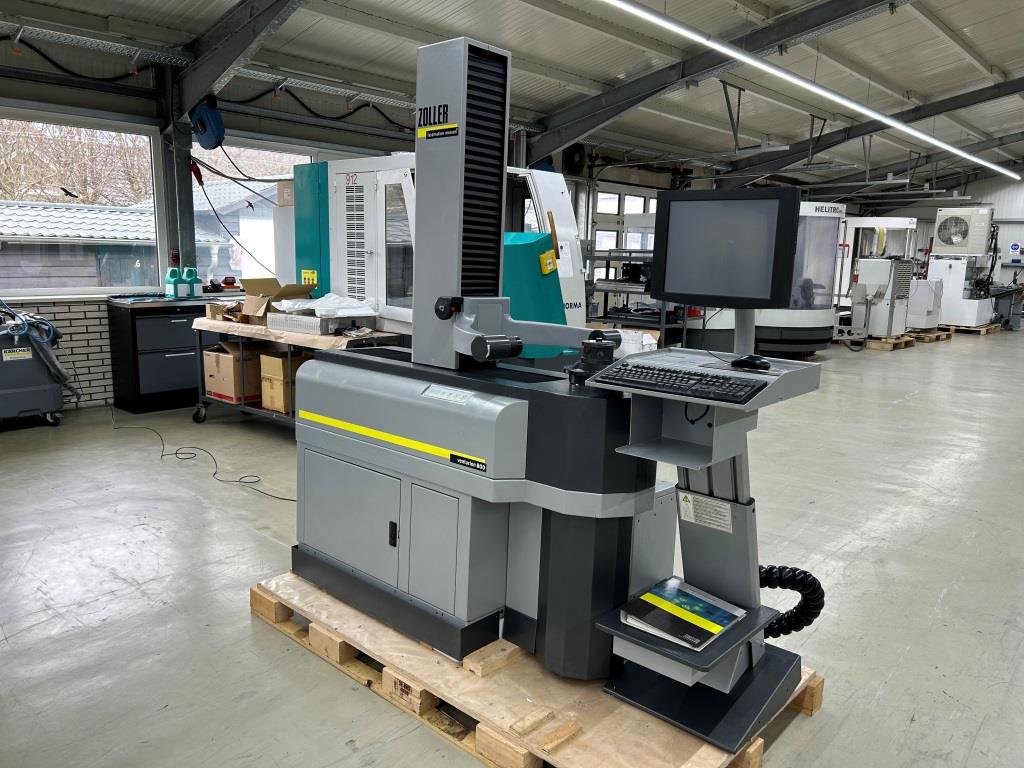

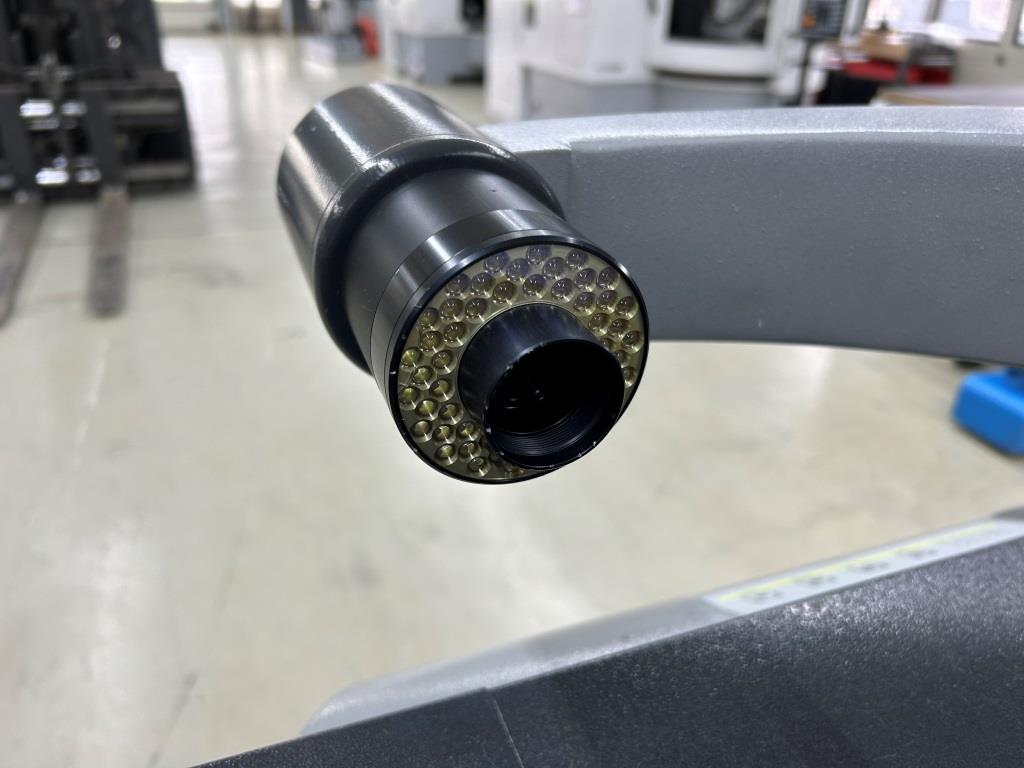

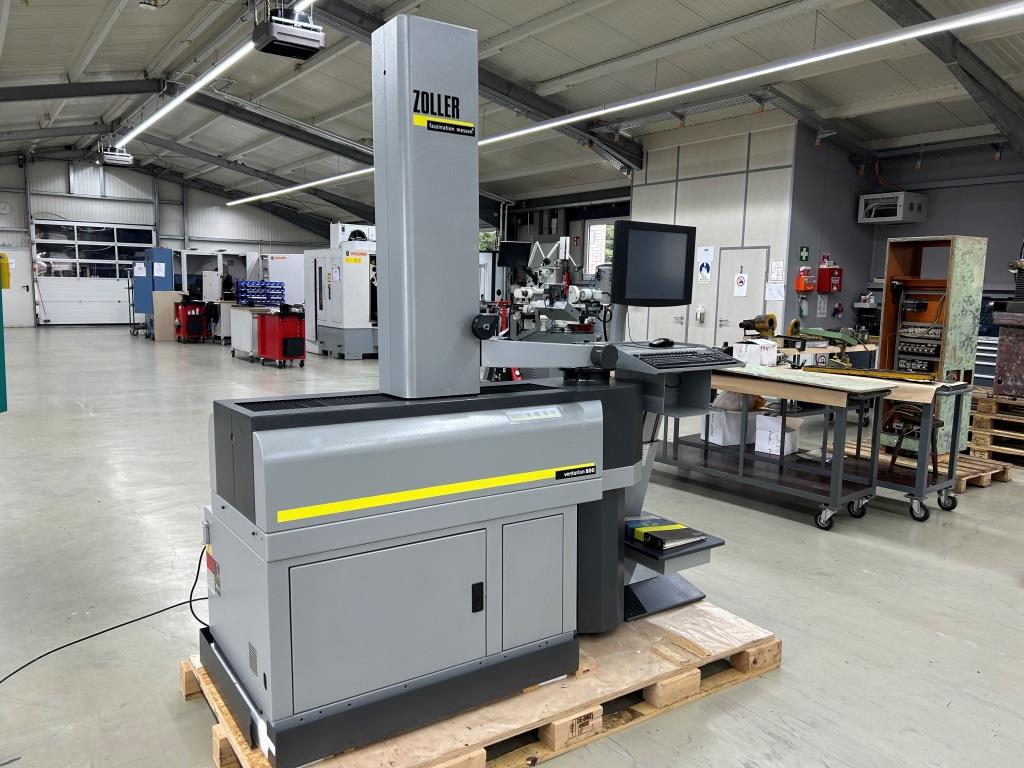

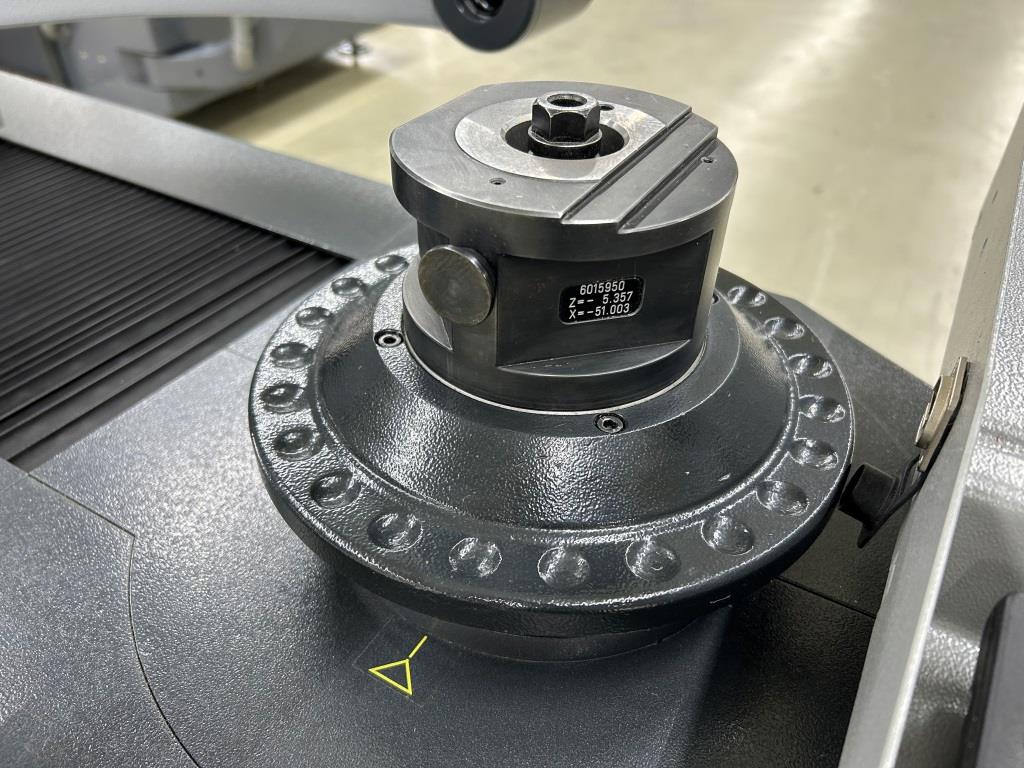

Suitable for measuring and presetting all types of cutting tools as well as for measuring grinding wheel packages. The extensive and comprehensive software solution with intuitive graphical user guidance guides users quickly and safely to precise measurement results. Accessories: Upgrade to ZOLLER measuring device control "pilot 4.0" with 17" monitor, Autofocus/venturion 800, rotation encoder (ROD =) for high-precision position determination, tool inspection (incident image processing with centered LED lighting), high-precision spindle "ACE" concentricity 0.002 mm, standard tool management, FORED 'manual measuring programs, 3 used. Attachment holder.brTravel Z-axis: 800 mmTravel X-axis: 200 mmWorkpiece diameter: max. 1000 mmWorkpiece length: max. 800 mmMax. Jaw gauge diameter: d = 200mm Workpiece holder: SK 50 Tool weight: max. 10 kg Repeat accuracy: +/- 0.002 mm, display accuracy: 0.001 mm Concentricity: 0.005 mm Connection value: 230 V / 50 Hz Compressed air connection: approx. 6 bar Dimensions W x D x H: 2400 x 1650 x 2250 mmWeight: approx. 600 kgColor: silver gray / anthracite
