Description

Total power requirement kW
Machine weight approx. t
Space requirement approx. m

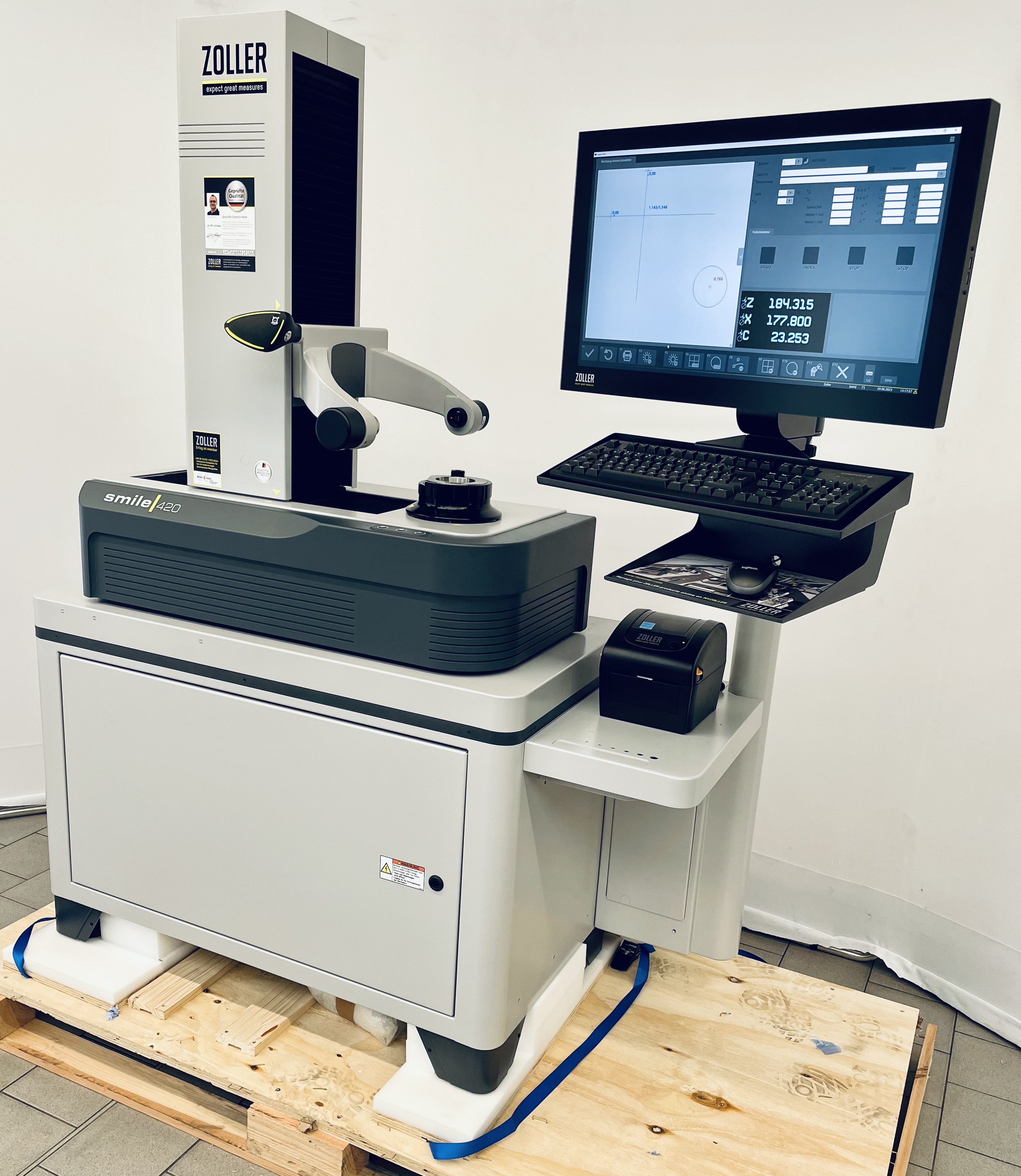

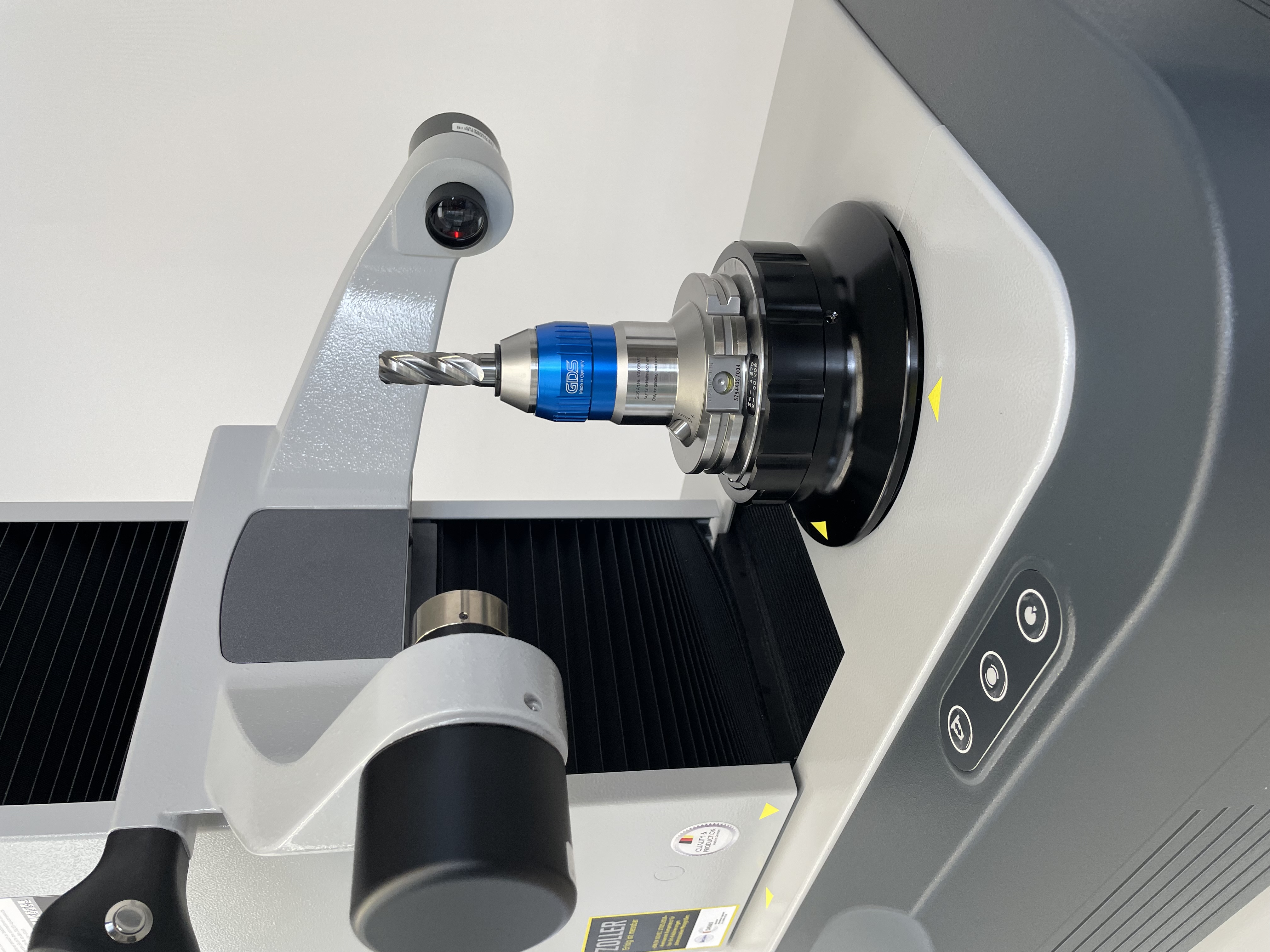

Suitable for manual and automatic measurement of all types of cutting tools as well as grinding wheel packages. The Zoller imaging and camera system enables quick, operator-independent measurement of all tool edges. Accessories:ZOLLER measuring device control »Pilot 4.0« Panel PC with 24 "multi-touch displayIndustrial computer with operating system Windows 10 64-bitHigh-precision spindle SK 50 (concentricity 0.002 mm, spindle brake)Autofocus (CNC drive in the C-axis for operator-independent cutting edge focusing and automatic measurement of multi-cutting tools)Rotation encoder (ROD) for high-precision Position determination in the C-axisSoftware Pilot 4Monitor holder for Zoller measuring device control, mouse and keyboard shelfUnder-table systemMaintenance unitThermal label printerbrTravel path Z-axis: 420 mmTravel path X-axis: 200 mmWorkpiece diameter: max. 420 mmWorkpiece length: max. 400 mmMax. jaw gauge diameter: d = 100mmWorkpiece holder: SK 50Tool weight: max. 10 kgRepeat accuracy: +/- 0.002 mm,Display accuracy: 0.001 mmConcentricity: 0.005 mmConnection value: 230 V / 50 HzCompressed air connection: approx. 6 barDimensions W x D x H: 1300 x 625 x 1600 mmWeight: approx. 200 kgColour: silver gray / anthracite
