BLECHBIEGEMASCHINE – 4 WALZEN, AK-BEND AHS 20/10
ABA
AHS 20/10
Auf Anfrage
Condition
Neu
Year of construction
2024
Availability
sofort
Category
Rundbiegemaschinen motorisch 6,1 - 14mm Blechstärke
Location
Günzburg, Deutschland
Reference number
4040214
Retailer
Description
TECHNICAL DATA
Sheet width 2100 mm, sheet thickness 13 mm, bend 10 mm, top roller diameter 230 mm, bottom roller diameter 210 mm
DESCRIPTION :
Accessories/equipment:
– Conical bending device
– induction hardened rollers
– digital display for side rollers
– Machine made of steel construction

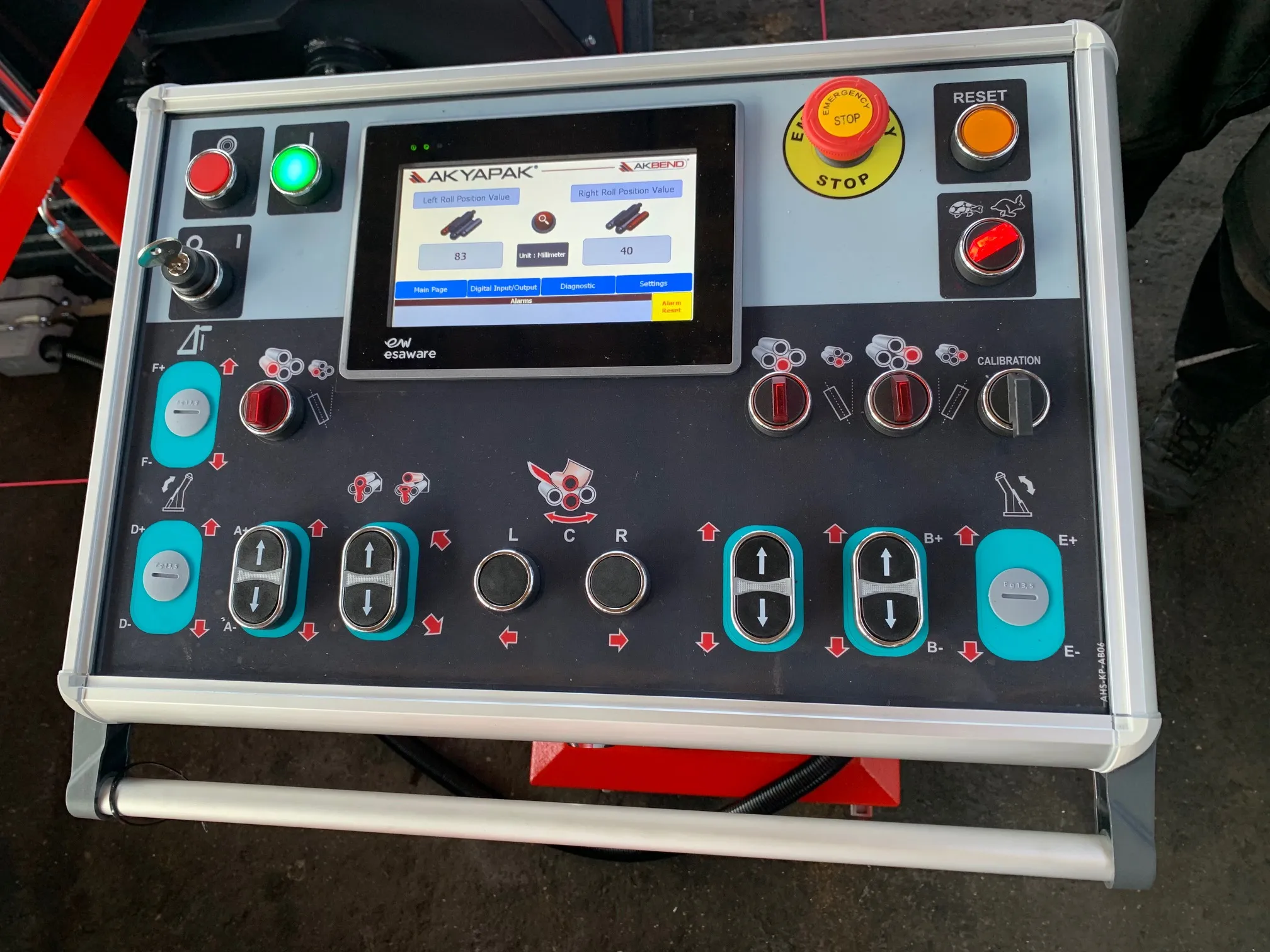

– Separate control panel
– two speeds
– all rollers on ball bearings
– Folding and support bearing of the top roller is operated from the control panel.
When the folding bearing is opened, the roller automatically moves up.
– conical adjustment of the rollers via control panel
– Central rollers are operated via hydraulic motor and epicyclic reduction gear
driven. (Top and bottom rollers)
– Calibration
