Description

Sheet width 1550 mm
Sheet thickness 3 mm
Total power requirement 3 kW
Machine weight approx. 1600 kg
Space requirement approx. 2,060 x 1,140 x 1,210 mm

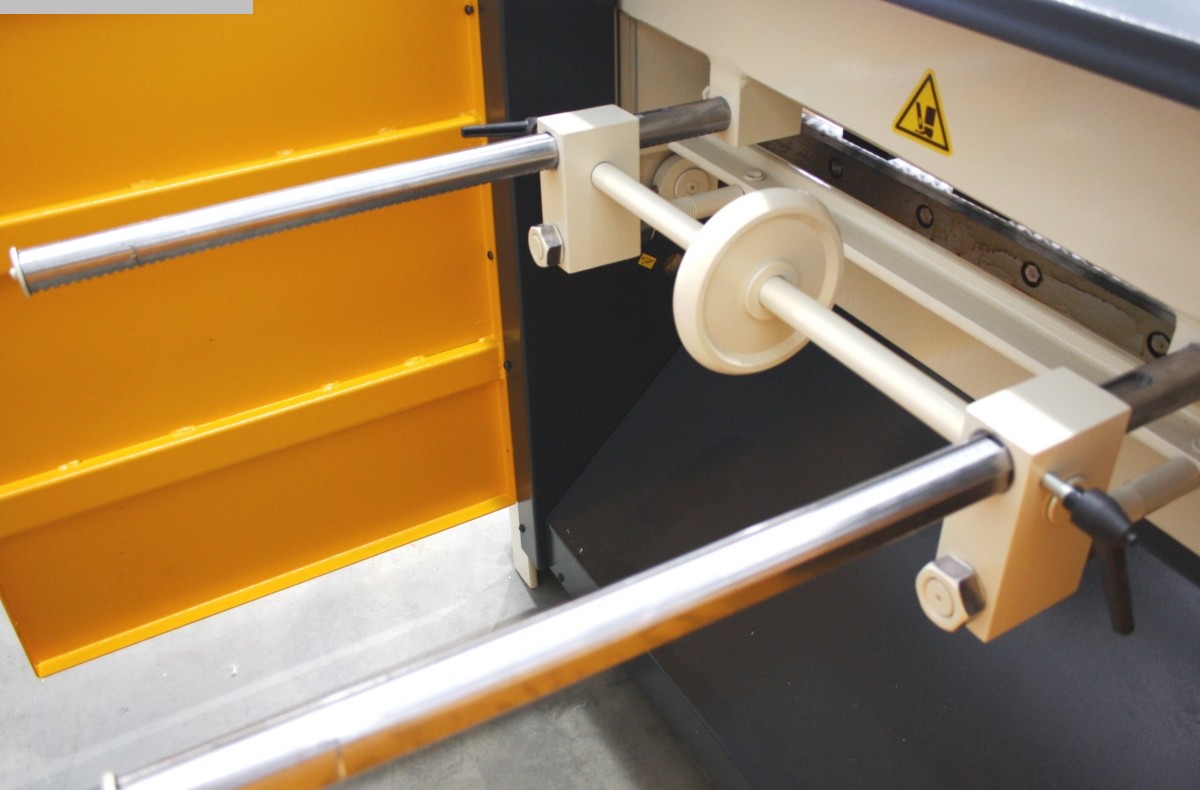

Manufacturer: OSTAS Type: RGM 1550x3 Year of construction: new Max. working length: 1,550 mm Cutting capacity: 3 mm Shear angle: 230' Strokes per minute: 35 d/d Motor power: 3 kW Table width: 510 mm Table height: 820 mm Backgauge distance: 500 mm Machine dimensions (LxWxH): 2,060 x 2,140 x 1,210 mm Weight: approx. 1,600 kg Additional information: • Manual back gauge with 500 mm stroke • Angle arm with T-slot, stopper and ruler • Foot pedal • Front holding arms for workpieces • Cutting line lighting • Protective boundaries optional: • Cutting unit counter • Motorized back gauge with 500 mm stroke • Backgauge with NC control • Pneumatic lifting device • Optical safety bar • 0-180 angle cutting
