Description

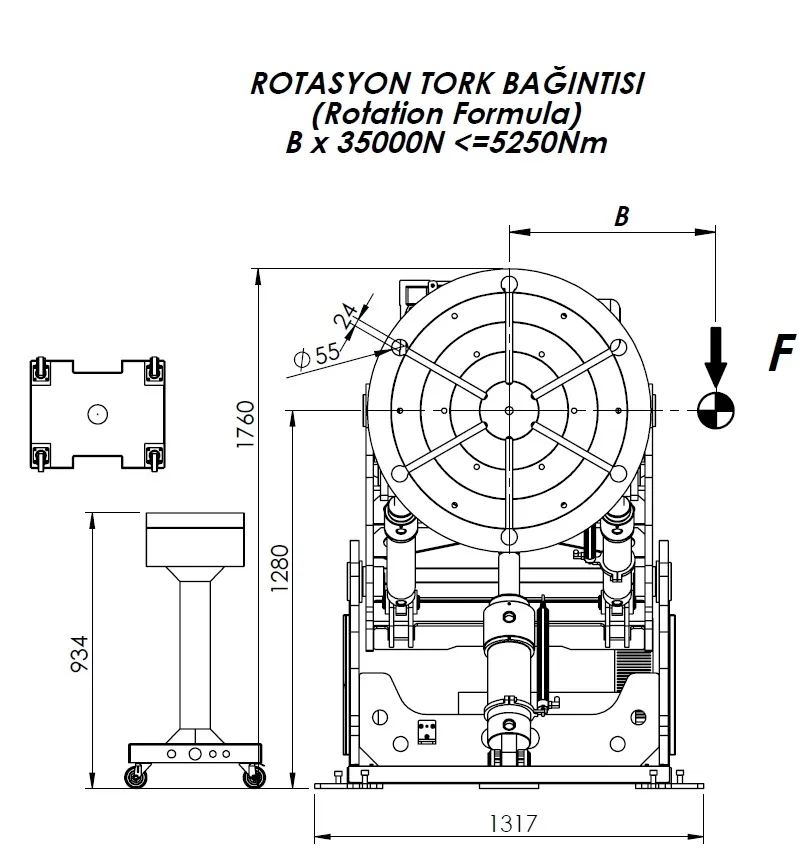

TECHNICAL DATA

Table diameter 960mm Table load 3,500 kg Front load center (A) 150 mm Side load center (B) 150 mm Rotation speed 0.1 - 0.9 rpm

DESCRIPTION

Equipment:
– Adjustable speed
– Remote control with 5 meter cable length
– Digital speed display on the control panel to monitor rotation
– Welding – Grounding mechanism (grounding and clamping devices)
– Motors with brake
– Mechanical angle display (for tilting)
– Programmable automation controller to record and retrieve the
   Rotation speed, the number of tours, the time and the number of
   repeating cycles
