Description

TECHNICAL DATA

I-steel - flat 80x20 (d1200) mm, I-steel - upright 80x25 (d2100) mm, angle steel 50x50x6 (d1000) mm, solid material - diameter 40 (d800) mm, square material 60x60x3 (d4000) mm

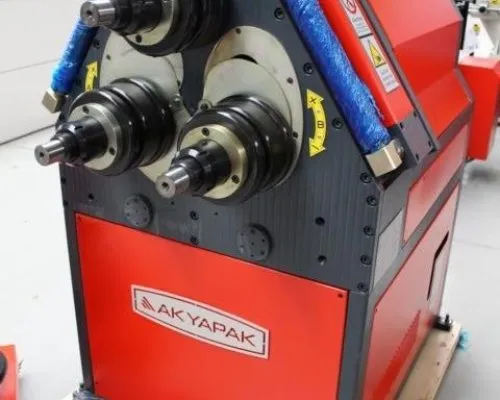

DESCRIPTION

Equipment:
– Machine made of steel structure (ST-52)
– powered by hydraulic motor and gearbox
– Shafts made of special steel (42CrMo4), hardened and ground

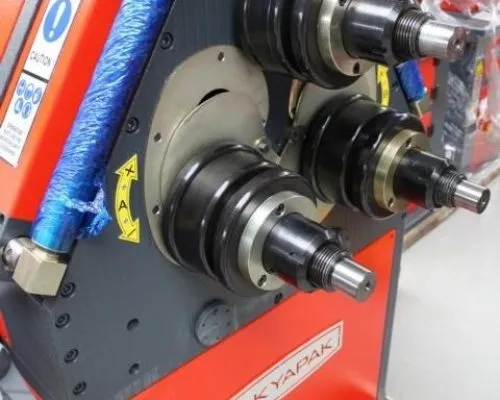

– Set of standard rollers
– Lower rollers can be moved up and down hydraulically
– Digital display for lower rollers
– Separate control panel
– Side straightening rollers manually adjustable in one direction
– Manual lubrication
– Horizontal and vertical working methods
– Operating instructions
