Description

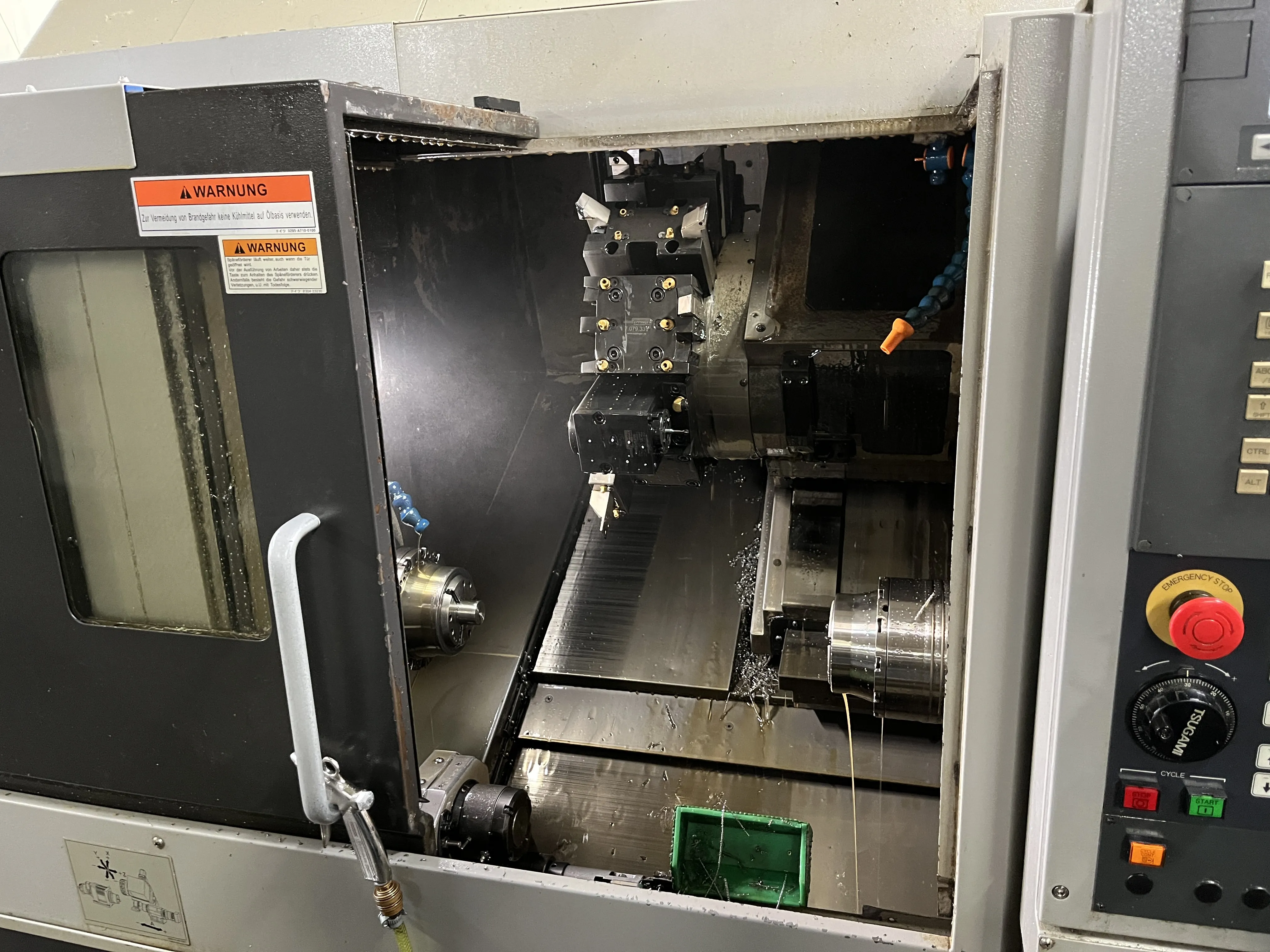

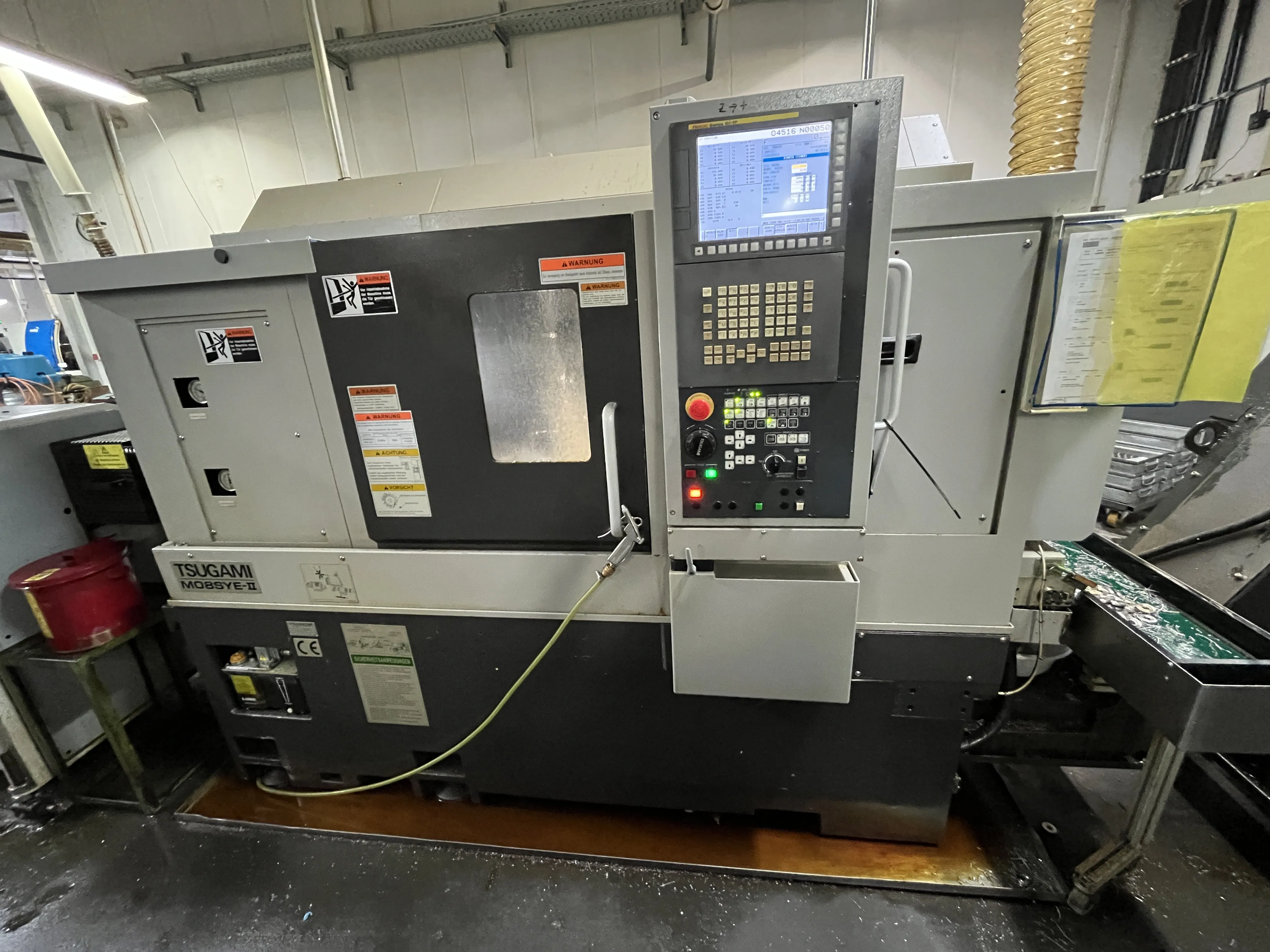

CNC rotary machine

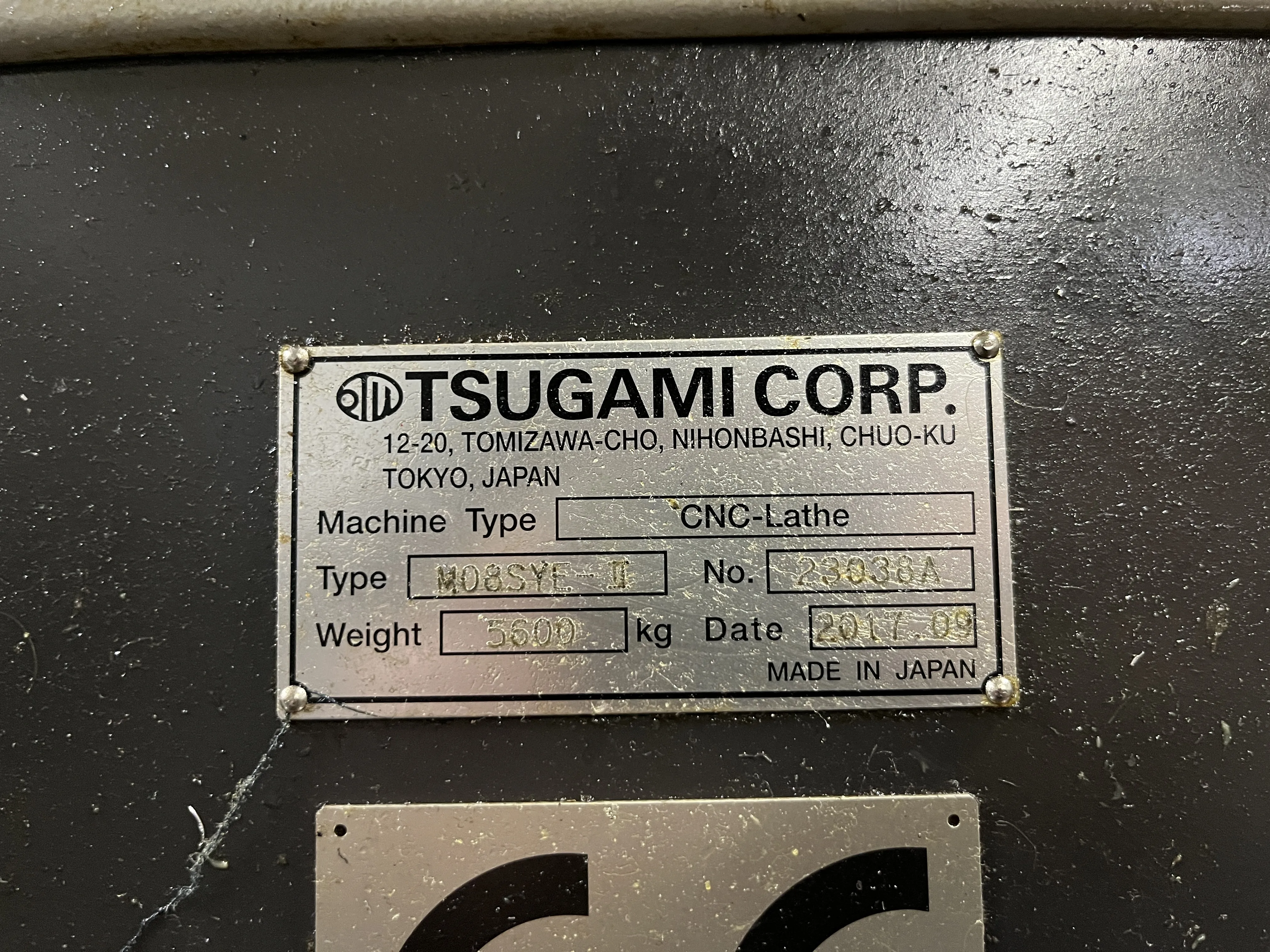

• manufacturer: Tsugami
• Type: M08SYE-II
• year of construction: 2017
• machine number: 23038a
• Control: Fanuc Series Oi-Tf
• max. Processing diameter: 280 mm/65 mm
• max. Processing length: 380 mm
• max. Main spindle speed: 4500 rpm
• main spindle area: JIS A2-6
• Main pindle survey: 73 mm diameter
• main spindle warehouse: 100 mm diameter
• main spindle engine: 7.5/11 kW
• Number of stations on the revolver: 12
• Outdoor tools/drilling holder:
• Billing diameter: 25/40 mm diameter
• max. Code of reciprocal speed: 4500 rpm
• counter -spindle area: 140 diameter, flat
• counter -spindle survey: 59 mm diameter
• counter -spindle bearing: 80 mm diameter
• counter spatula: 6 inches
• counter -spindle engine: 5.5/7.5 kW
• max. Speed ​​for driven tools: 5000 rpm
• Travel X/Z: 221/400 mm
• Mobile A/Y: 506/-/+50 mm
• urgent speed x/z:
• x: 24 m/min
• z: 27 m/min
• Retirement speed A/Y: 30/12 m/min

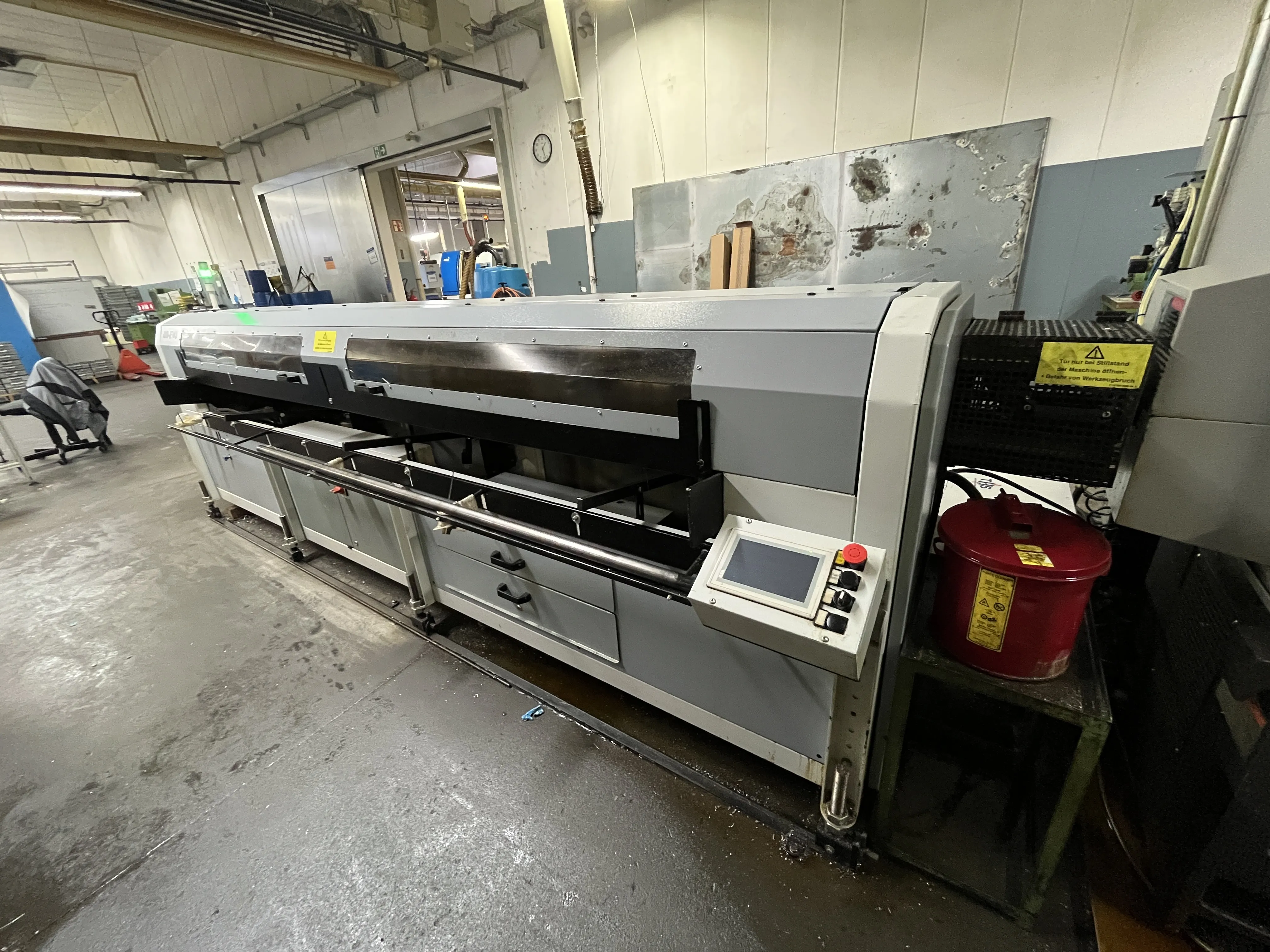

• incl. Single conveyor and a rod loader from the manufacturer Cocchi Type DB-EVO, 70
• also including a clamping system and all the tool recordings in the interior without cutting tools
• Read processing time: 6288 H
• duration: 8864 h
• Attention: The hours can change until delivery of a low -fiftif
• installation L x W x H (in mm): 9500 x 2000 x 2100
• Weight (in KG): 6000

The machine is sold in the course of an industrial auction.
Click here for the machine:
