Description

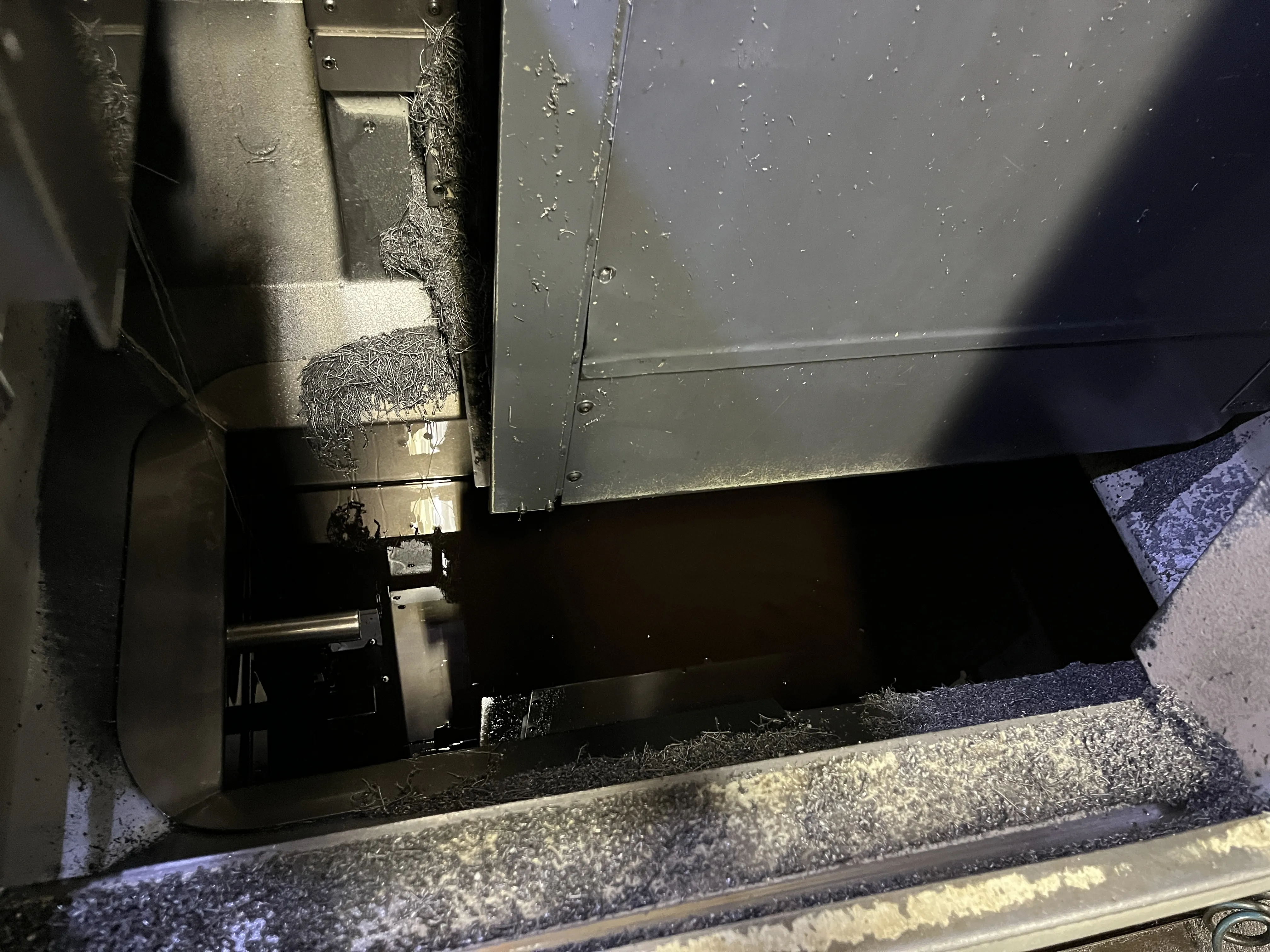

CNC rotary machine

• manufacturer: Manurhin kmx

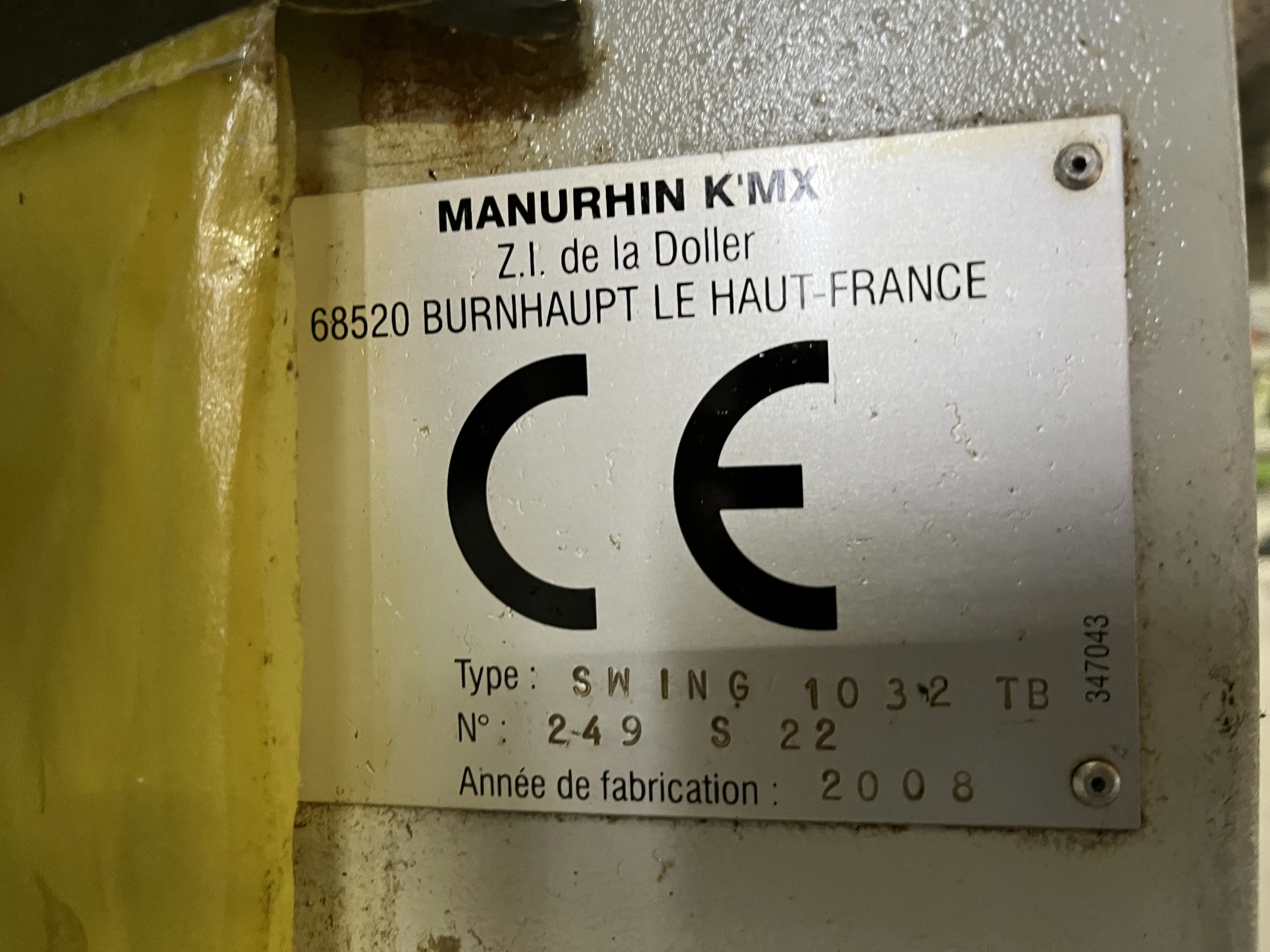

• Type: Swing 1032 TB
• year of construction: 2008
• machine number: 249S22
• Control: Fanuc Series 160i-TB
• operating voltage: 3 x 400 V
• frequency: 50 Hz
• Connection: 33 KVA
• max. Staumnut: 32 mm
• max. Length processed in one work step: 250 mm
• spindle bore: 33 mm diameter
• spindle drive:
• performance: 5.5/7.5 kW
• max. Spindle speed: 8000 rpm
• Spindle direction: left and right
• Movable spindle stick (Z1 axis):
• Spindelstock hub: 250 mm
• max. Rap: 30 m/min

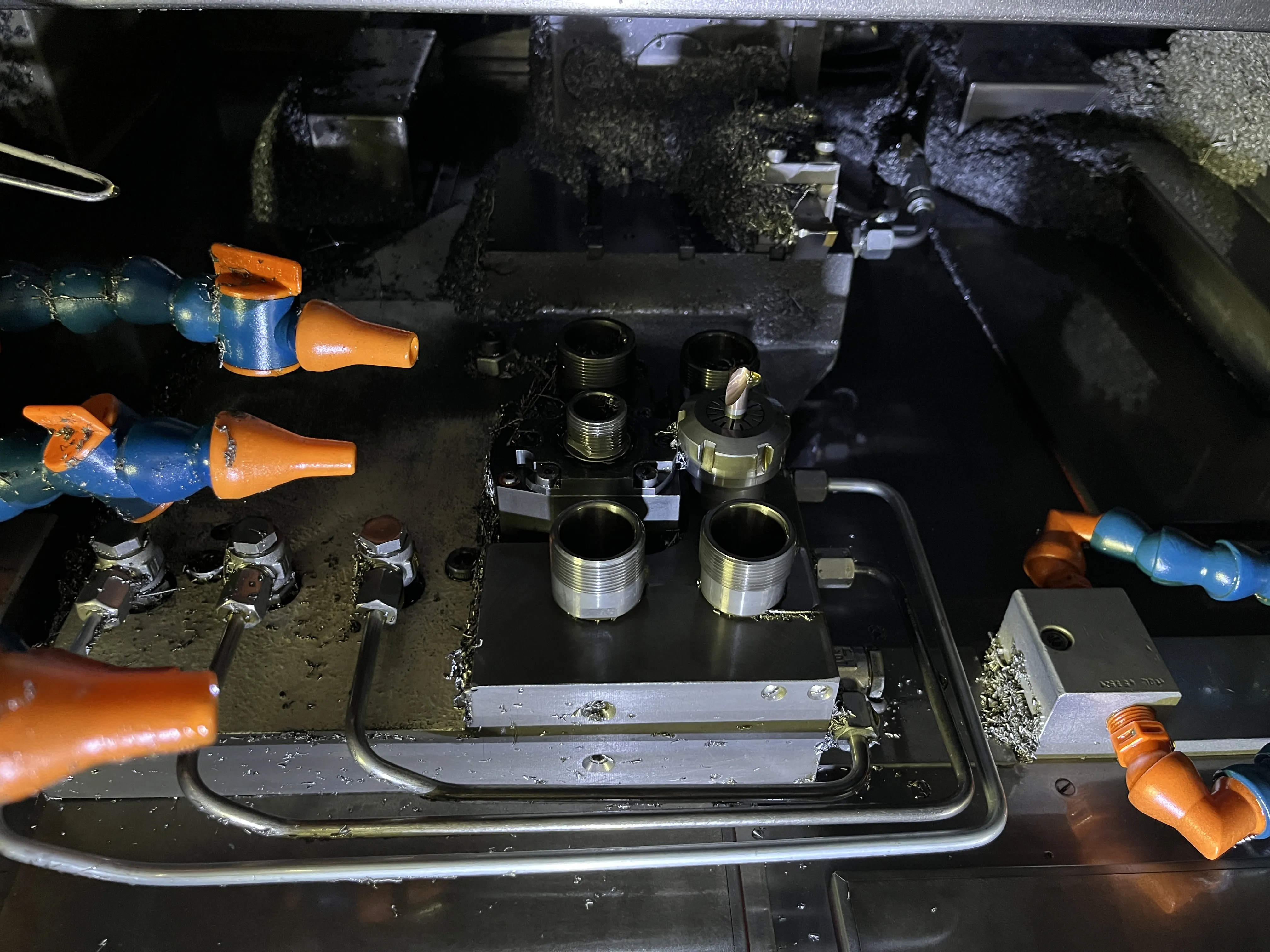

• Tool holder, possibly cross-sled (X1 and U1 axes)
• horizontal stroke of the slide: 45 mm
• max. Rap: 30 m/min
• Tool holder Senicrecht sledding (Y1 and V1 axis)
• vertical hub of the tool keeper slide: 180 mm
• max. Rap: 30 m/min
• Number of work stations 2 x 5: 10
• cross section of the outer tools: 16 x 16 mm
• Tool holder Senicrecht sled (B2-axis)
• hub of the vertical rights: 343 mm
• max. Rap: 16 m/min
• Number of work stations: 4
• bore for the intake of the tools: 25 mm diameter
• longitudinal slide (A1-axis)
• hub of the longitudinal slide: 230 mm
• max. Rap: 30 m/min
• x2-axis
• hub of the vertical rights: 452 mm
• max. Rap: 16 m/min
• Z2-axis
• hub of the horizontal slip: 215 mm
• max. Rap: 30 m/min
• max. Workpiece recording: 32 mm diameter
• max. Workpiece recording 26 - max. 32 mm diameter: 150 mm in the spindle
• max. Staum defense: 26 mm diameter
• rod bore: 26.6 mm diameter
• max. Spindle speed: 8000 rpm
• workpiece recording in the spindle with a foreground: 150 mm
• max. Workpiece length with a foreground: 170 mm
• end apparatus (axis W2)
• hub: 180 mm
• max. Rap: 30 m/min
• Number of positions: 9
• bore for the intake of the tools: 25 mm diameter
• pneumatics control unit
• necessary pressure: 6 bar
• pneumatics pipe diameter: 10 mm
• coolant supply
• container: 200 l
• drainage quantity: 50 l/min
• printing: 2.8 bar
• incl. Single conveyor, coolant aggregate from the manufacturer Combiloop and a pole loader from the manufacturer FMB type Turbo 3-36
• In addition, all tools that are clamped in the interior are included in the scope of delivery
• Note: With driven tool stations
• installation L x W x H (in mm): 9500 x 2200 x 2000
• Weight (in KG): 5500
