Description

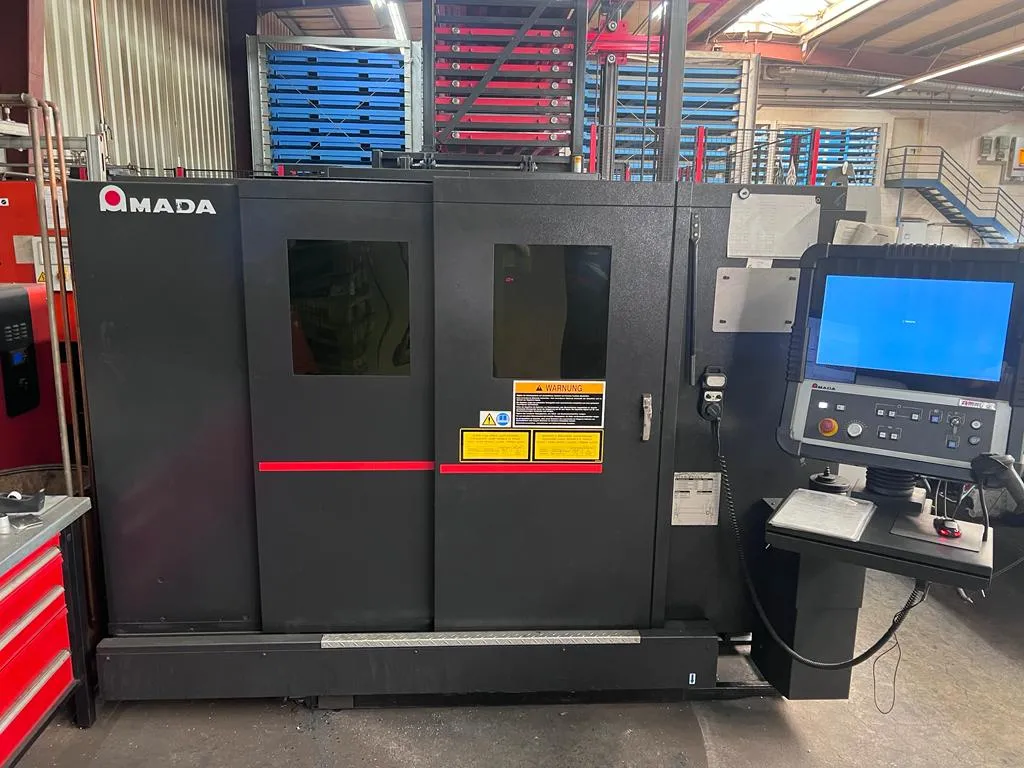

Amada Ensis 3015 AJ 2kW

Year of construction 2015

Operating hours: approx. 44,000 h

Technical data:

Travel range: 3070 mm x 1550 mm

Table load: 920 kg

Positioning speed: 170 m/min

Laser principle: flying optics

Machine weight (without changing table): 9,500 kg

Laser source:

Beam source: Diode pumped fiber laser

Type: AJ-2000

Laser power: 2000 watts

Laser wavelength: 1.08 µm

Performance stability: +/- 2%

Pulse frequency: 1 – 10,000 Hz

Pulse duty cycle (duty): 1-100%

Control:

Type: AMNC-3i

Screen: 21.5” touchscreen

Operating system: Windows 7

Equipment:

Automatic pallet changer

NC focus control

Oil spray function

Automatic nozzle changer (4-fold)

Sensor cutting head

Diode laser for positioning

Cutting process monitoring

Safety device

Longitudinal conveyor belt

Peripheral devices:

Transformer

Cooler

Suction

Pallet changer control panel

Maximum material thicknesses:

Normal steel:             20 mm

Stainless steel:                  10 mm

Aluminium:               8 mm

Brass:                   5 mm

Copper:                      4 mm
