Description

Amada HFE 3i 1003

Year of construction 10/2021

Machine hours: approx. 8,000 h

Description

Pressing force 1000 kN

Folding length 3000 mm

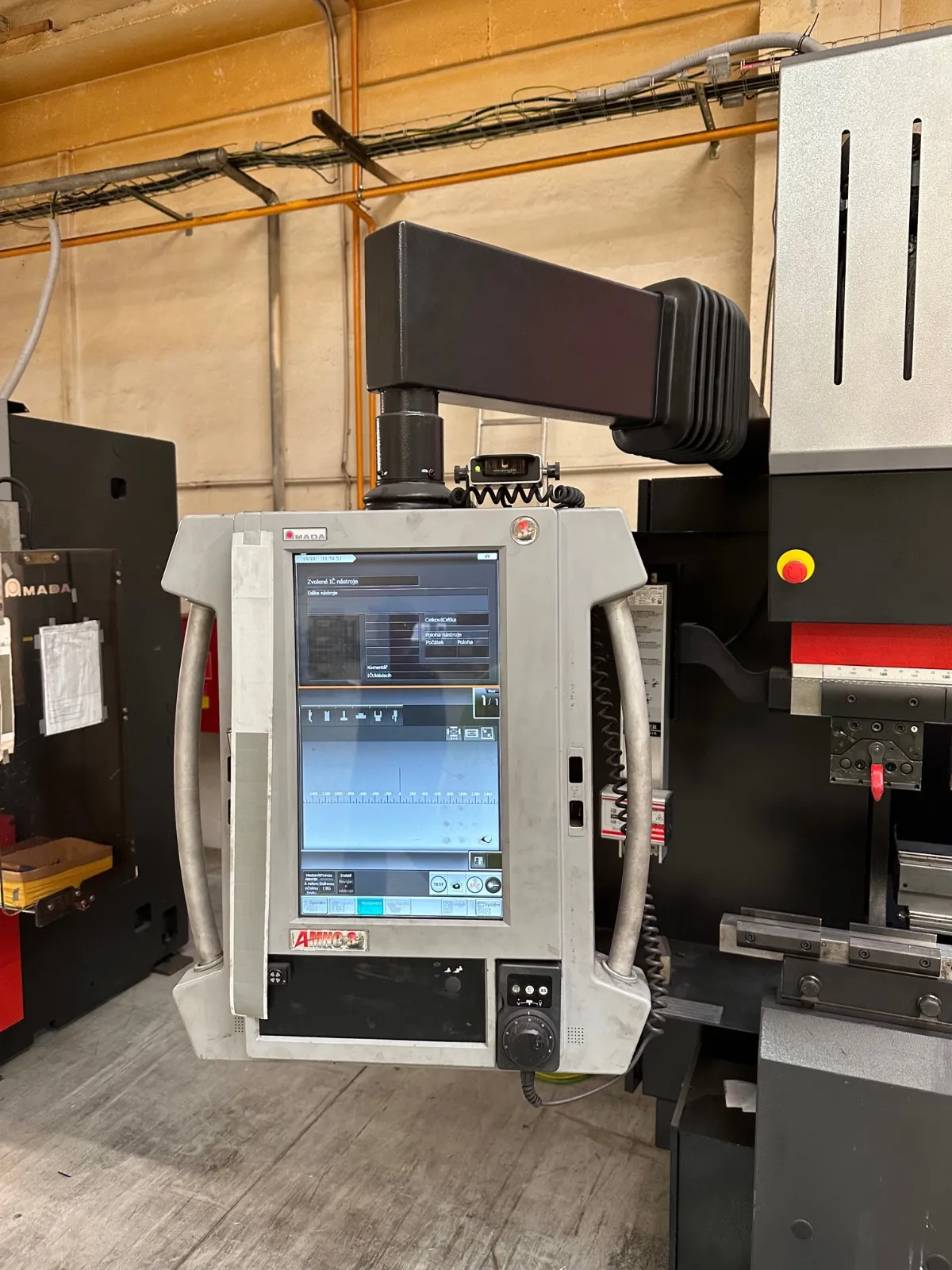

Control AMADA AMNC 3i

Back gauge with 6 controlled axes

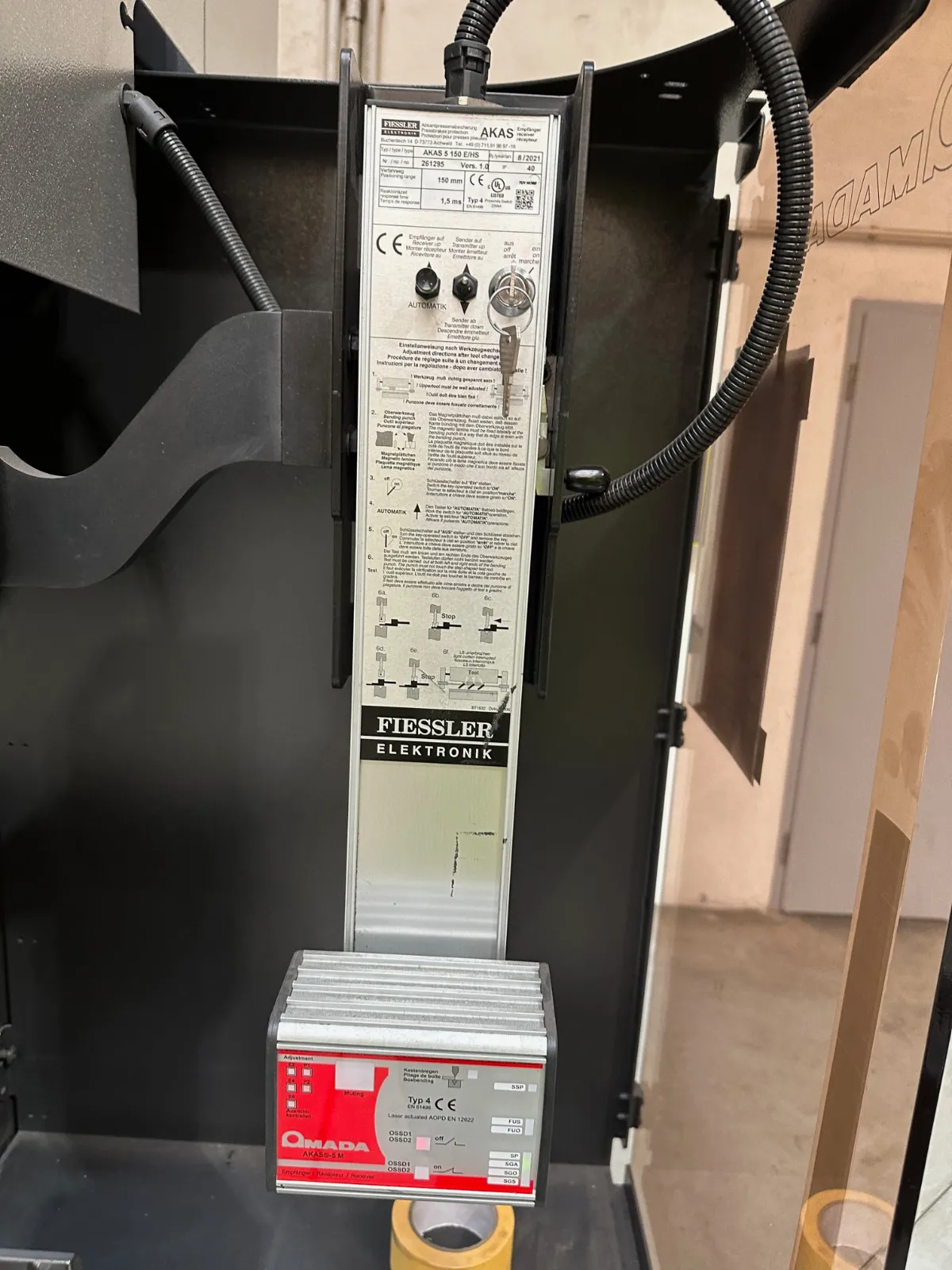

Safety device type AKAS

Remote diagnosis capability

Technical data

Maximum pressing force                                                          1000 kN

Length of the press beam                                                   3110 mm

Passage between the machine stands             2705 mm

Throwout                                                                           420 mm

Stroke                                                                                    200 mm

Installation height                                                                   470 mm

Width of the work table                                                   60 mm

Table height 960 mm

Delivery speed                                                    1-100 mm/s

Working speed                                                    1-10 mm/s

Return stroke speed                                    1-100 mm/s

Oil volume                                                                           110 l

Electrical connection                                                           400 V / 50 Hz / 17kW

Dimensions:

Total length                                                                    4615 mm

Total width 2660 mm

Total height 2680 mm

Machine weight                                                             7,000kg
