Description

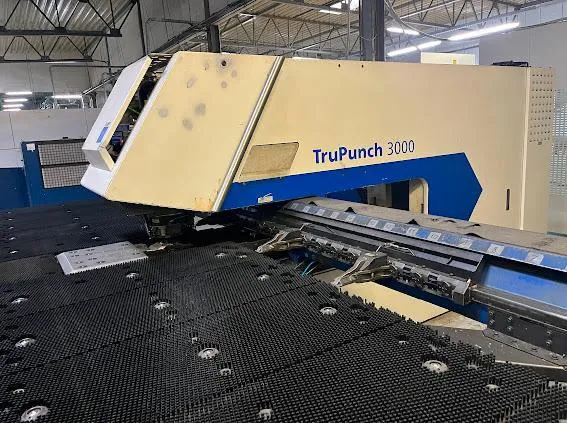

Trrumpf TruPunch 3000 1300

Year of construction: 2008

Machine hours: approx. 68,500 h

Max. Sheet thickness: 6.4 mm
Travel range: 2500 x 1250 mm

Standard equipment

- Stable C-frame

- Coordinate guidance with integrated linear magazine with 21 spaces for tools

  and clamps

- 3 clamps

- Drives: Maintenance-free, digital three-phase servo motors

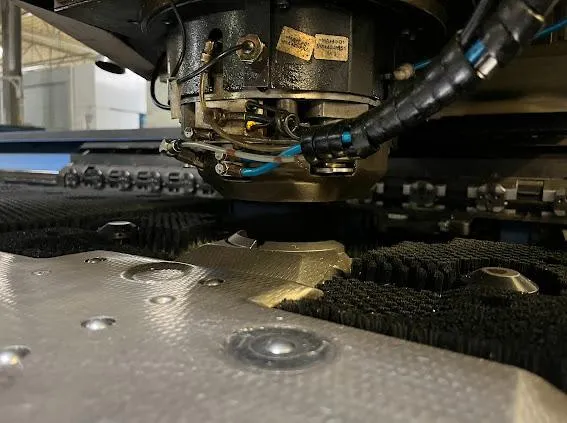

- Punching head: Closed loop hydraulic system, hydraulic

  Mono tool holder, 360° rotation for all tools, automatic

  Tool length compensation, programmable wiper movement

- Programmable hold-down device for repositioning

- Spray lubrication stamp

- Punch slug extraction

- Chip bucket

- Parts slide 500x500 mm

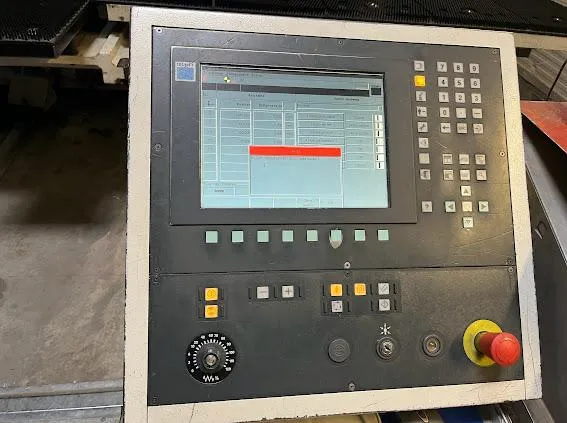

Control

- BOSCH PNC-P, activity-oriented user interface, online help,

  Diagnostic functions, 3.5" floppy drive, RJ45 network connection

Security

- CE mark, multi-beam light barriers, quick shut-off hydraulics

Advanced punching equipment

- Thread forming function

- Signing/fast beading function

Advanced machine equipment

- Brush table

- Vibration-damped installation

- Sensor for parts slide
