Description

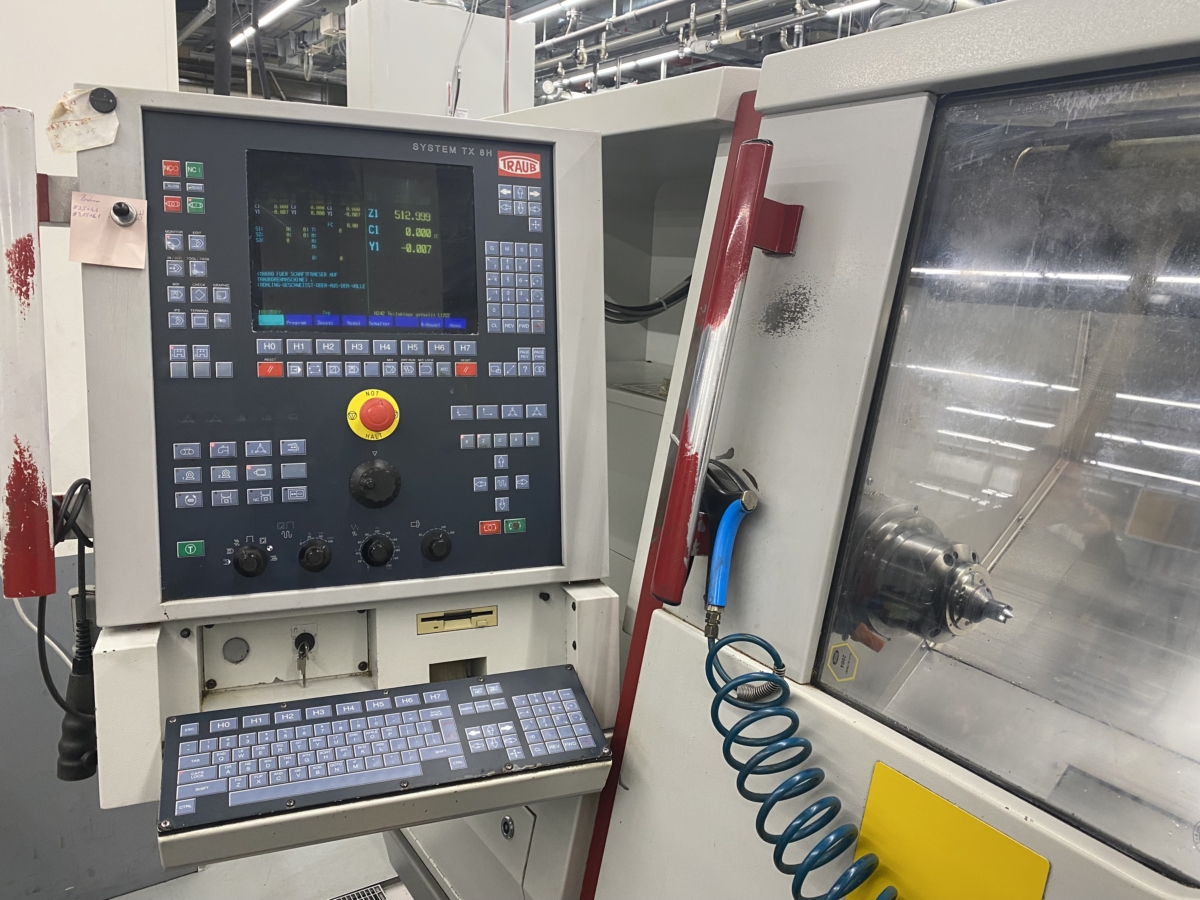

Control TRAUB SYSTEM TX8H
Weight 3500 kg
Dimensions L-W-H 3960 x 1640 x 1800 mm
Power 11 kW
Spindle speed 5600 / 4000 min-1
Torque 200 / 280 Nm

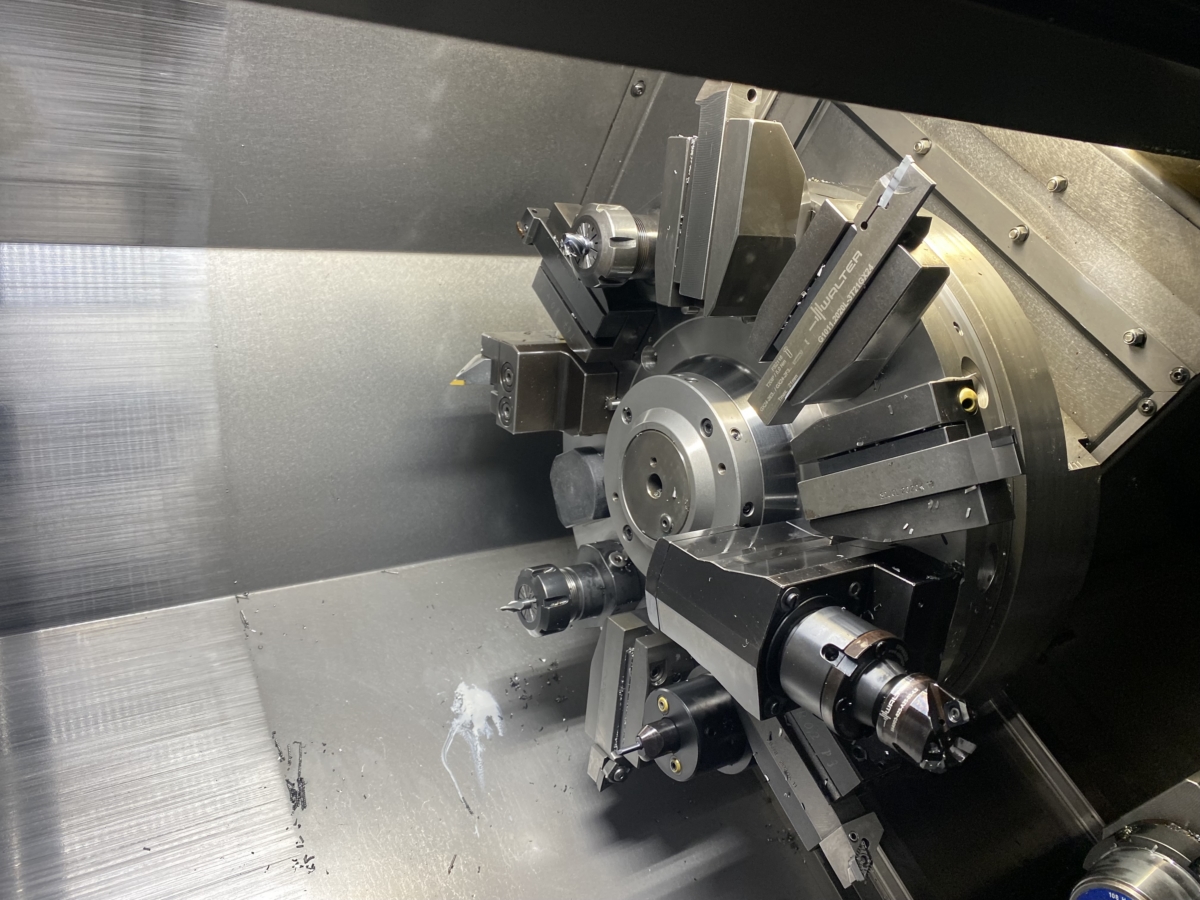

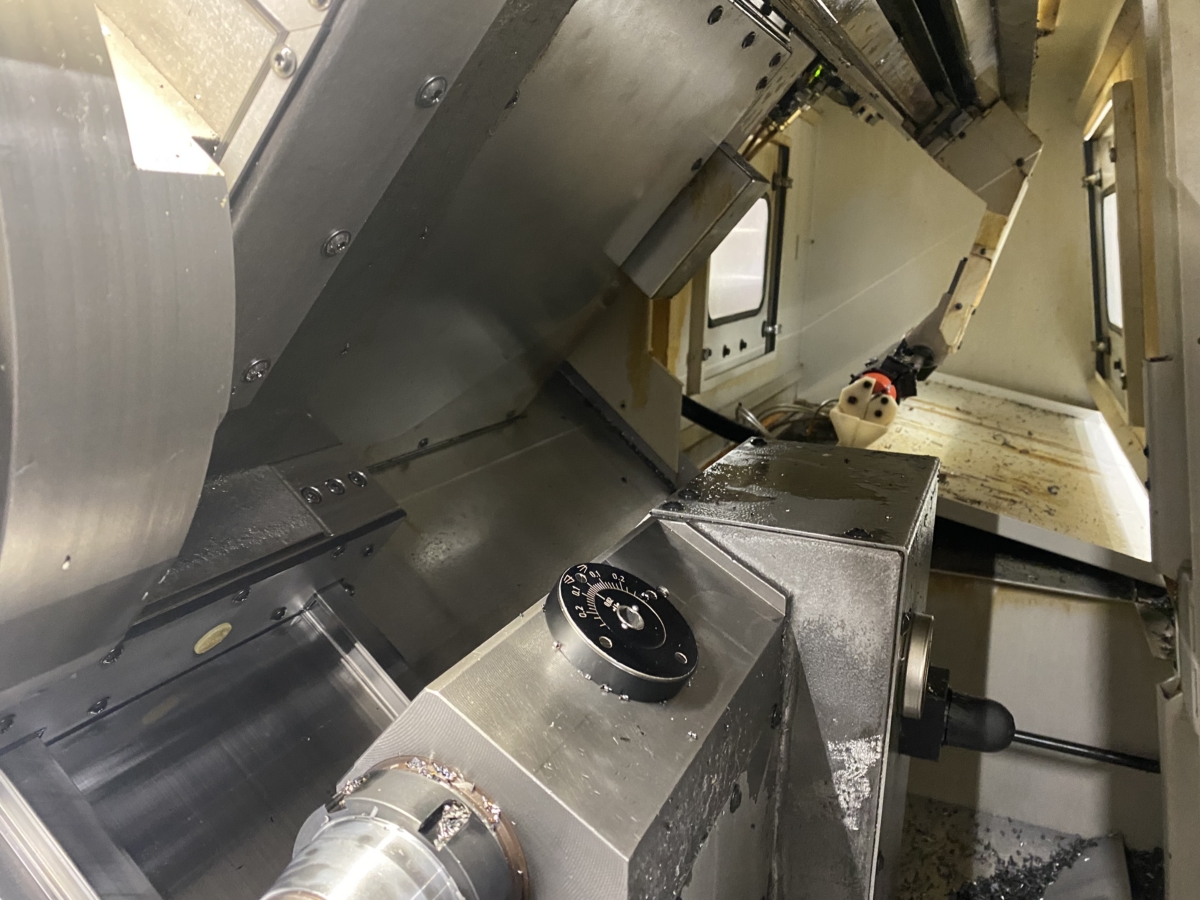

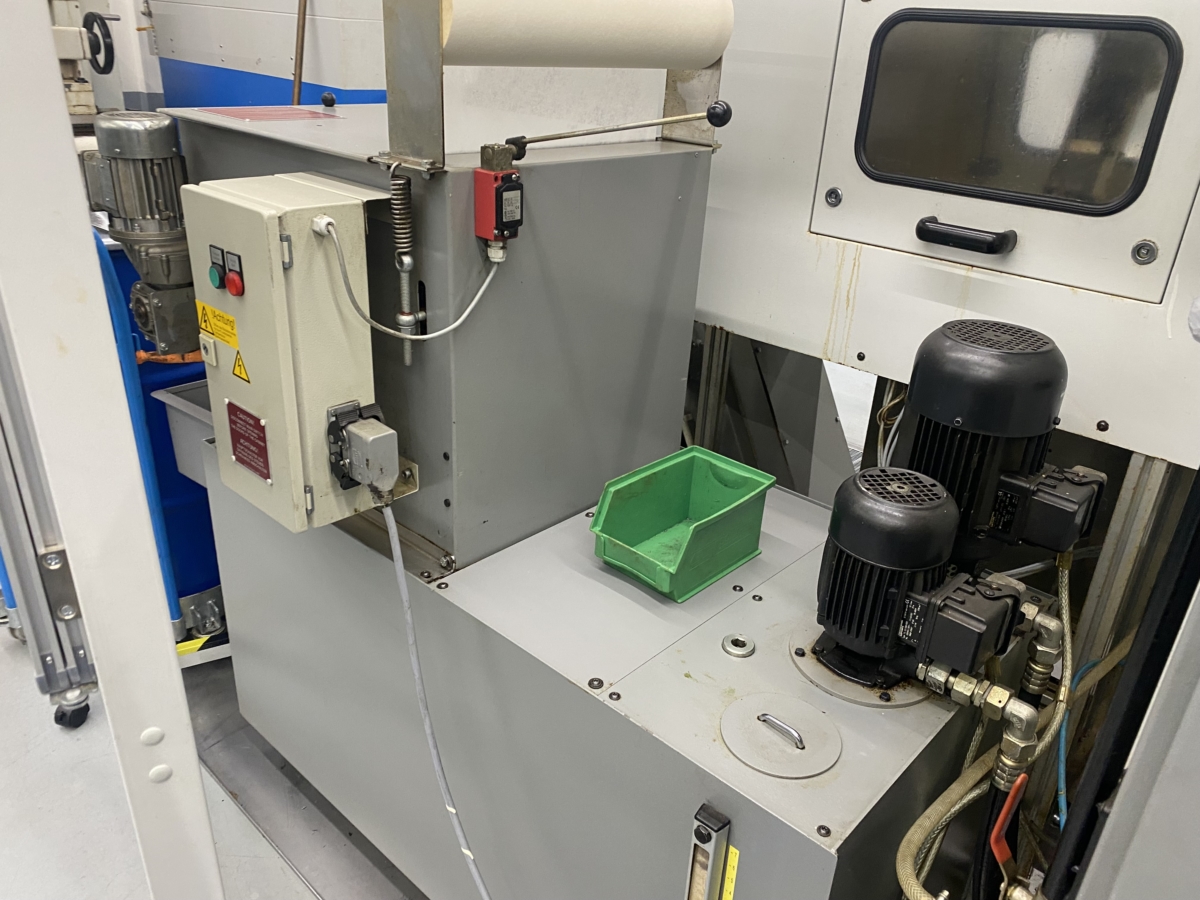

The TRAUB lathe TNA 300 was designed for subsequent processing of workpieces designed with a turning length of 450 mm. -- for metal and plastic machining with a defined cutting edge suitable tools for this. -- for inclusion in jaw chuck sizes 160 to approx. 250 -- for processing material bars up to a Ø of 42 or 65 mm -- with EHS special version -- -- Workpiece removal device -- Chip conveyor extended 800 mm -- Technical data -- -- Work area -- -- Spindle diameter: 42 mm -- Spindle head DIN 55026, size: A5 -- Clamp diameter: 160-175 mm / 200-250 mm -- Turning diameter max: 275 mm -- Distance over center of rotation: 35 mm -- Turning length max.: 450 mm -- Swing diameter over cross slide: 395 mm -- Swing diameter over bed: 520 mm -- tool carrier -- -- Tool holders for cylindrical shank DIN 60880: 12 PCS -- Shaft diameter: 30mm -- Chisel cross section: 20x20 mm -- Switching time 1 station: 0.5 sec. -- Switching time for each additional station: 0.15 sec. -- feed drives -- -- X axis: -- Sledge travel: 210 mm -- Feed force: 5000 N -- Rapid traverse/web speed: 15 m/min -- Z axis: -- Sledge travel: 450 mm -- Feed force: 6000 N -- Rapid traverse/web speed: 18 m/min -- Y axis: -- Sliding path: +- 35 mm -- Feed force: 6000 N -- Rapid traverse/web speed: 10 m/min -- C axis: -- Speed: 100 min-1 -- Torque: 140 / 196 Nm -- electrical resolution: 0.001 degrees -- tailstock -- -- Quill diameter: 70 mm -- Quill stroke: 60 mm -- Quick retraction stroke: 280 mm -- Quill setting force at 55 bar: 8600 N -- Recording according to DIN 228: Mk 4 -- Bezel -- -- Clamping range: 8 - 95 mm -- Workpiece removal device -- -- Max. part length: 250 mm -- Max. part weight: 3 kg
