Description

Saw blade diameter 450 mm
Cutting diameter 150 mm
Stroke mm
Total power requirement 4 kW
Machine weight approx. 1.05 t
Space requirement approx. m

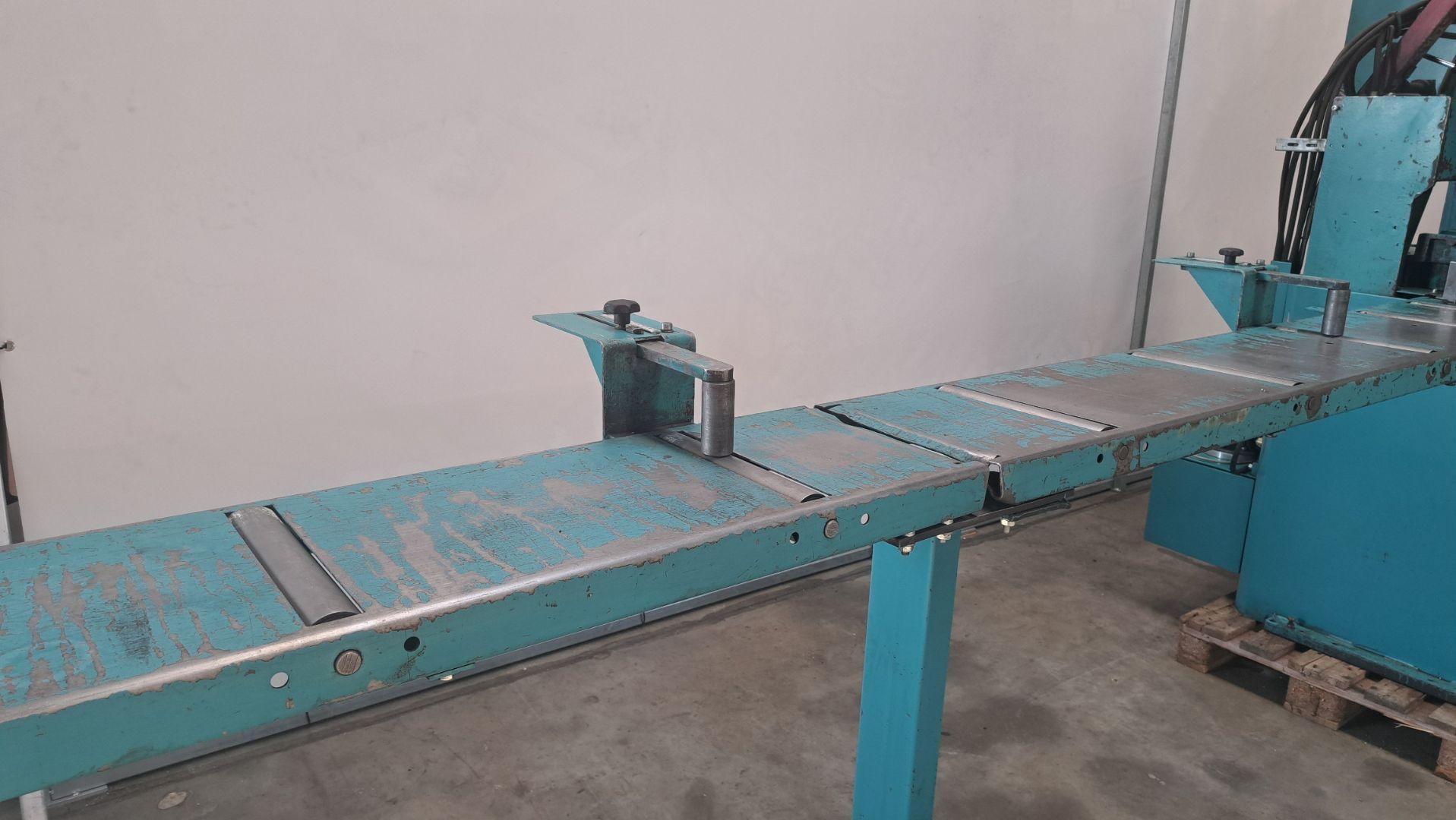

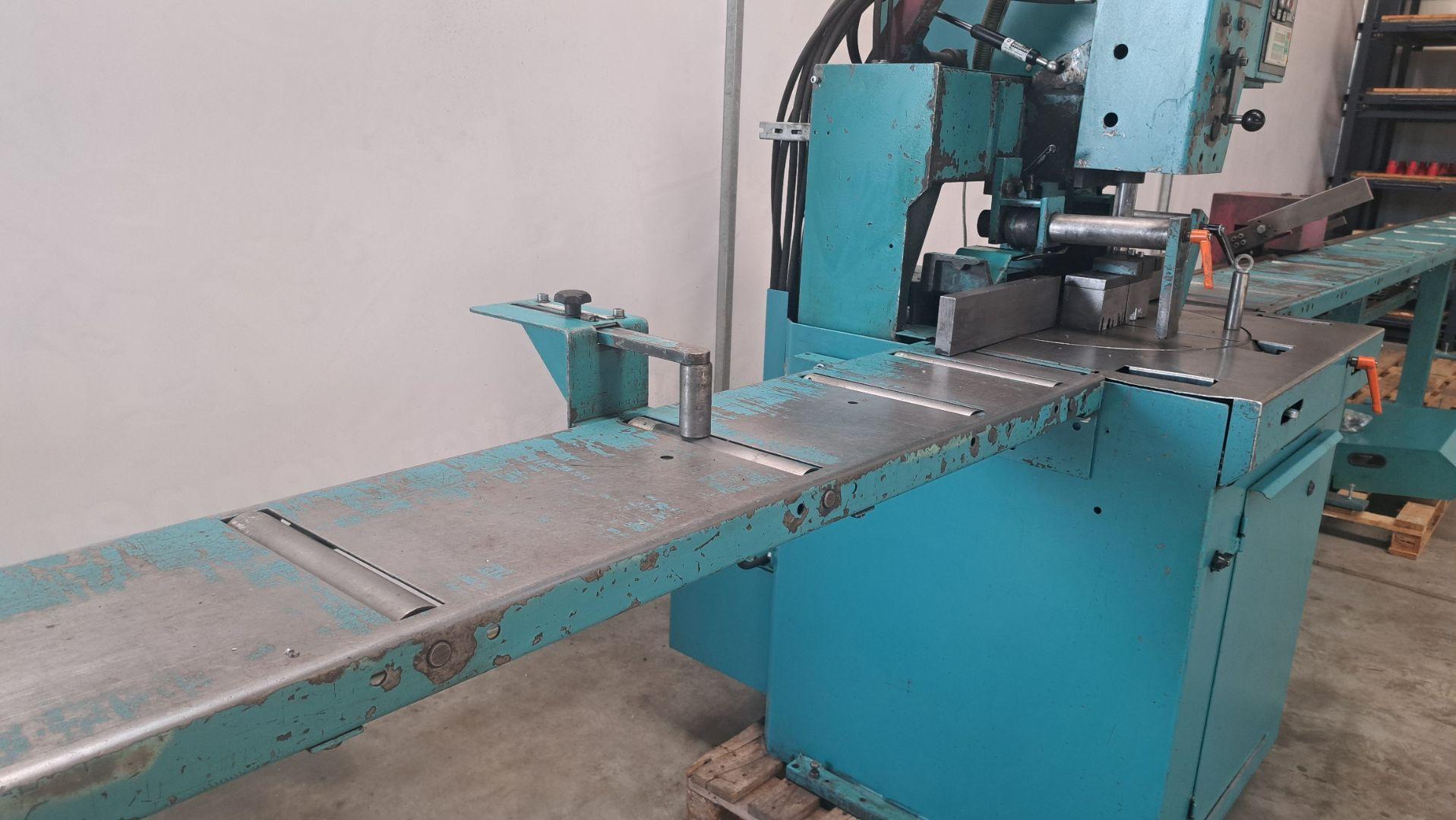

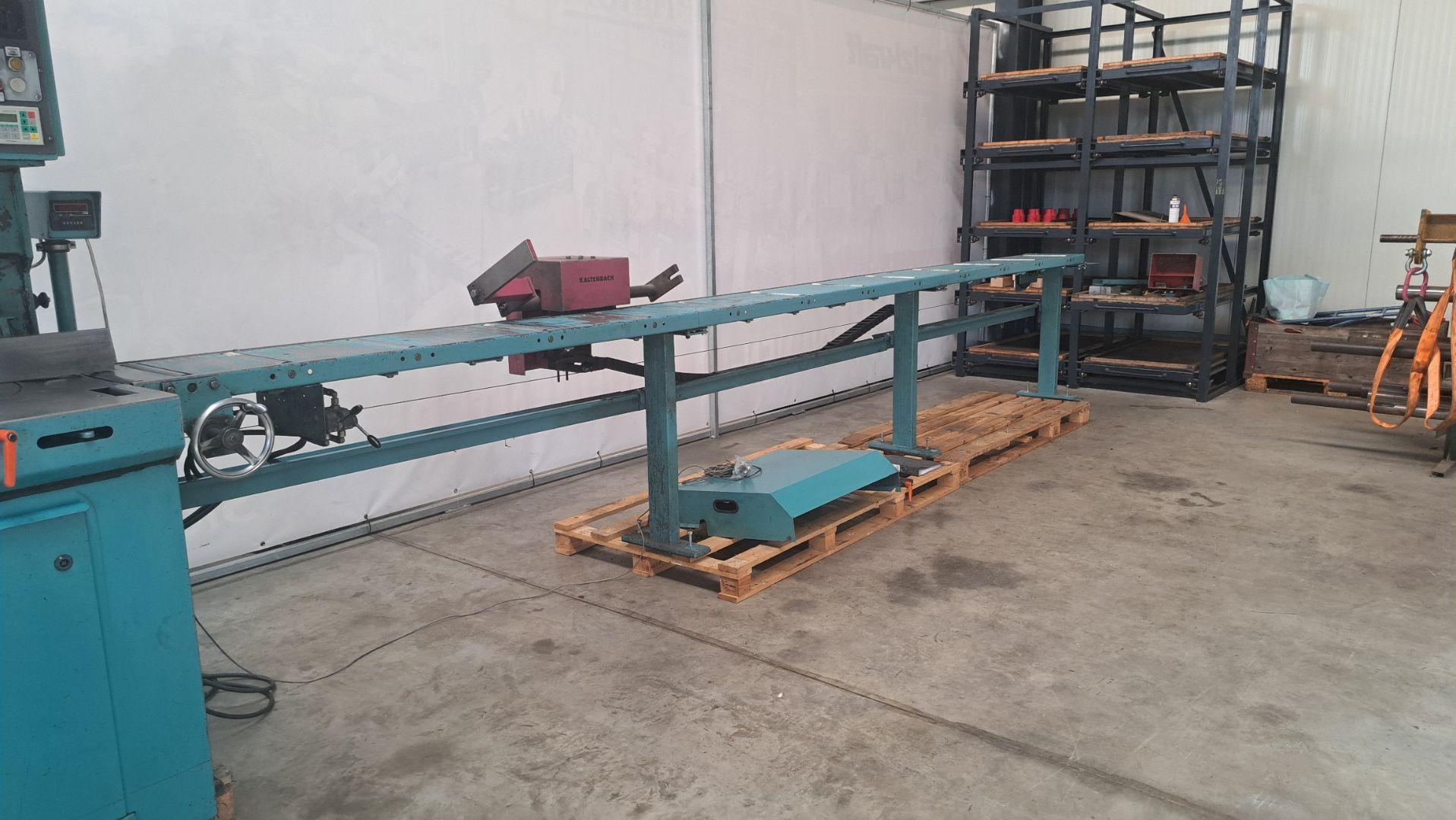

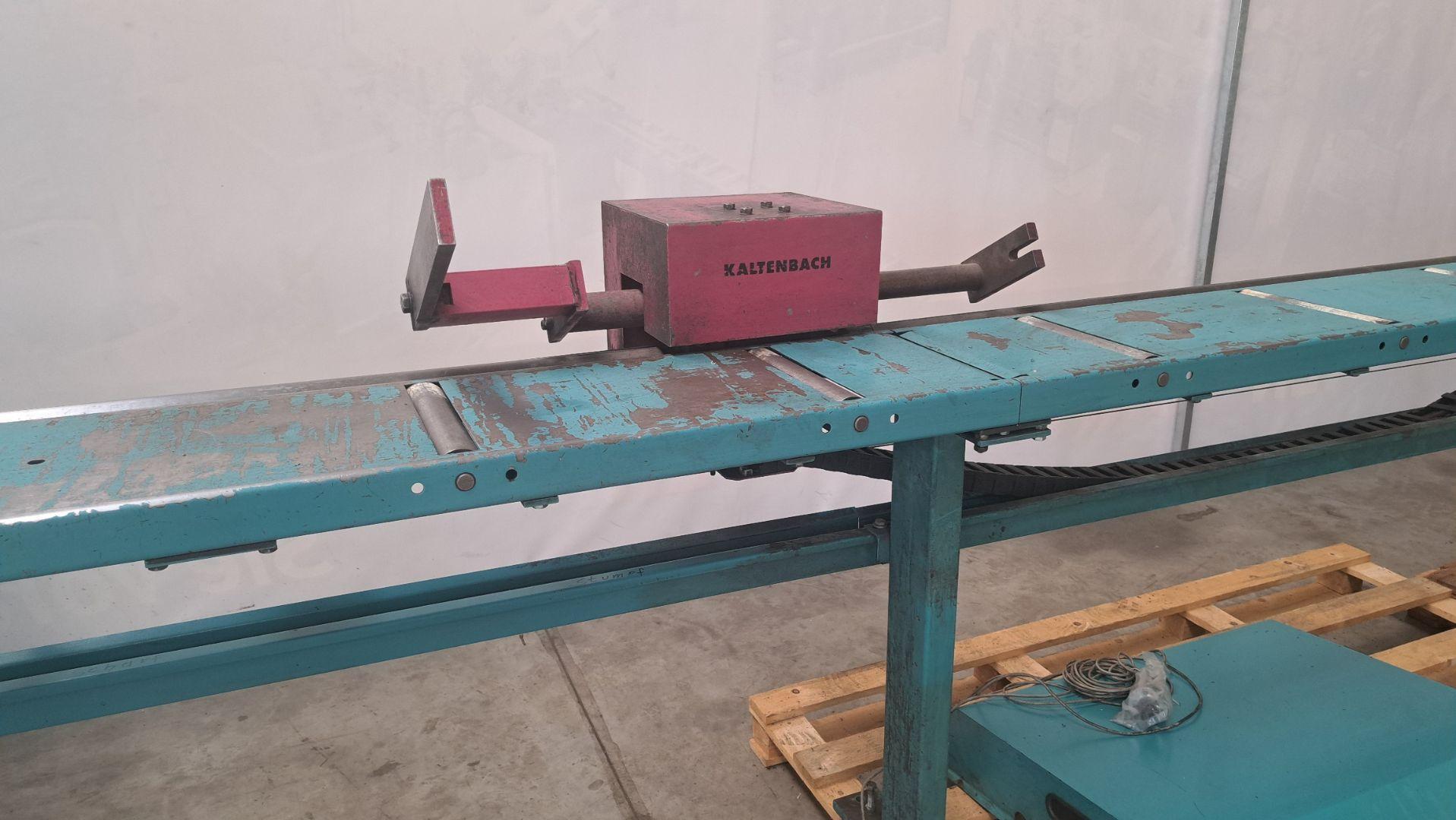

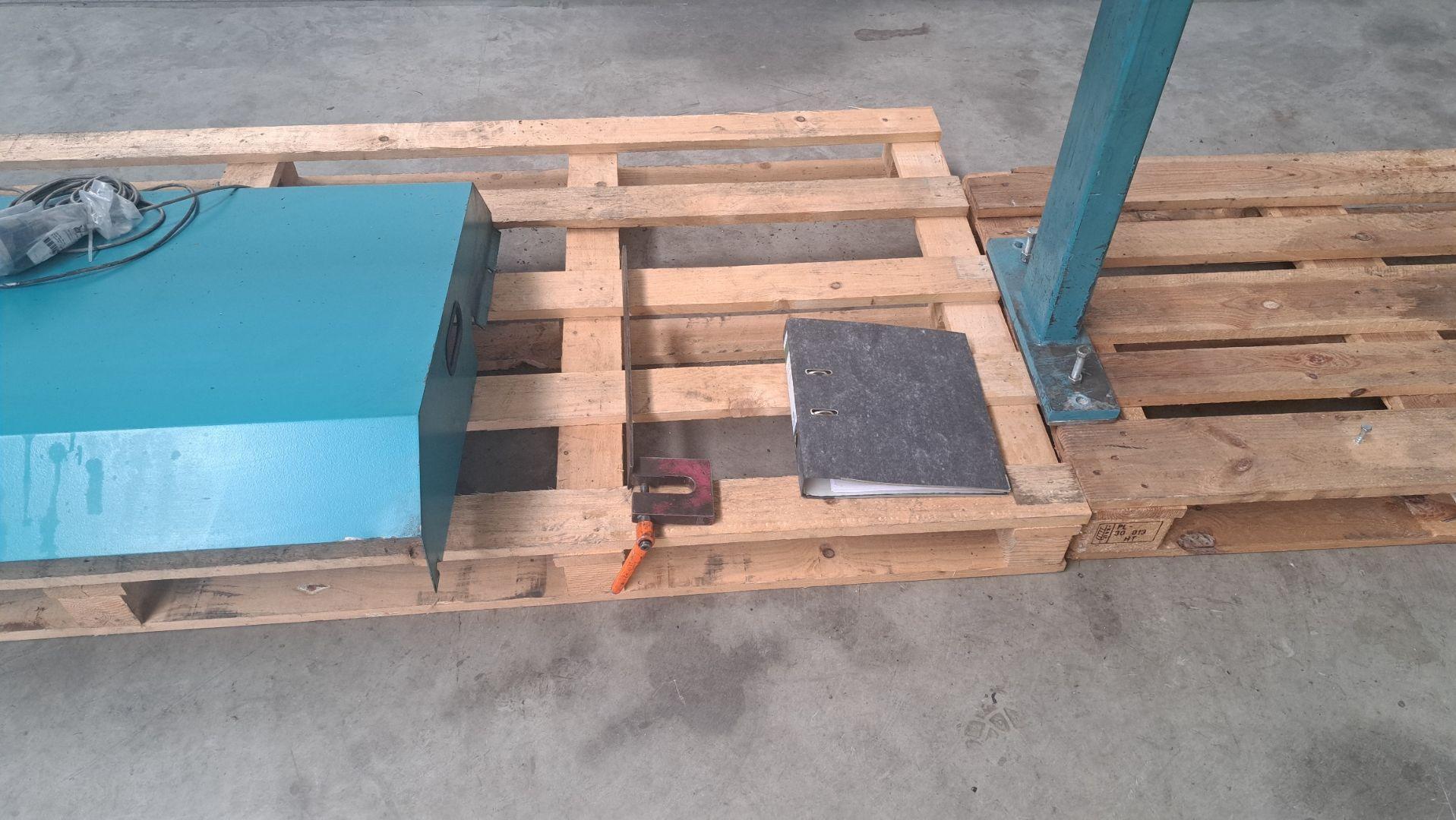

used semi-automatic cold circular saw make Kaltenbach, Type KKS450H, built in 1999 Machine weight 1050 kg Dimensions 1020x1350x2000 mm Saw blade diameter standard 450 m possible saw blade diameter 400 / 370 mm Saw blade holder bore 50 mm Saw blade feed speed 0 - 1000 mm/min Rapid return 3300 mm/min Rotary table adjustment infinitely +/- 90 degrees Cutting speed with 450 mm blade diameter 7-43 m/min Drive power 4 KW EQUIPMENT and ACCESSORIES Runway with digital length stop, discharge side approx. 6 m Runway supply side approx. 4 m Documentation in German
