Description

x-travel 1,800 mm
y-travel 700 mm
z-travel 700 mm

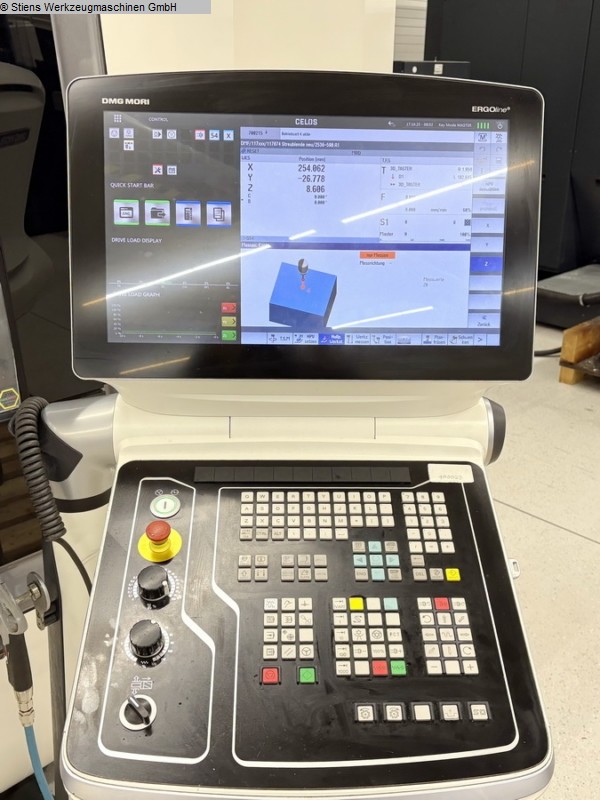

Control 840 D sl op. (CELOS) Siemens

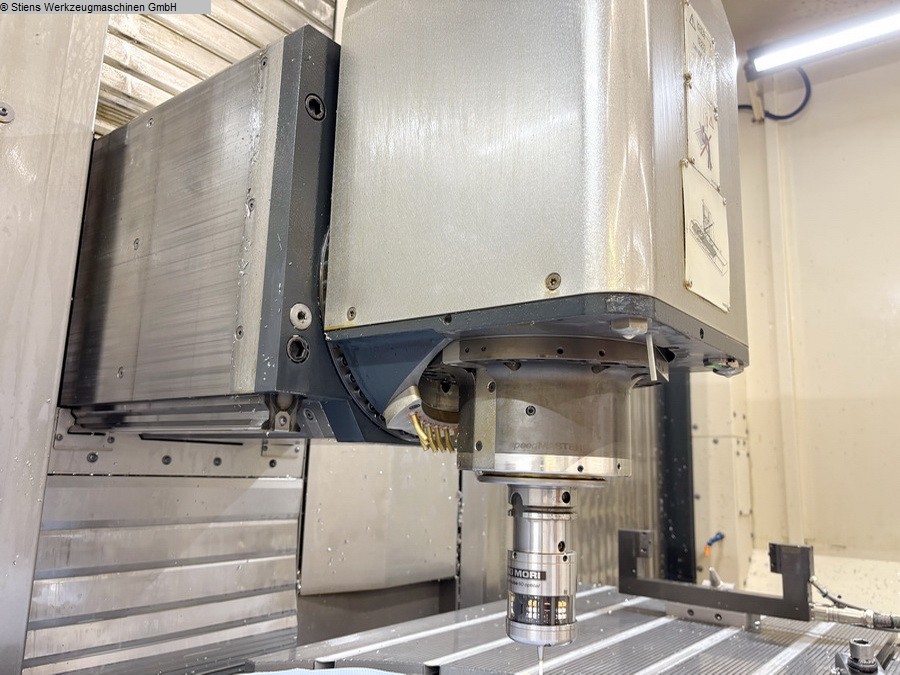

Main spindle:
Speed ​​range - main spindle 20 - 20,000 min/-1
Drive power - main spindle 35 / 25 kW
Max. Torque 130 / 86 Nm
Tool holder HSK-A63
swivelling B: +/- 100 °
Work table:
Table clamping surface 2,100 x 700 mm
max. Table load (1,500) kg
Number of T-slots 7

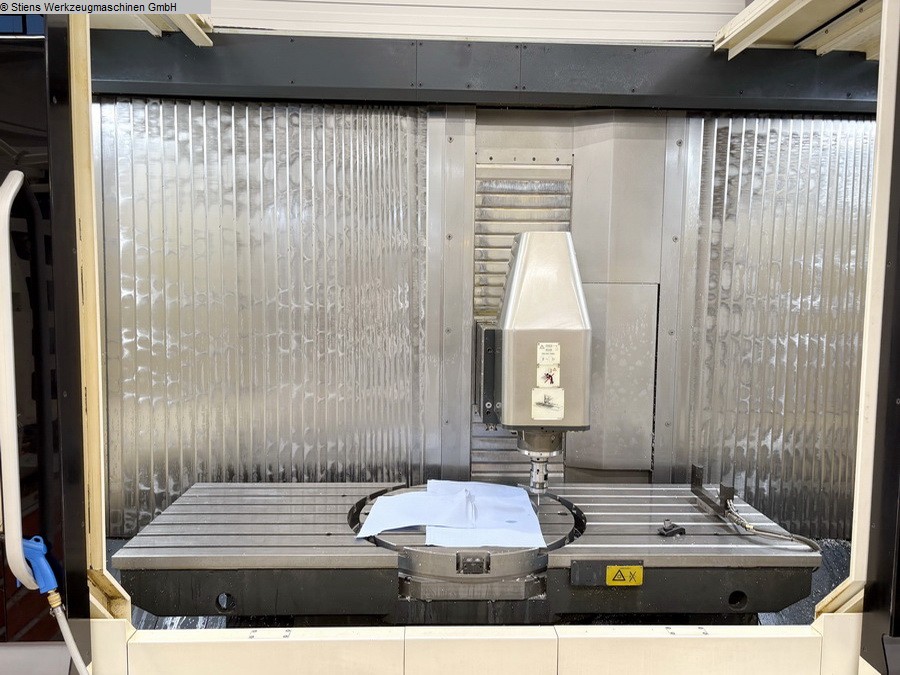

NC rotary table:
Table diameter 750 mm
max. Table load 500 kg
Number of T-slots 7
T-slots - distance 63 mm
Height of the table 255 mm
rotatable C: 360 °
Speed 16 1/min
Resolution 0.001 °
Tool magazine:
Number of tool places 60 pos.
Tool holder HSK-A63
max. Tool weight 6.0 kg
max. Tool diameter 80 mm
max. tool through. with a free neighboring box. 130 mm
max. Tool length 300 mm
Change time chip - chip 7.6 sec
Feeds:
Rapid traverse ( kVA
Machine weight approx. 13.7 t
Space requirements approx. 7.5 x 6.5 x 3.0 m

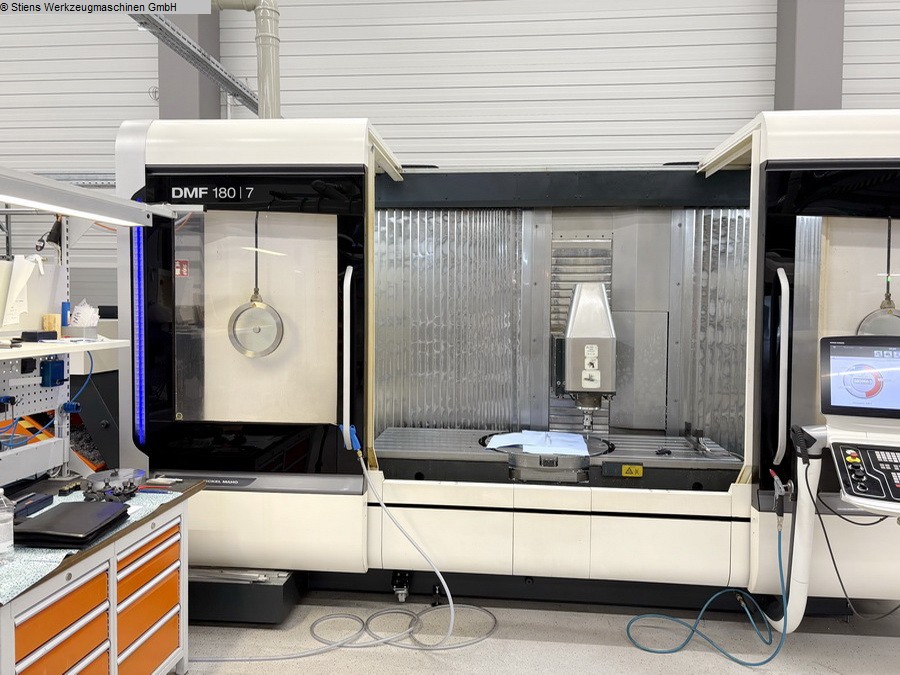

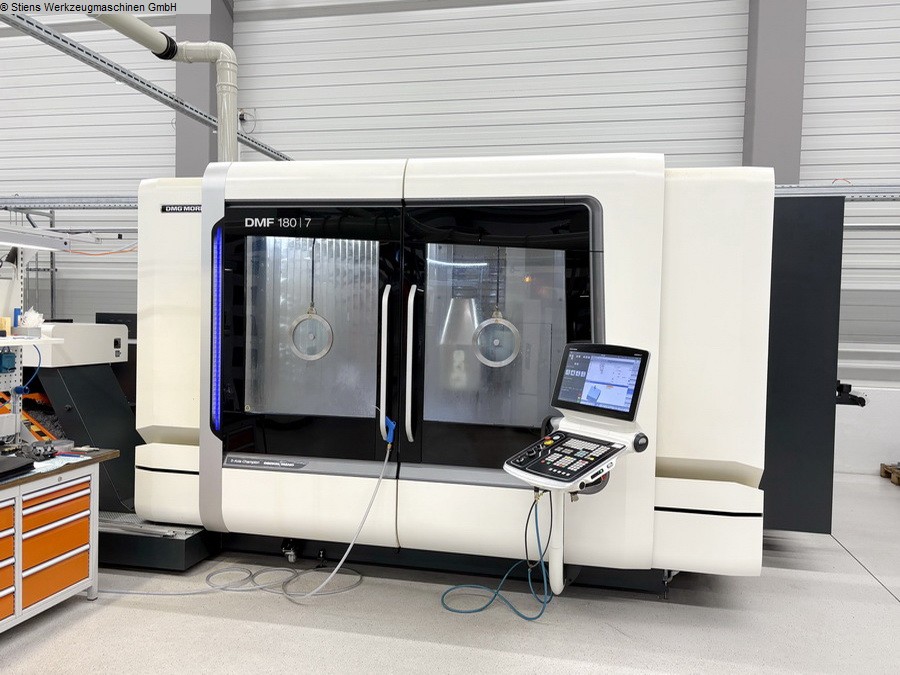

5-axis CNC traveling column milling machine DMG MORI - DMF 180-7 - SpeedMaster motor spindle - Swivel milling head (B-axis) - Round table integrated into rigid table - internal coolant supply - Spindle, Y-axis and B-axis clamping overhauled in 04/2025
