Doosan Lynx 2100
DOOSAN
Lynx 2100
Auf Anfrage
Condition
Sehr gut
Year of construction
2019
Availability
Immediately
Category
CNC Drehmaschinen 500-599mm Drehdurchm.
Location
Zutphen, Nederland
Retailer
Description

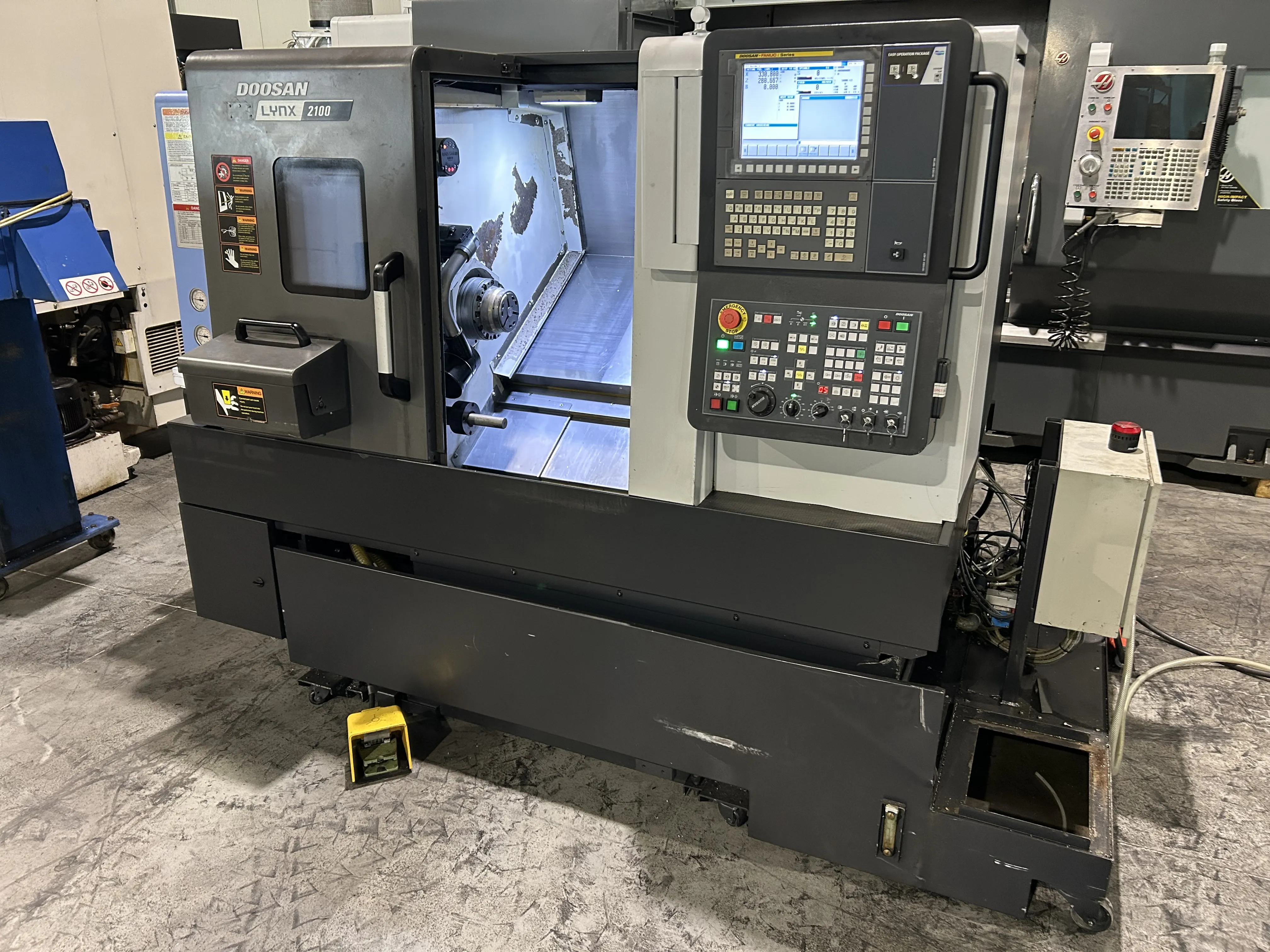

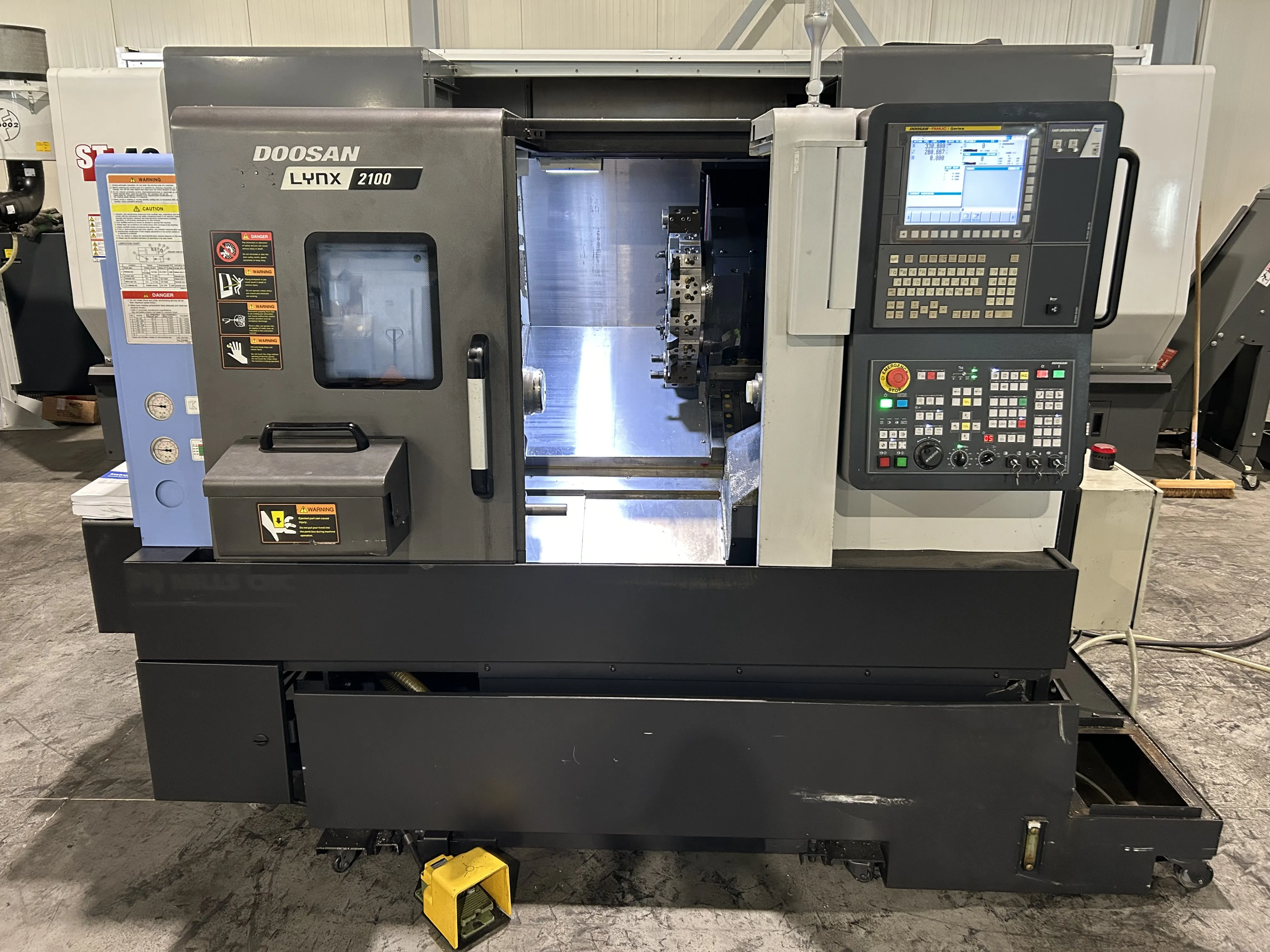

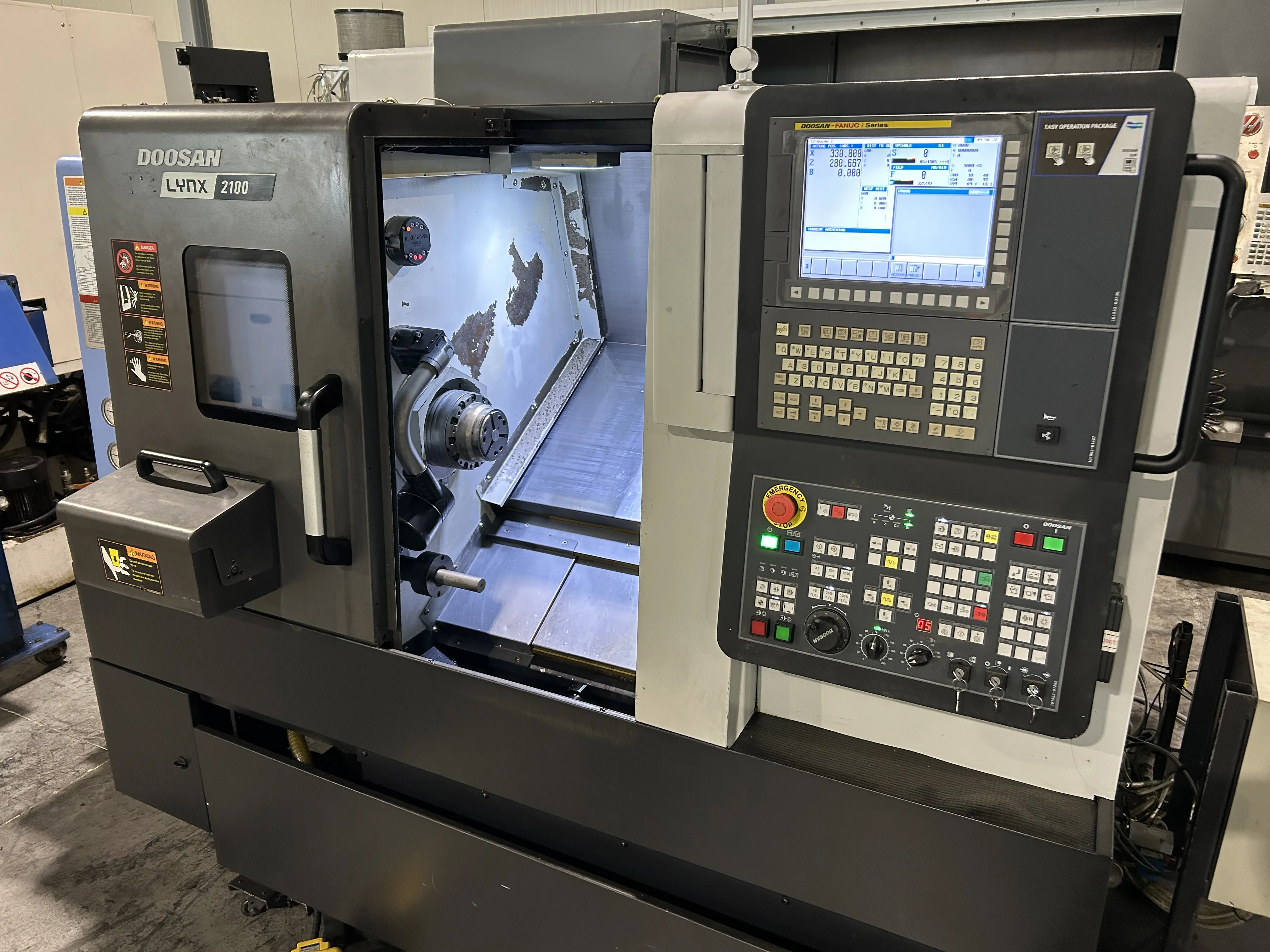

Beautiful 2019 Doosan Lynx 2100. Machine is in good condition and available immediately. Fully operational and can be viewed in our showroom.
Video link: https:youtu.be/A_X7XNJBKTA?si=rxdvdgKLakvNmZw3
Delivery, installation, and commissioning are available upon request.
Price upon request (excluding VAT).
For videos and/or more information, please contact +31638290829

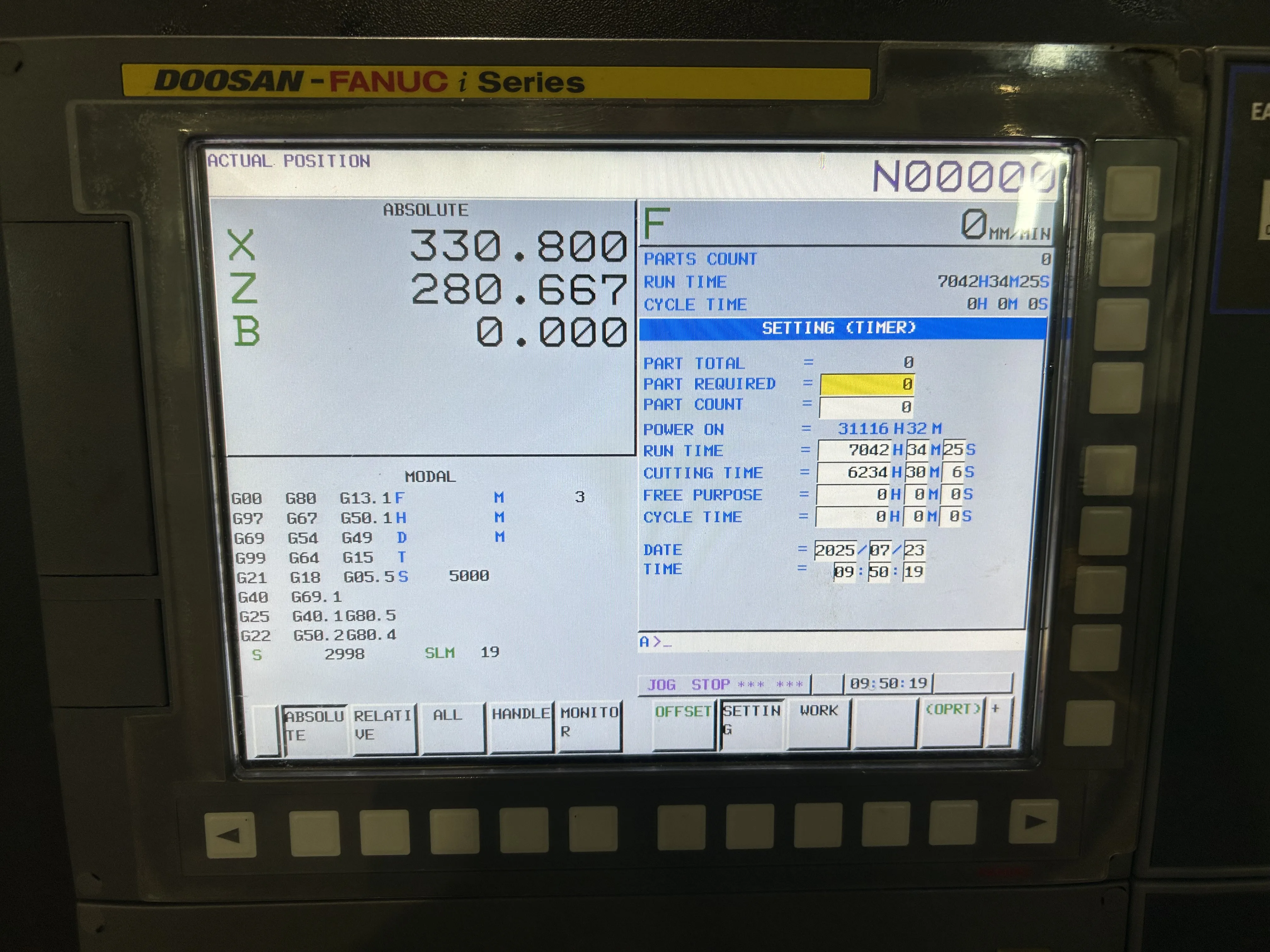

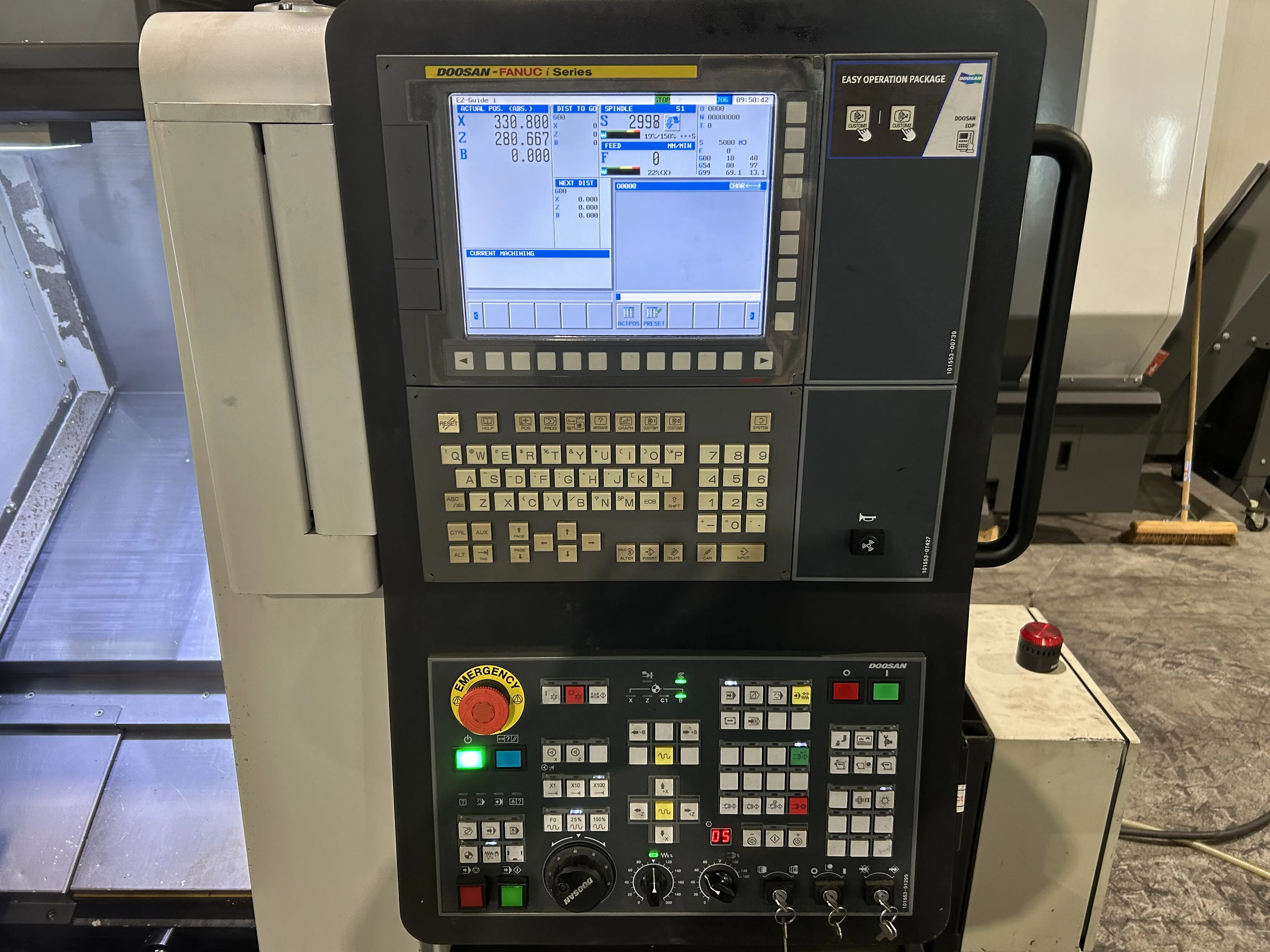

Control: Fanuc i Series
Hours: 6234
Swing over bed: 600mm
Swing over saddle: 400mm
Max. Turning diameter: 210mm
Max. Turning length: 330mm
Bar working diameter: 65mm
Spindle:

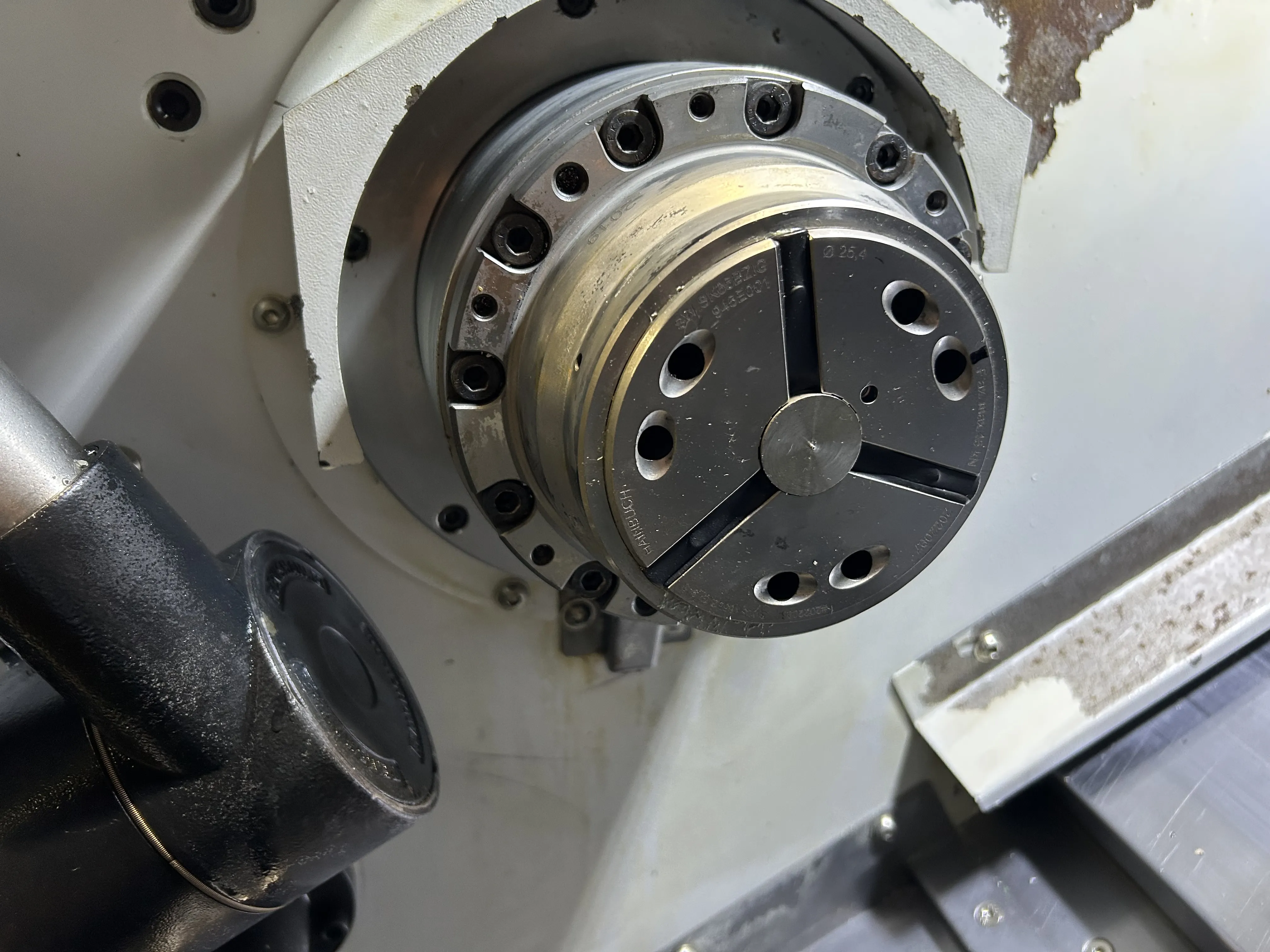

Chuck: Hainbuch Spanntop mini Anzug 65
Spindle speed: 4500rpm
Spindle nose: ASA A2#6
Spindle bearing diameter: 110mm
Spindle through hole diameter: 76mm

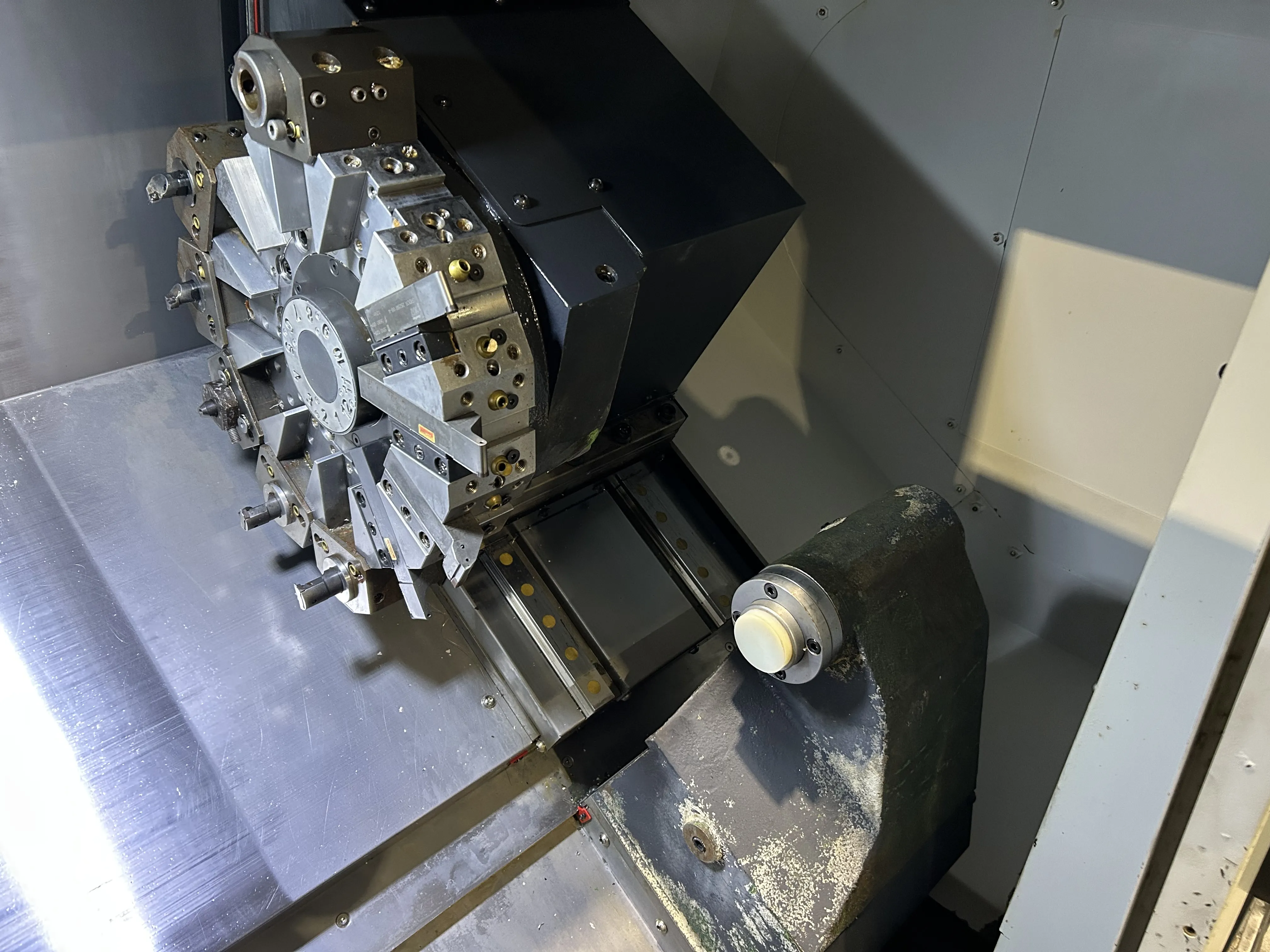

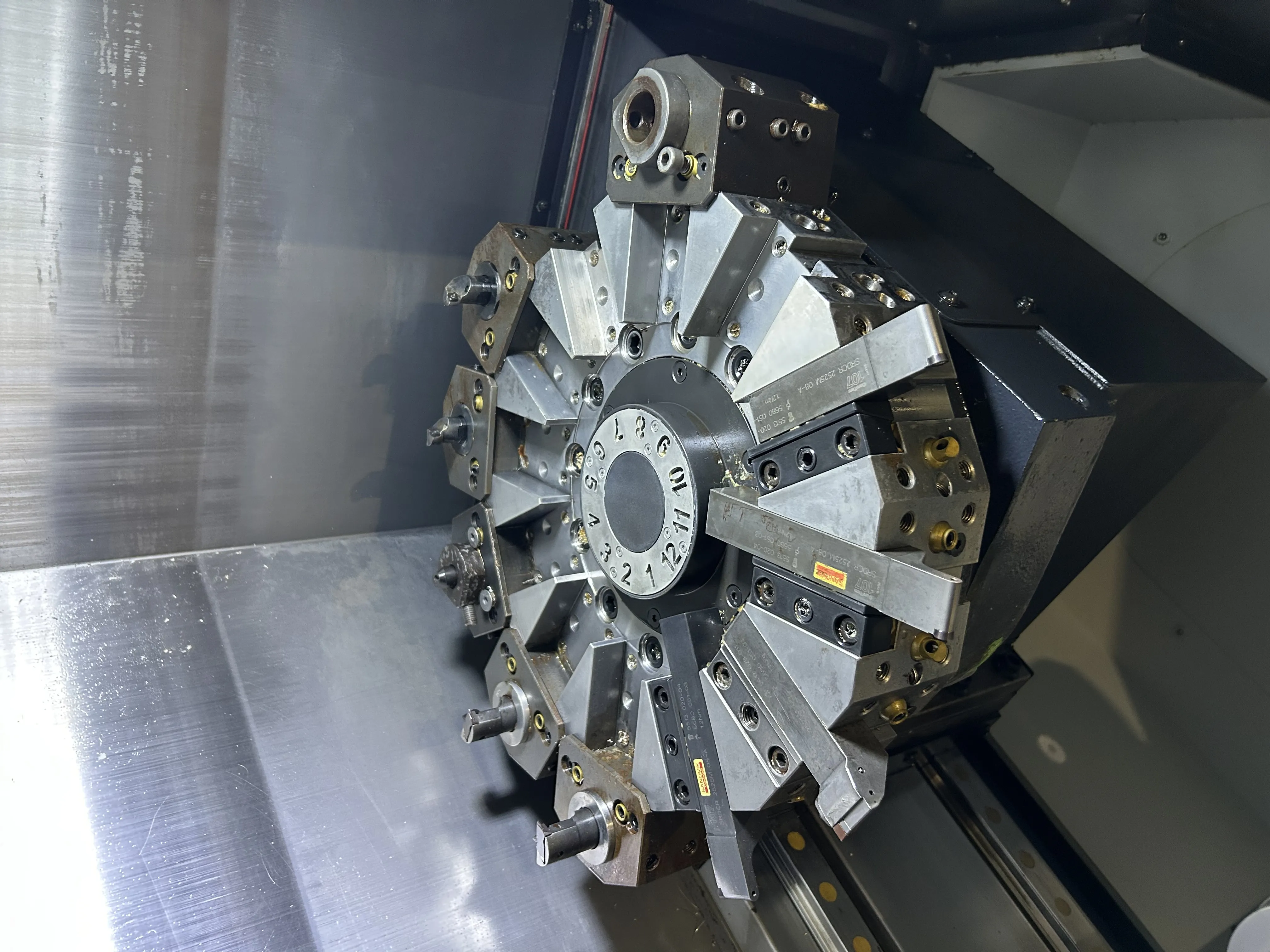

Turret:
No. of tool stations: 12
OD tool size: 25mm
Boring bar diameter: 40mm
Indexing time: 0.15 sec
Carriage:
X-axis: 205mm
Z-axis: 340mm
Rapid traverse X-axis: 30m/min
Rapid traverse Z-axis: 36m/min

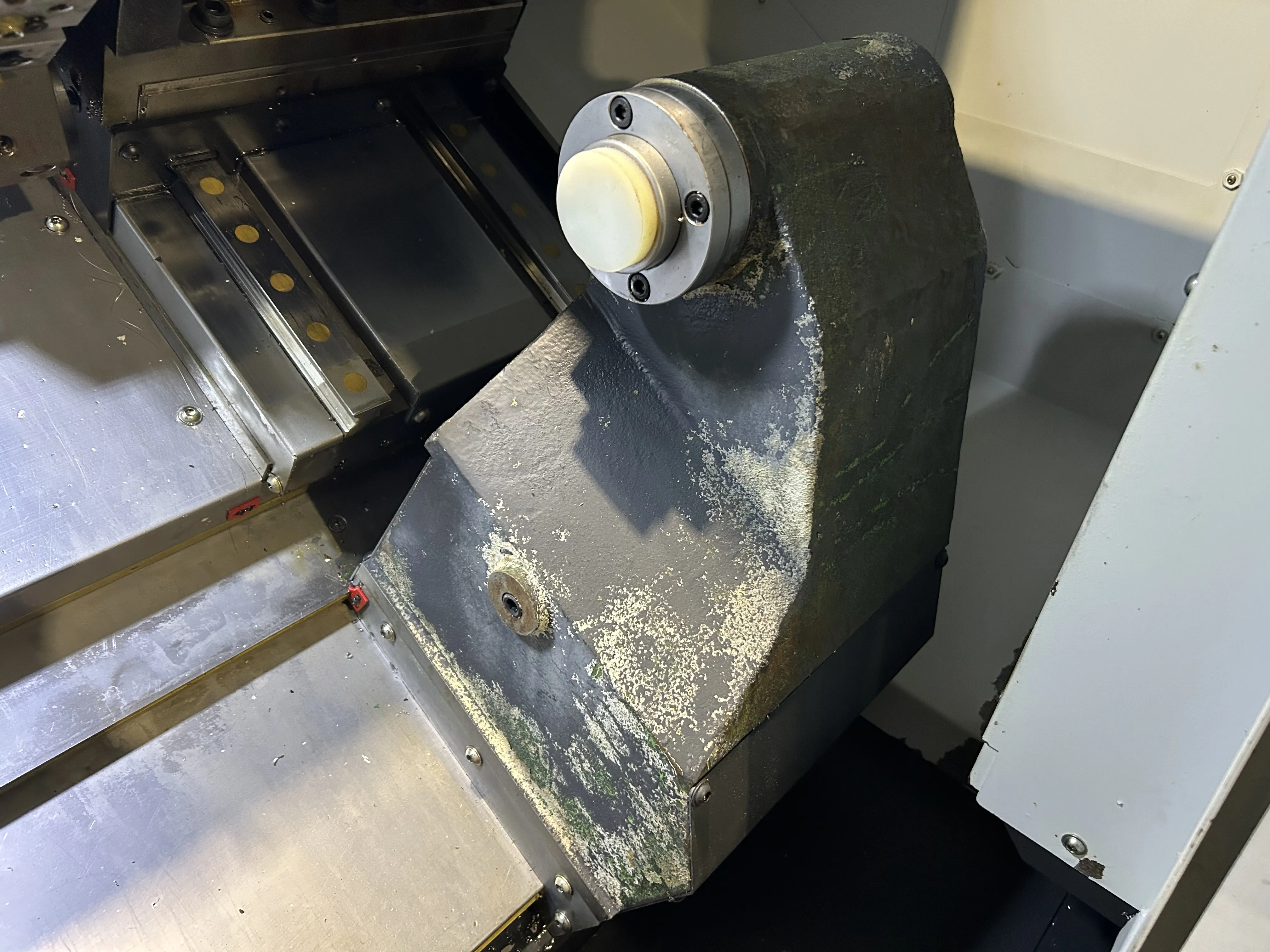

Tailstock:
Quill diameter: 80mm
Quill bore taper: MT#4
Quill travel: 360mm
Motors:
Main spindle motor: 15/11kW
Feed motor (X, Z-axis): 1,8kW
Power source:
Rated capacity: 24,21 kVa
Machine dimensions:
Machine length: 2350mm
Machine width: 1582mm
Machine height: 1693mm
Machine weight: 2750kg
Equipped with:
- EZ Guide
- Doosan tool load monitoring
- Ethernet function
- Part program storage 1280M(512kb)
- Bar feeder interface

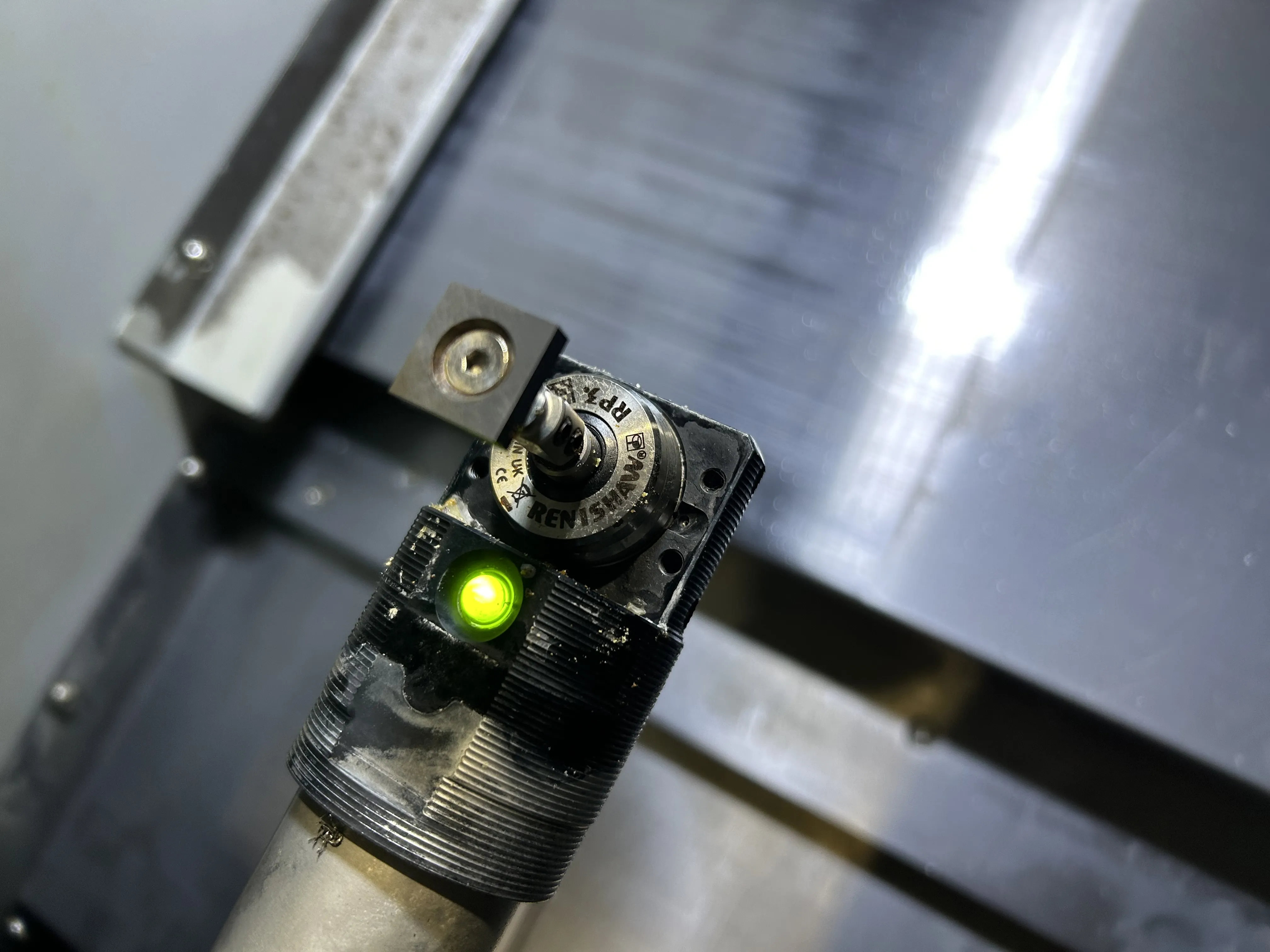

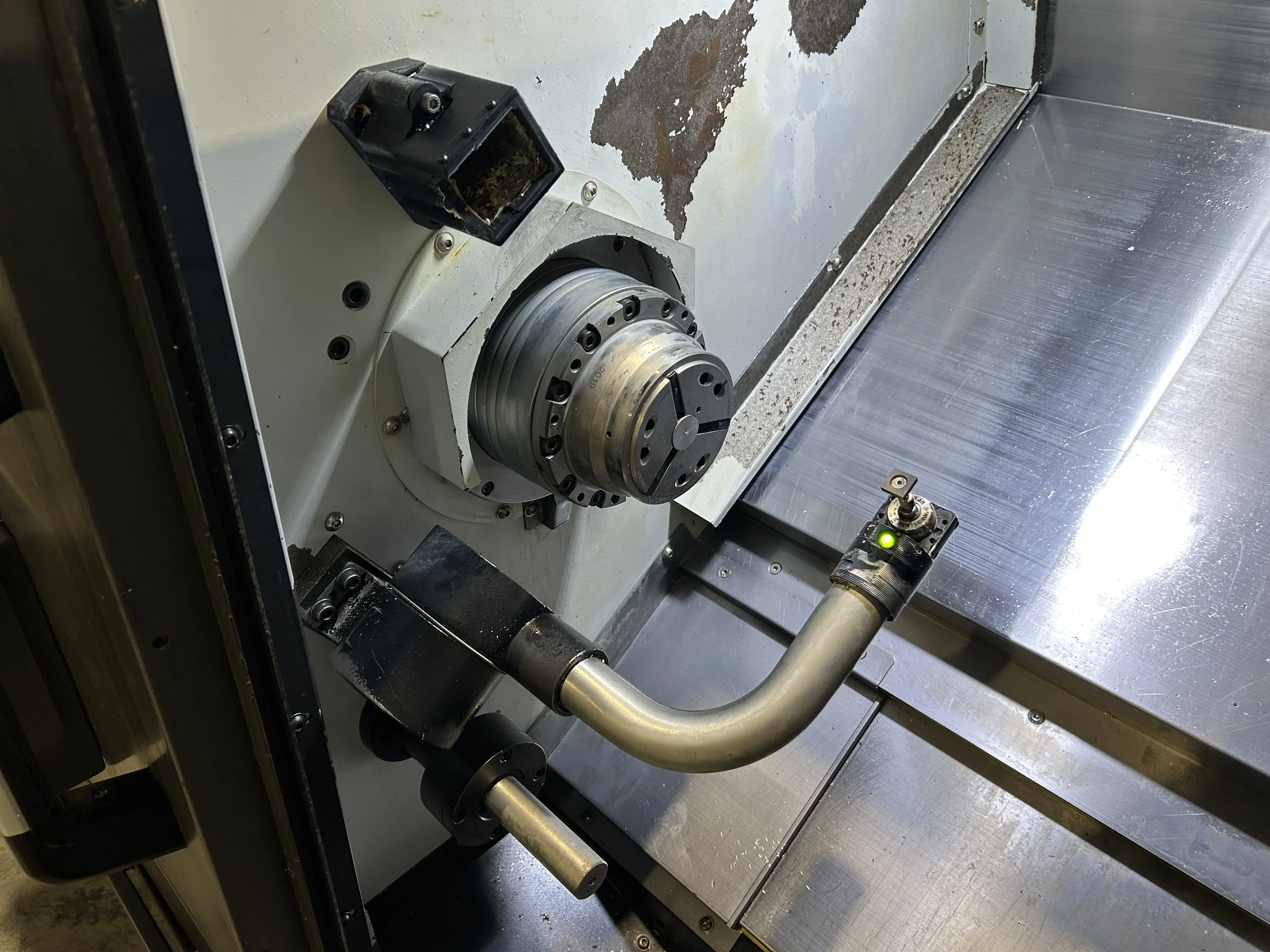

- Automatic tool pre-setter
- CNC tailstock
- 128 tool offsets
- Part catcher
