Bearbeitungszentrum - Vertikal
KONDIA
A6
Auf Anfrage
Condition
Gebraucht
Year of construction
2007
Availability
None
Category
Bohrwerke / Bearbeitungszentren / Bohrmaschinen
Location
Bayern - 89264 Weissenhorn
Retailer
Description
x-travel 600 mm
y-travel 400 mm
z-travel 510 mm

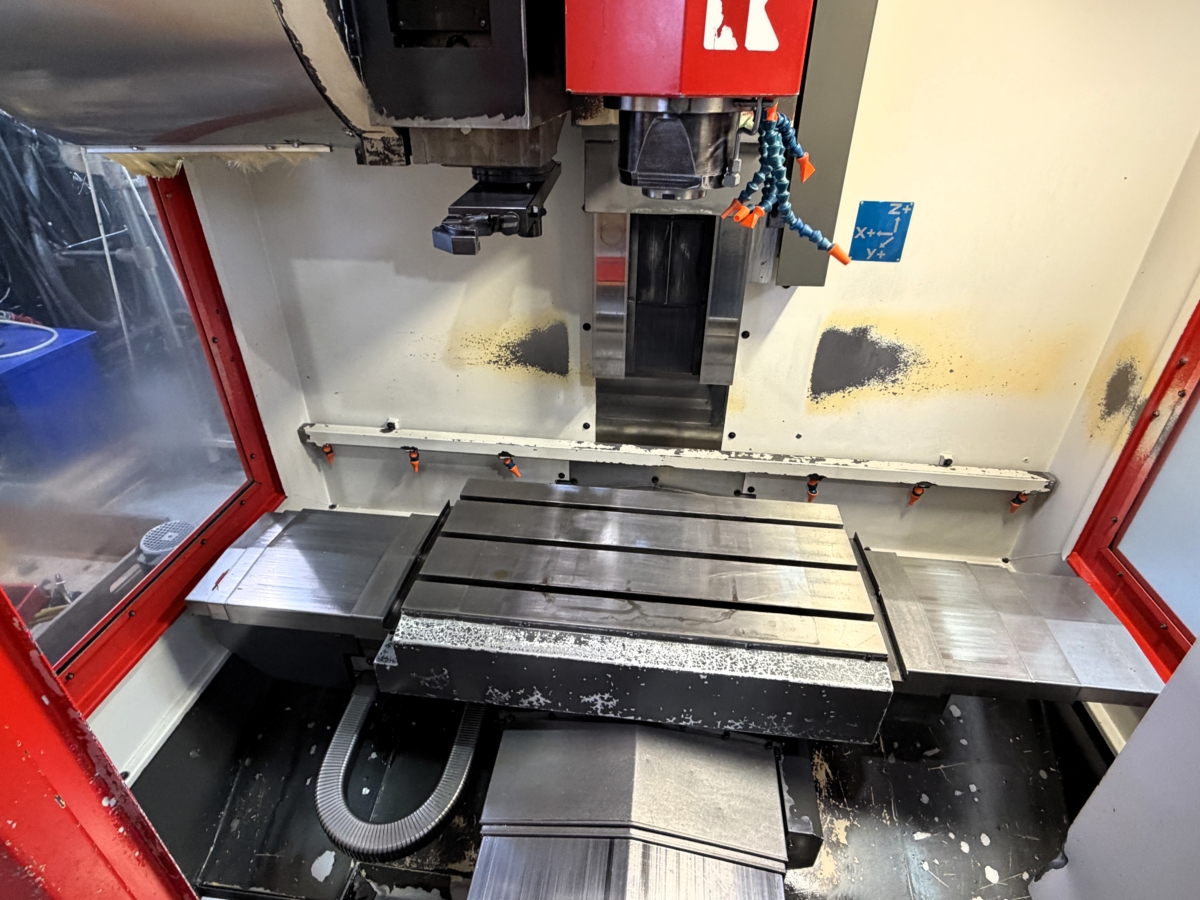

Table size 800 x 400 mm

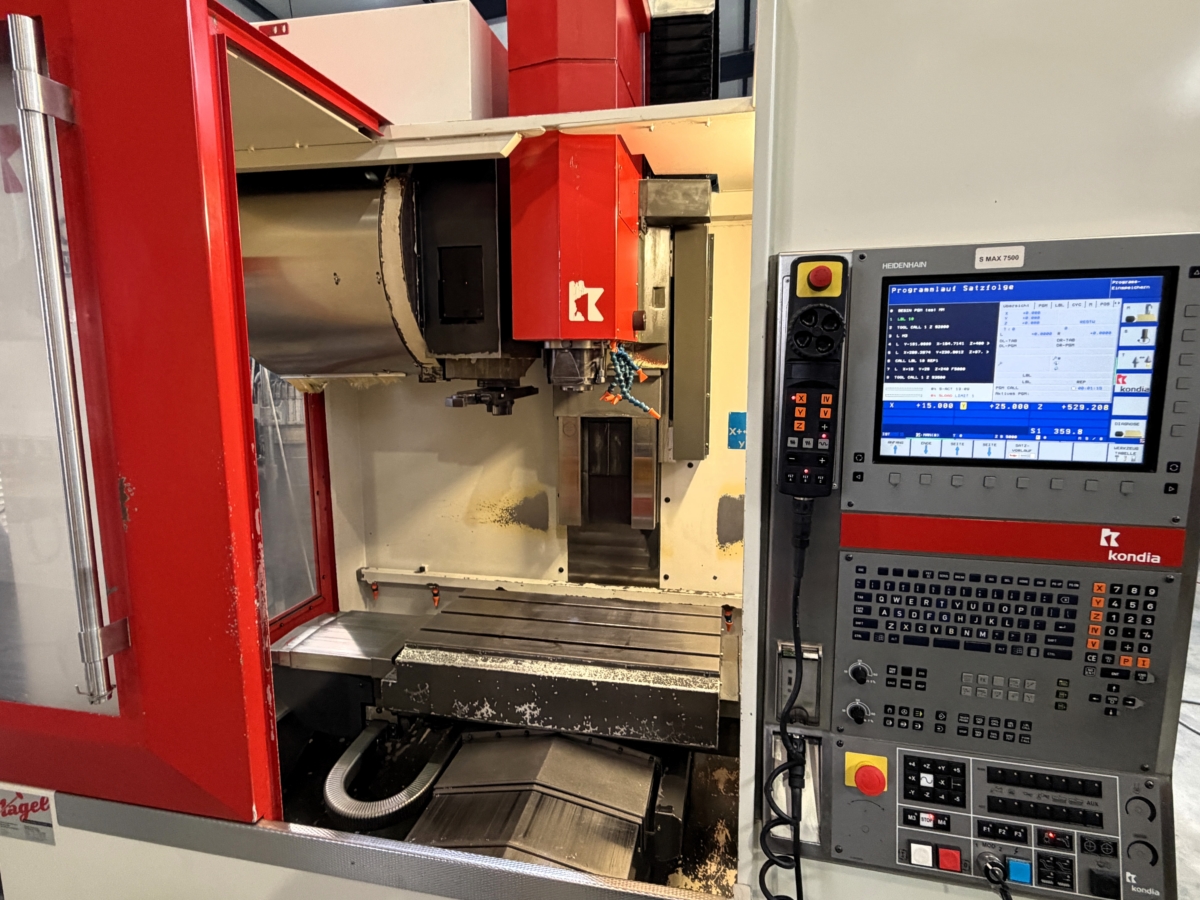

Control HEIDENHAIN iTNC 530
Spindle speeds - continuously variable 12,000 rpm
Feed speed, directly programmable 30,000 mm/min
Tool holder ISO40
Tool magazine: 20
Total power requirement 25 kW
Machine weight approx. 4.2 t
Space requirement approx. LTH 3.5 x 2.1 x 2.95 m
Control on = 32,790 h.
Spindle running time: 10,310 h.
including electric handwheel HEIDENHAIN
including electric measurer
including IKZ

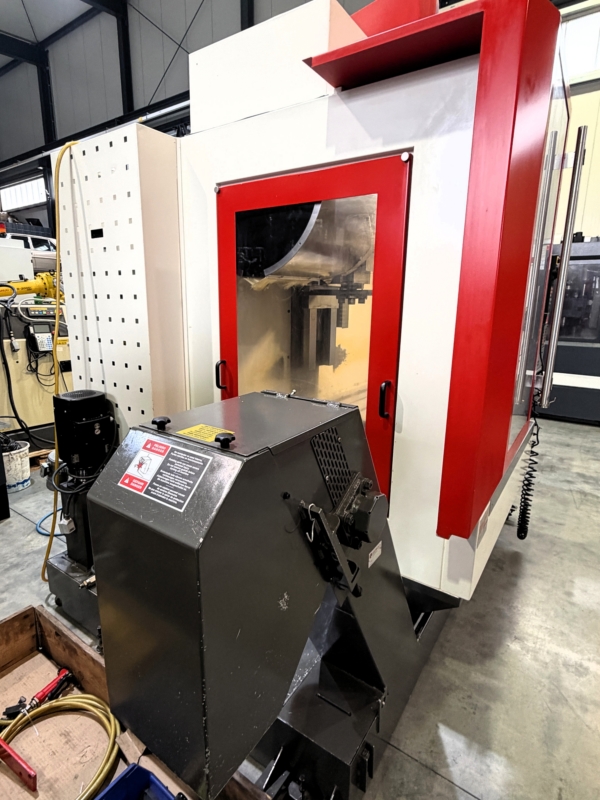

including chip conveyor

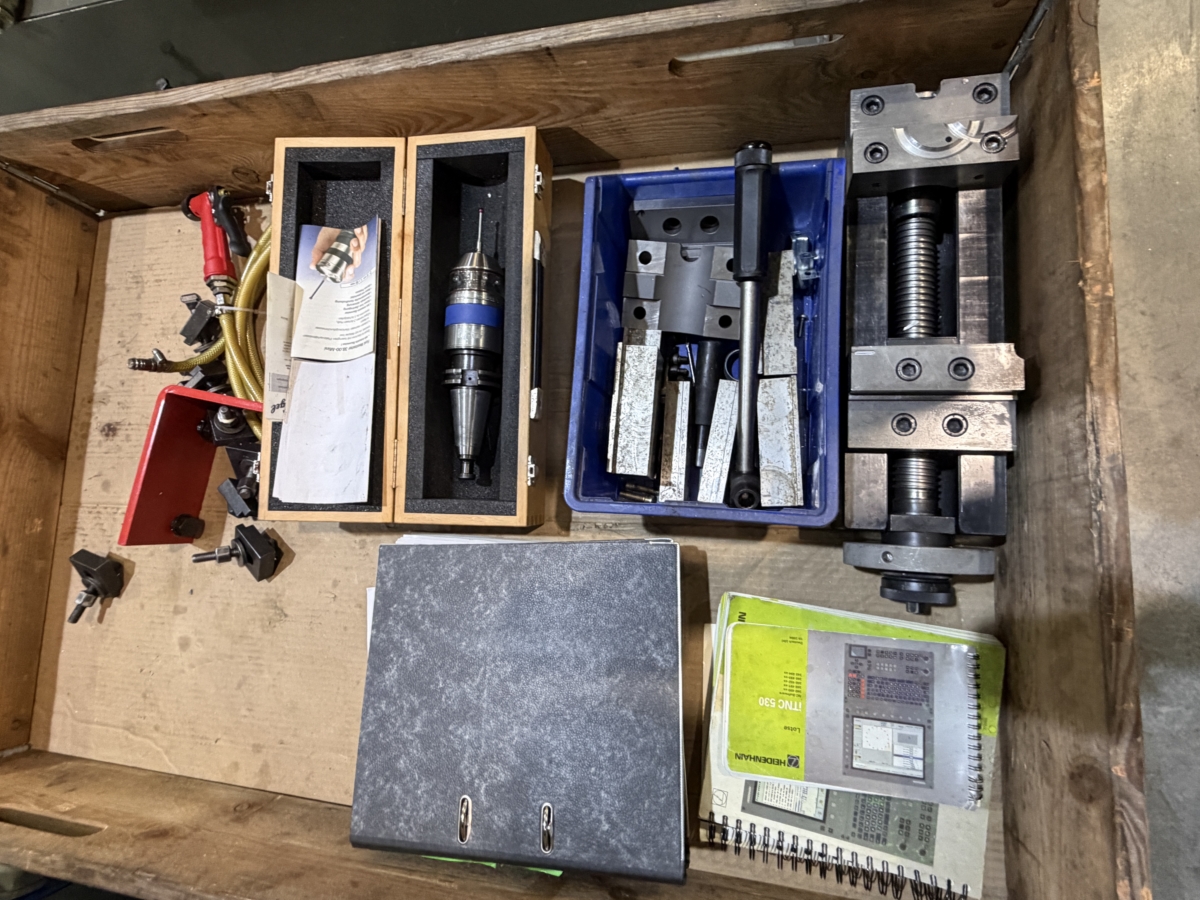

Includes machine screw Gressel gripos
including USB port
