Description

x-travel 1,060 mm
y-travel 610 mm
z-travel 610 mm

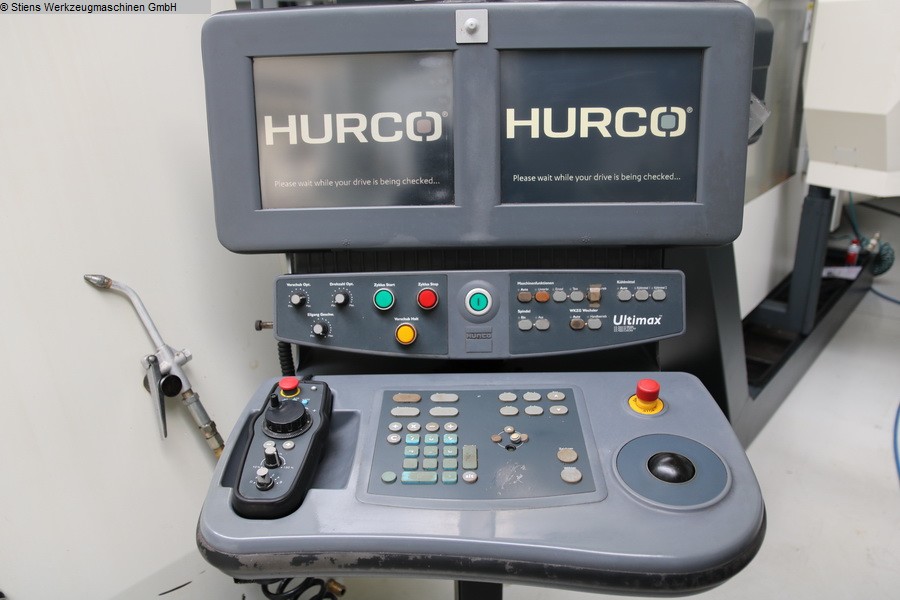

Control Winmax 9 (upgrade)

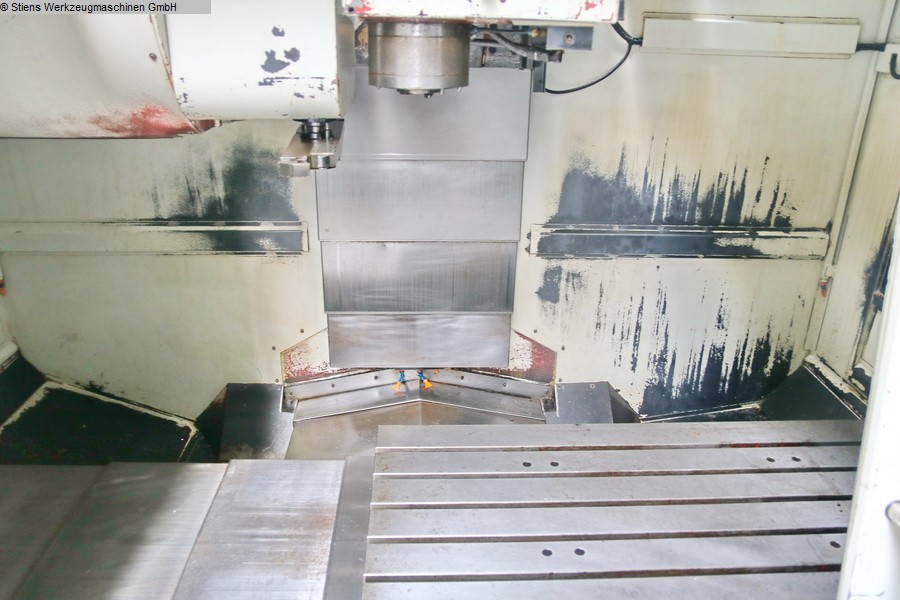

Table size 1,270 x 610 mm
max. Table load 1,100 kg
Number of T-slots 5
T-slots - width 18 mm
T-slots - distance 100 mm
Speed range - milling ~ 10,000 rpm
Drive power - milling spindle 18 / 11 kW
Tool holder SK 40
Tool changer 24 pos.
max. Tool diameter 80 mm
max. tool through. with a free neighboring box. 120 mm
max. Tool length 300 mm
max. Tool weight 7 kg
Feed ~ 15.4 m/min
Rapid traverse X-axis 30 m/min
Rapid traverse Y-axis 30 m/min
Rapid traverse Z-axis 20 m/min
Machine weight approx. 7.0 t
Space requirement approx. 3.5 x 3.2 x 3 m

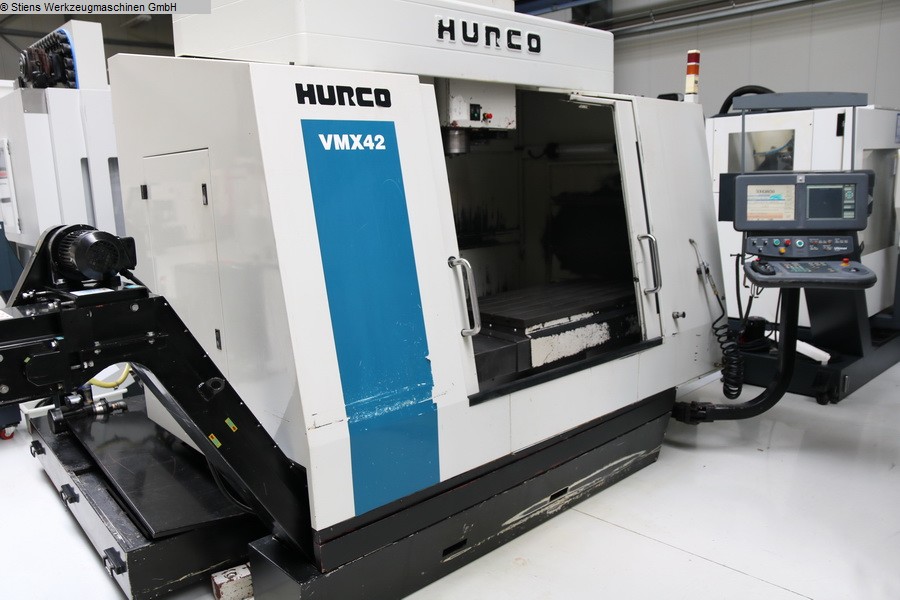

Machining center - vertical HURCO VMX 42
