Description

Turning diameter over bed 380 mm
Turning diameter over support 190 mm
Turning length 1000 mm
Bar passage 56 mm
Speed range 25 - 2000 rpm
Spindle nose A2-6
Total power requirement 4.0 kW
Machine weight approx. 1.5 t
Space requirement approx. LBH approx. 2.5 x 1.2 x 1.8 m

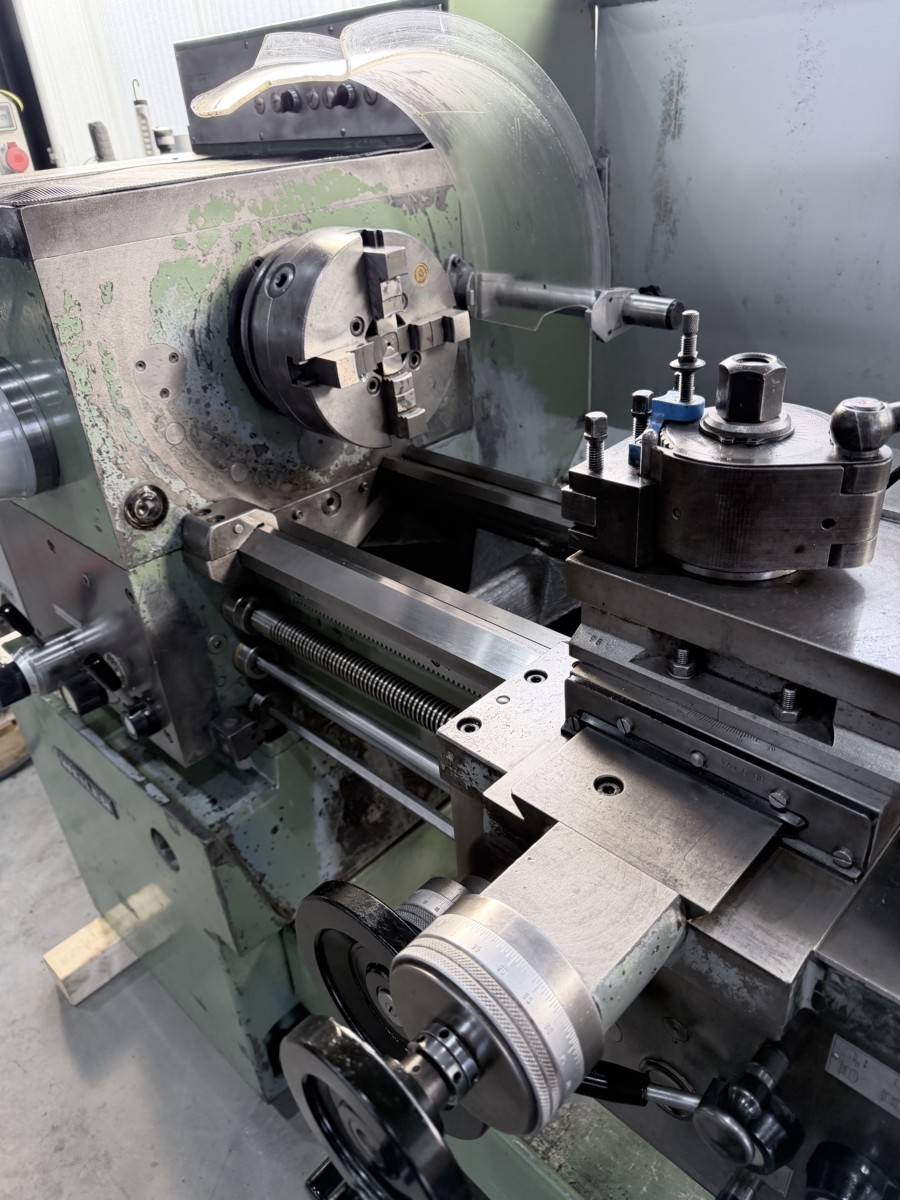

incl. 4-jaw chuck 200 mm including 3-jaw chuck RÖHM 200 mm including Multifix quick-release system including 3 cassettes including coolant pump with container including various turning tool holders including various small parts + tips Electric motor a little louder, should be reset if necessary Otherwise the gearbox runs quietly and the guides have no grooves etc.
