Description

x-axis 6,800 mm
y-axis 4,000 mm
z-axis 1,500 mm

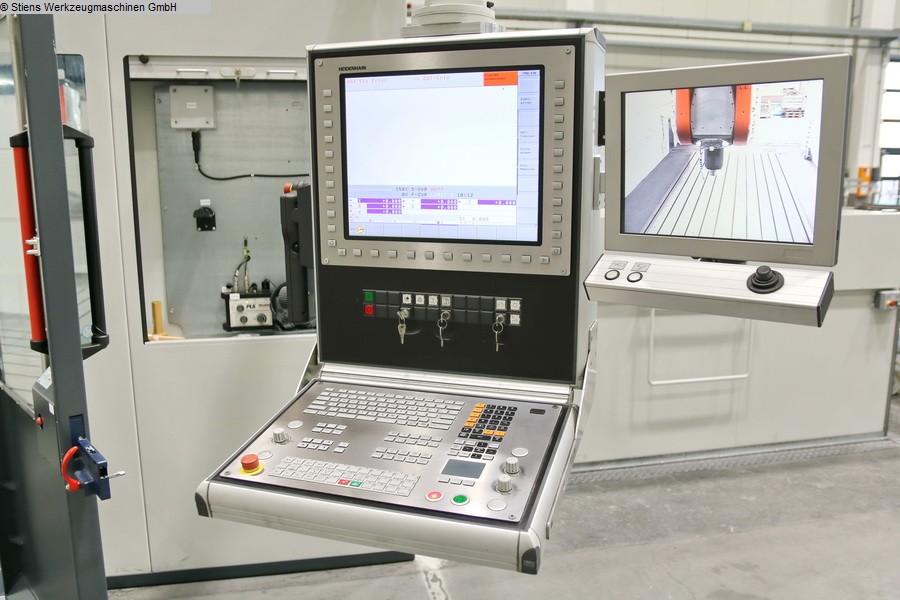

Control iTNC 530 HSCI Heidenhain
Passage between the stands max. 5,090 mm
Distance from spindle center to table 1,825 mm

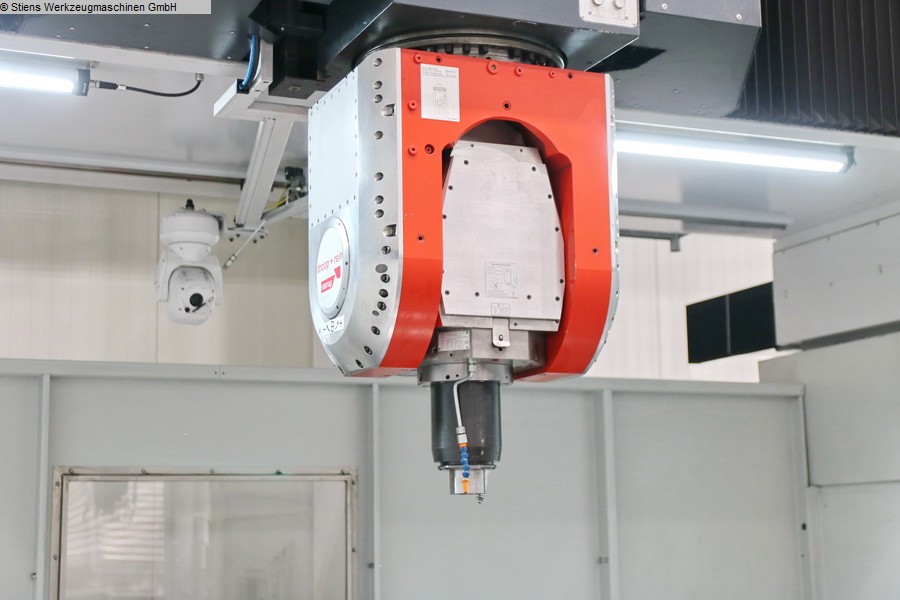

Main spindle:
Type 175149A-0007
Speed range - main spindle max. 19,800 min/-1
Drive power - main spindle 20 kW
Max. Torque - Nm
Tool holder HSK-A63
swivel B: +115° / -115 °
rotatable C: +/- 200 °
Main spindle:
Type 178099-0005
Speed range - main spindle max. 10,020 min/-1
Drive power - main spindle 20 kW
Max. Torque - Nm
Tool holder HSK-A100
swivelling B: +115° / -115 °
rotating C: +/- 200 °

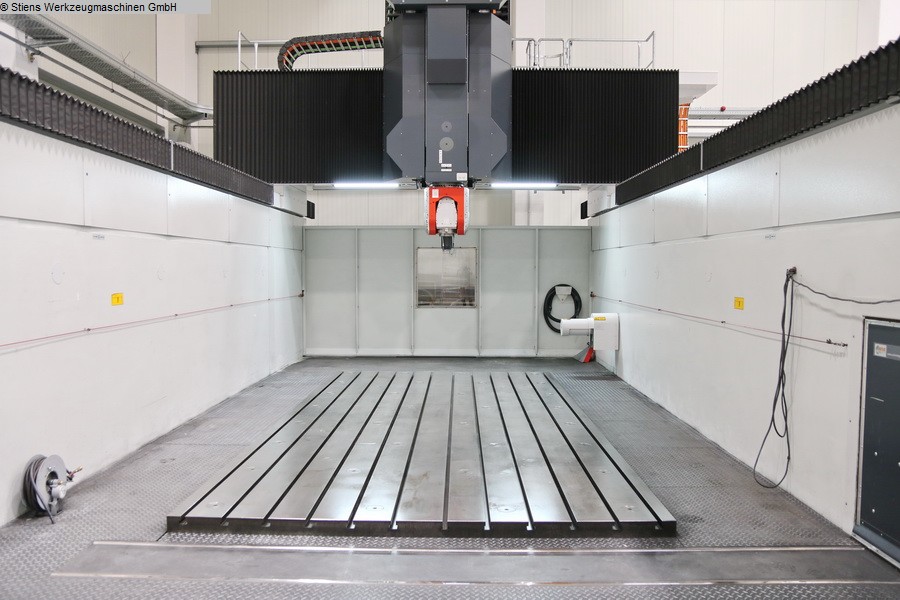

Work table:
Table clamping surface 6,000 x 3,000 mm
max. Table load 50.0 t
Height above floor 100 mm
Number of T-slots 12
T-slots - width 28H12 mm
T-slots - distance 250 mm
Tool changer:
Number of tool places 62 (38+24) pos.
Number of tool places HSK A63: 37+1 pos.
Number of tool positions HSK A100: 23+1 pos.
max. Tool diameter HSK A63: 52 mm
max. Tool length HSK A63: 250 mm
max. Tool weight HSK A63: - kg
max. Tool diameter HSK A100: 80 mm
max. Tool length HSK A100: 450 mm
max. Tool weight HSK A100: - kg
Feeds:
Rapid traverse (X/Y/Z) 40,000 mm/min
Rapid traverse B/C: 4,320 °/min
Feed speed 3.2 m/s²
Travel paths:
x-axis 6,800 mm
y-axis 4,000 mm
z-axis 1,500 mm
b-axis +115° / -115 °
c-axis +/- 200 °
Total power requirement 180 kVA
Machine weight approx. - t
Space requirement approx. 12.5 x 15.0 x 7.0 m

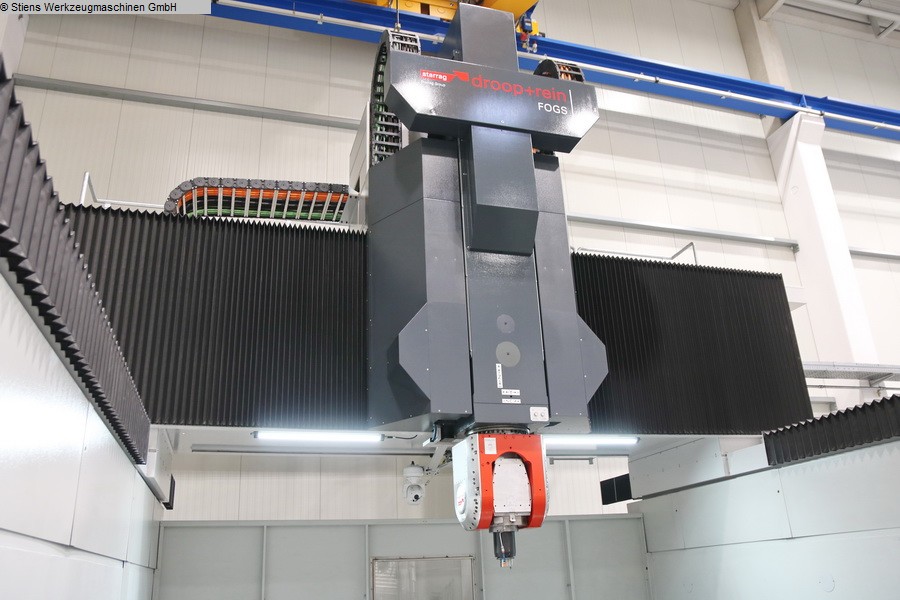

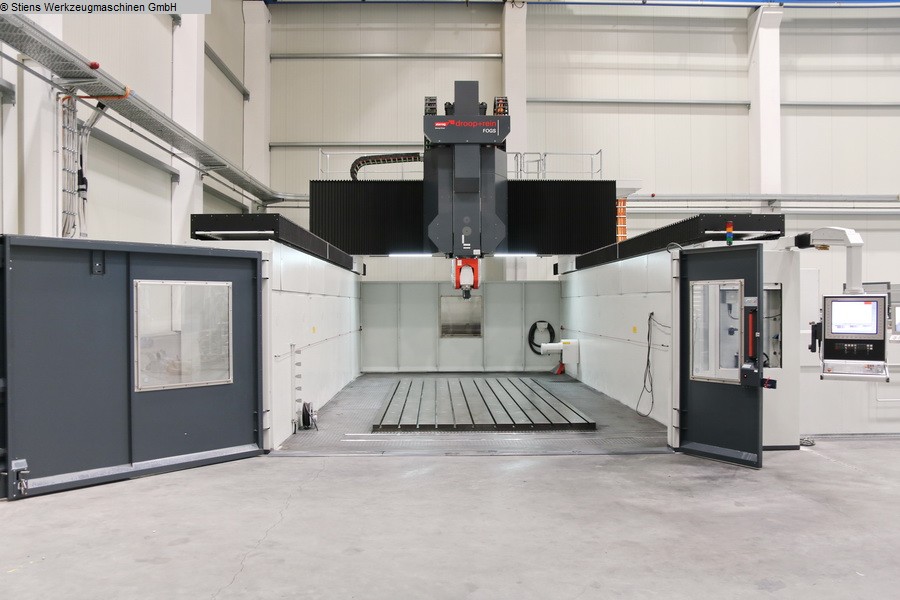

5-axis high-speed gantry large machining center DROOP + Pure - FOGS 40 60 C - Clevis
