Description

TECHNICAL DATA

Drilling capacity in steel St 60 - 40 mm, drilling capacity in cast iron 46 mm, drilling capacity in St 60 - 50 mm, thread cutting in St 60 - M 30
Thread cutting in GG 20- M 36

DESCRIPTION

Standard equipment:

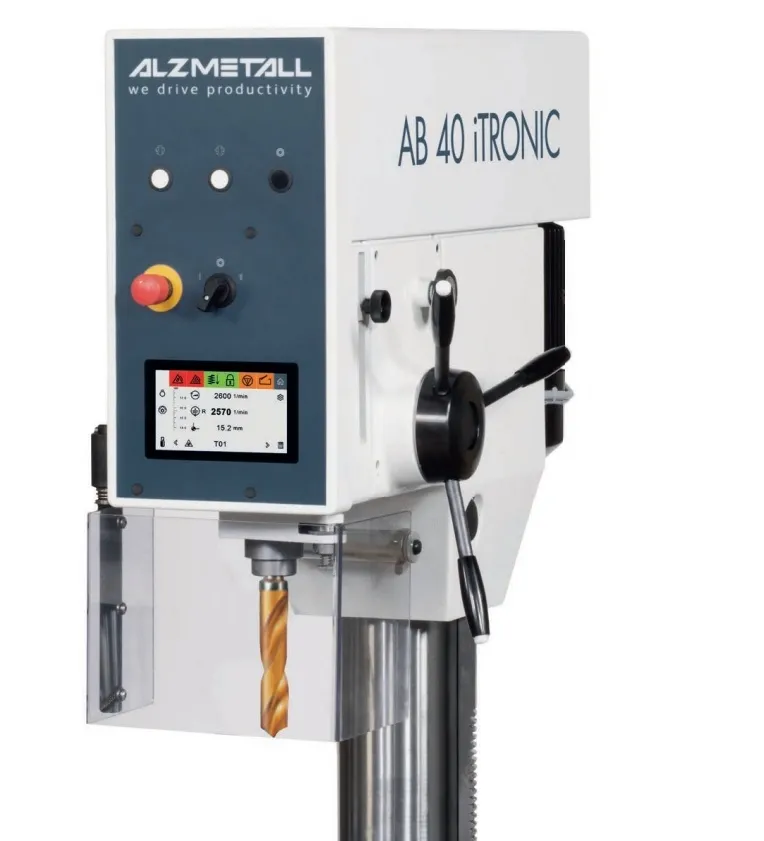

7″ TFT – LCD display with touch function: manual input of spindle speed Setpoint, speed display actual value, integrated drilling depth display with touch
Zero point transfer, virtual drilling depth scale on the display, machine
Status displays and warnings in the display, service information, selectable
User language: DE/EN/FR/ES/IT/NL/RU

– Thread cutting device, for thread cutting with stop, max. 6
Thread/min (thread cutting performance dependent on spindle speed), thread depth
adjustable via depth stop and in the TFT – LCD display (3 tools)
– Infinitely variable speed adjustment
– Automatic speed control
– Spindle protection with electrical fuse
– Three separate buttons for clockwise – counterclockwise – stop
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Main switch, lockable
– Clockwise and anti-clockwise rotation through contactor control
– Control voltage 24 volts
– Protection class IP 54
– Paint finish: DD structured paint signal white RAL 9003, PANTONE 7545c, black
– Electromagnetic feed clutch with overload protection and electrical
Comfortable cross-grip switching
– Machine oil initial filling: oil bottle, loose delivery
