Description

TECHNICAL DATA

Drilling capacity in St 60 - 14 mm, thread cutting in St 60 - M 10
Short spindle MK 2, spindle speed 230-4,000 rpm. , spindle stroke 80 mm

DESCRIPTION

Standard equipment:

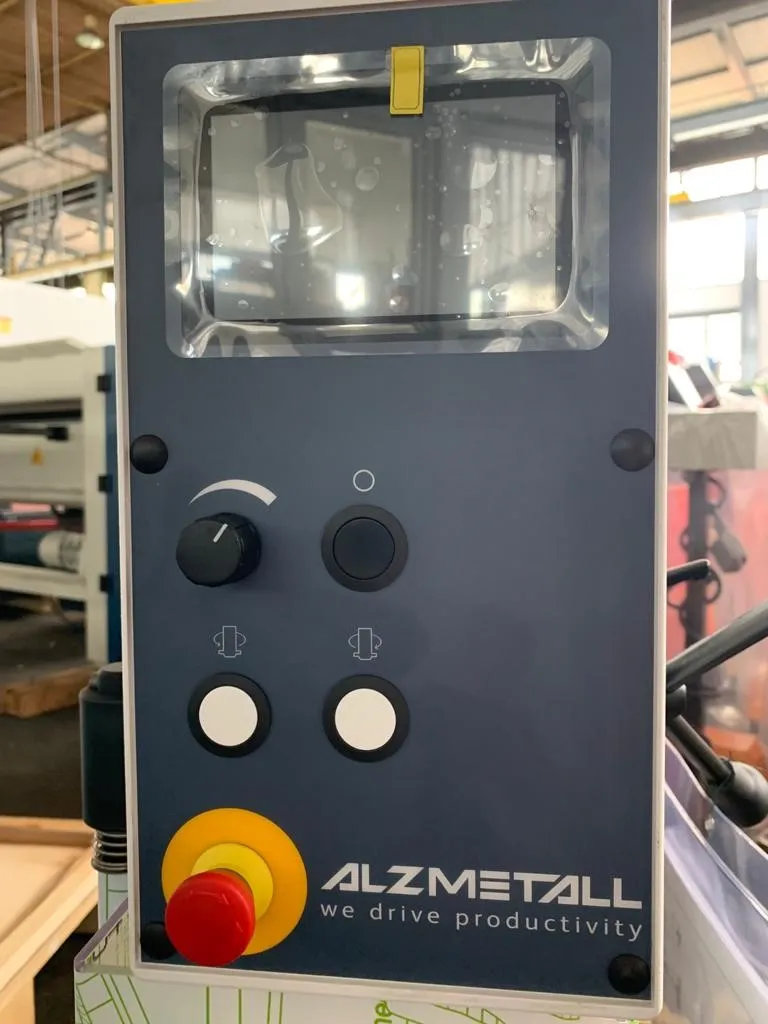

5 TFT – LCD display with touch function: manual input of spindle speed Setpoint, speed display actual value, integrated drilling depth display with touch
Zero point transfer, virtual drilling depth scale on the display, machine
Status displays and warnings in the display, service information, selectable
User language: DE/EN/FR/ES/IT/NL/RU.

– AC motor 230 volts, 50 Hz
– Connection plug fully assembled, cable length 3 m
– Infinitely variable speed adjustment using a potentiometer
– Three separate buttons for clockwise – counterclockwise – stop
(Spindle stop by braking function)
– Spindle protection with electrical fuse
– Mushroom pushbutton (latching) for EMERGENCY STOP
– Main switch, lockable
– Control voltage 24 volts
– Protection class IP 54
– Paint finish: DD structure paint signal white RAL 9003, PANTONE 7545c, black

Item 37.6

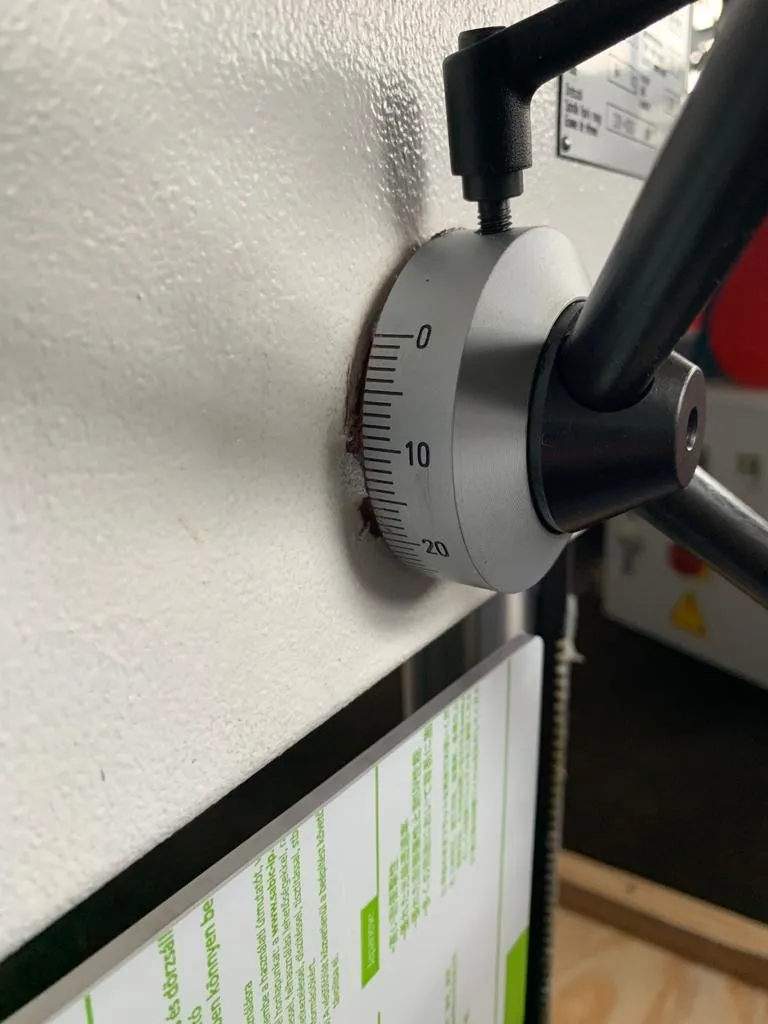

MAXIMUM DRILLING DEPTH INDICATOR
as a measuring function for the current drilling depth
