Description

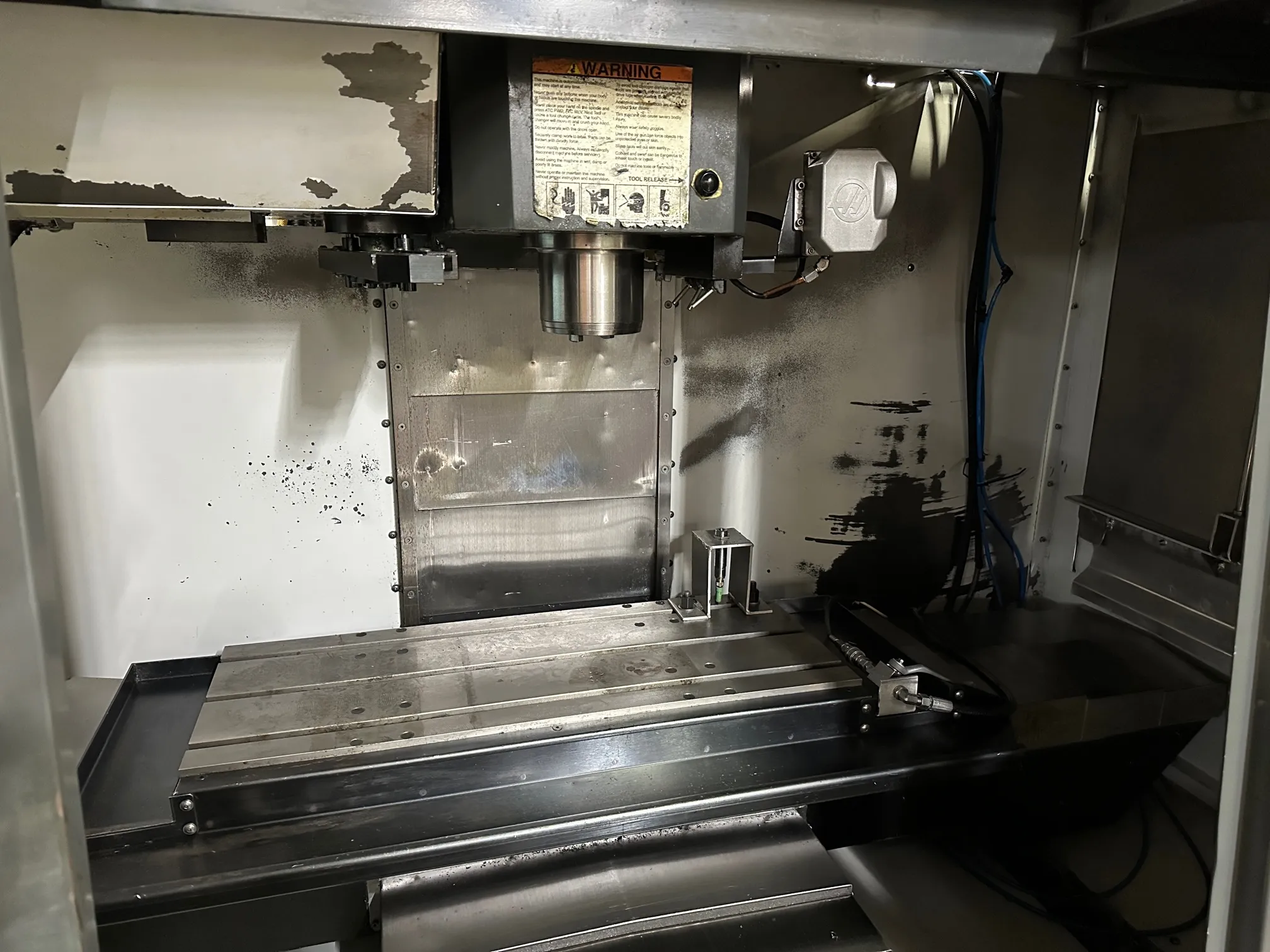

Machining center vertical

Haas VF 2 SS
Year of construction: 2010
Spindle speed range 12000 1/min
Number of axes 5
Travel path
Y-axis travel 762 mm
Z-axis movement 406 mm
V-axis movement 508 mm
Maximum table load 680 kg
External length 914 mm
External width 356 mm
Number of table slots 3
Distance between grooves 125 mm
Tool magazine 30 places
Fast tool changer, with heavy duty function
SK40 main spindle
Chip conveyor
IKZ 24 Bar
Extra filter for IKZ coolant
Compressed air for tool cooling through the spindle

Machine dimensions:
Dimensions width 2789 mm
Dimensions depth 2357 mm
Dimensions height 2654 mm
Weight of the machine 3539 kg

Internal reference number: IN418N
