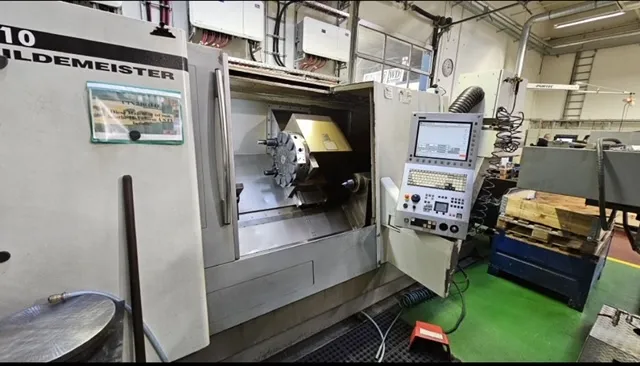

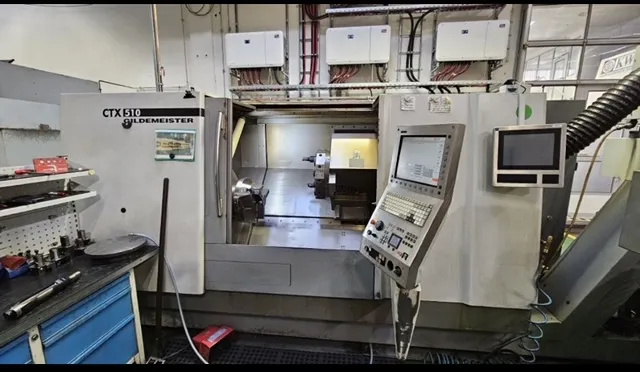

CNC lathe Gildemeister CTX 510 V

Year of construction: 2007

Turning diameter:  max. 465 mm
Turning length: 1050 mm
Circulating diameter: 680 mm
Chuck diameter:  325 mm
x-travel: 300 mm
Z-travel: 1,050 mm
C axis:  360°

Spindle bearing diameter: 120 mm
Spindle bore: 100 mm
Max. Bar diameter:  90 mm

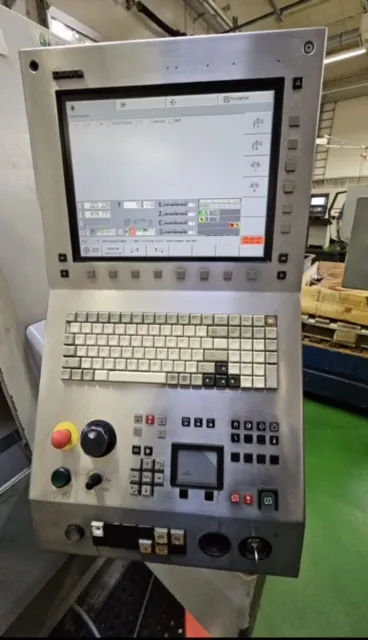

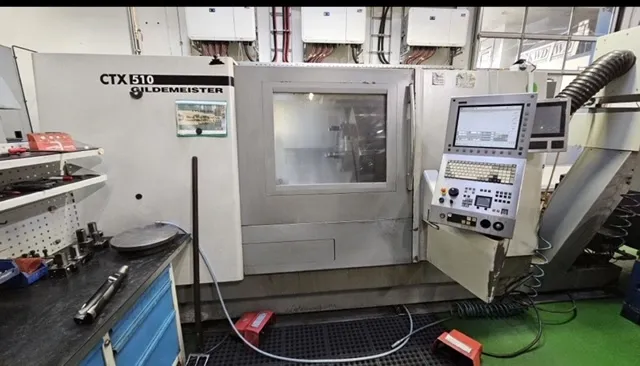

Control:Heidenhain Plus IT

Main spindle
Speed ​​range:  max. 3,500 rpm
Drive power:  33 kW
Torque:  max. 630 Nm

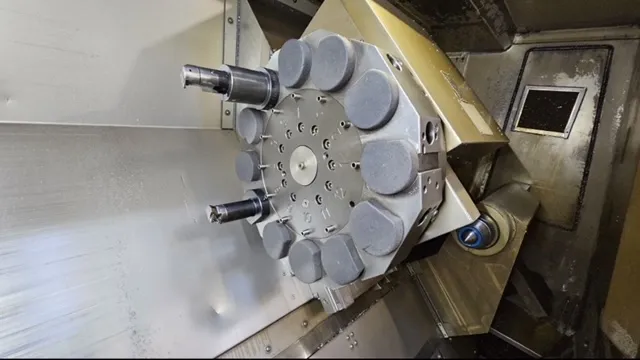

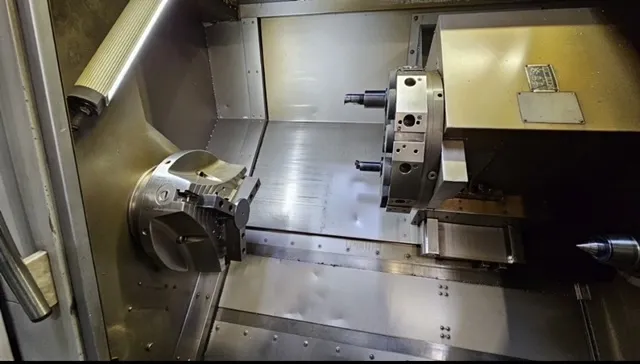

Tool turret
Number of tool positions:  12 positions
Tool holder:  VDI 40
Powered tool stations:  12
Speed ​​driven tools: max. 4,000 rpm
Drive power of powered stations: 8.4 kW
Torque:  max. 20 Nm

Tailstock travel:  850 mm
quill stroke: 150 mm
Tailstock mount:  MK 5
Rapid traverse X / Z: 30 m/min

MACHINE DETAILS

Total power requirement:  50 kVA
Machine weight:  9,000 kg
Space requirement: 6.5 x 3.0 x 2.2 m


Spindle hours: 25,000
