Description

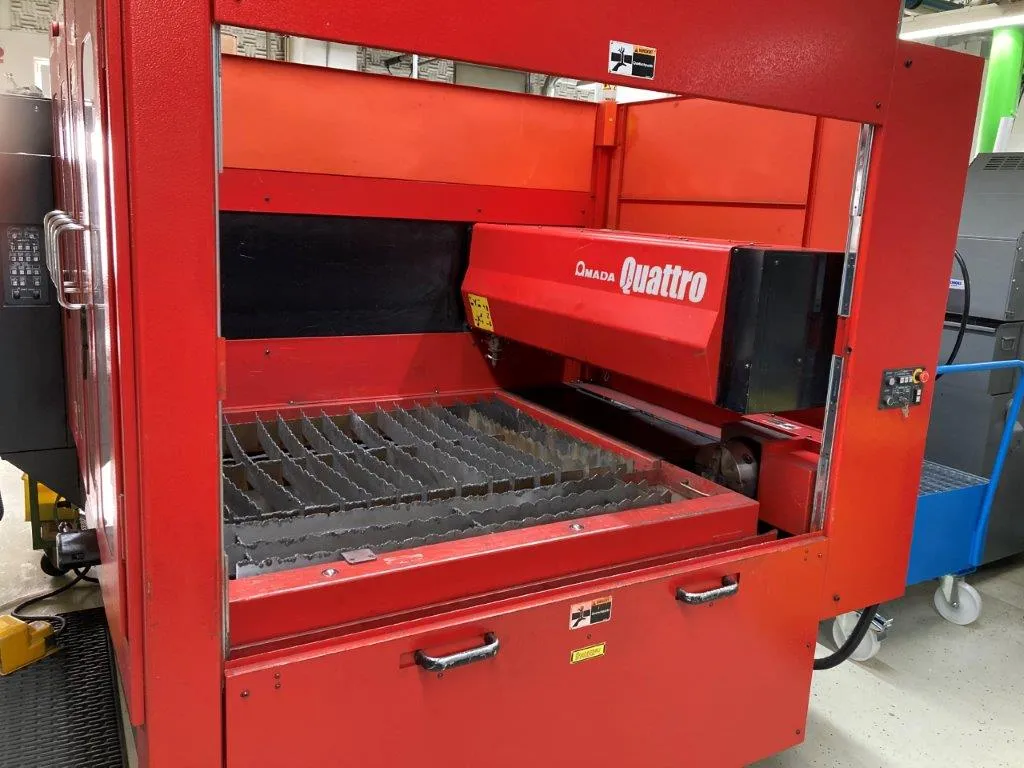

Amada Quattro 2 KW

Year of construction: 2011

Machine hours: approx. 17,000 hours

Technical data

Max. Travel range X / Y / Z: 1260 x 1260 x 100 mm

Max. Sheet thickness: 12 mm

Max. Table load: 160kg

Positioning speed X / Y axis simultaneous axis: 42 m/min

Positioning accuracy: +/-0.01 mm

Electrical connection: 400 V, 50 Hz, 3 phases

Total connected load: 70 kVA

Air requirement: 20 m3/h

Machine weight: 4,200 kg

Control:

Model: Fanuc FS 160iL

Screen: 10“ LCD

Interfaces: RS 232C

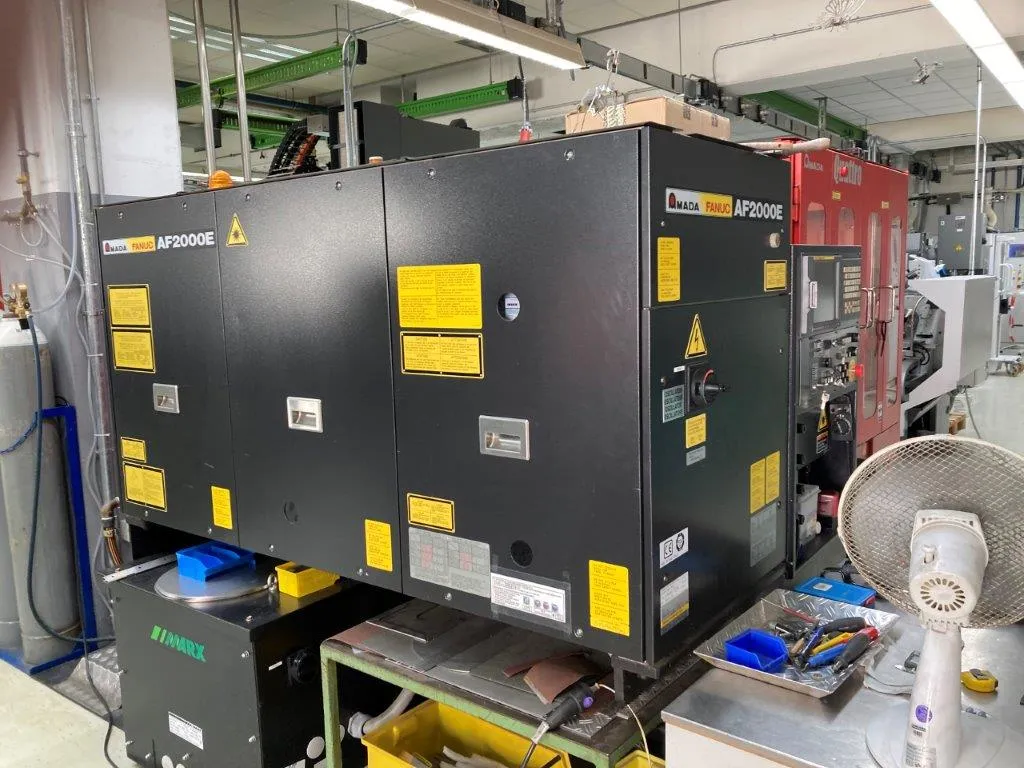

Resonator:

Type: Fanuc AF 2000

Laser power: 2000 watts

Laser wavelength: 10.6 µm

Special features:

- HS-2003 sensor cutting head

- High pressure cutting device (Clean Cut)

- Aluminum cutting device (Alu Cut)

- Extraction system

- Cooling unit
