Description

Amada HDS 1030 NT

Year of construction 2009

Machine hours: approx. 18,000h

Pressing force: 1000 kN

Folding length: 3,100 mm

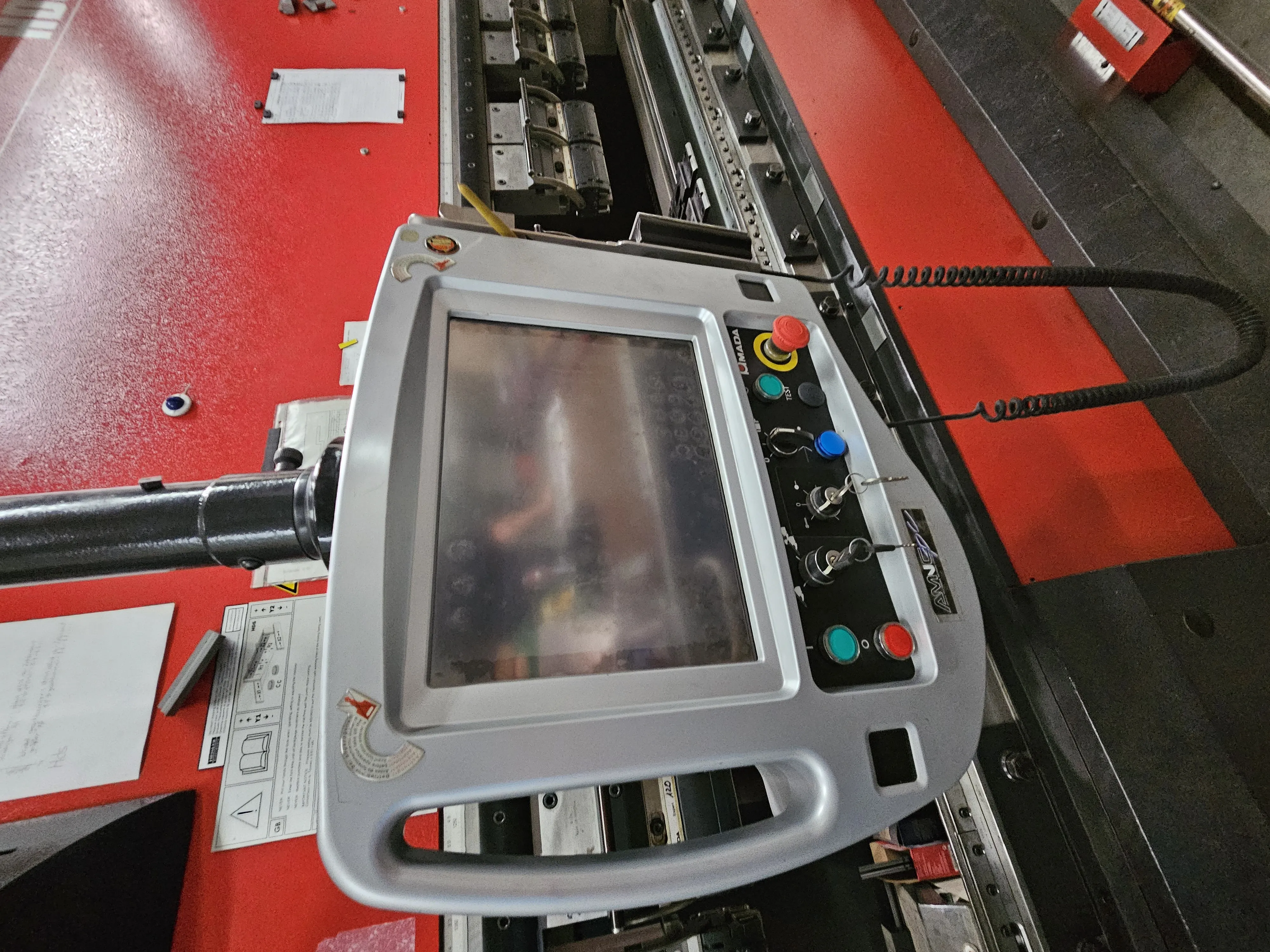

AMADA AMNC control

Fiessler AKAS safety device

Technical data:

Pressing force 1000 kN

Drive                                                                    Servo-hydraulic

Deflection compensation                                                  active hydraulic cylinders

Folding length                                                                     3000 mm

Passage between the machine stands                        2700 mm

Throwout                                                                           415 mm

Stroke                                                                                    200 mm

Installation height                                                                   500 mm

Width of the work table                                                       60 mm

Number of controlled axes                                    7

Speed of delivery/return stroke                                    200 mm/s

Speed max. work                                                        20 mm/s

Connected load                                                           15 kW

Oil volume                                                                    57 l

Weight 8,700 kg

Dimensions:

Length L:         4,515 mm

Depth D:          2,935 mm

Height H:         2,850 mm
