CNC Vertikaldrehmaschine

WEISSER

UNIVERTOR A-90 R

Auf Anfrage


Condition

Gut (gebraucht)

Year of construction

2004

Availability

Sofort

Category

Sonstige

Location

Hornberg, Deutschland


Description

CNC vertical lighting machine

  • manufacturer: Weisser
  • Type: Unevertor A-90 R
  • year of construction: 2004
  • machine number: 177055919
  • Control: Siemens Sinumerik 840 d
  • feed diameter: max. 210 mm
  • rotary diameter: 400 mm
  • workpiece length: 120 mm
  • Mobile X-axis: 1130 mm (total procedure)
  • X-axis driving (way to work): 400 mm
  • Z-axis driving: 280 mm
  • Rait X-axis: 60000 mm/min
  • Rait Z-axis: 30000 mm/min
  • Motorsspindel:
  • Spindle diameter in the front bearing: 90 mm
  • spindle speed:
  • rotating spindle speed range continuously: max. 6000 rpm

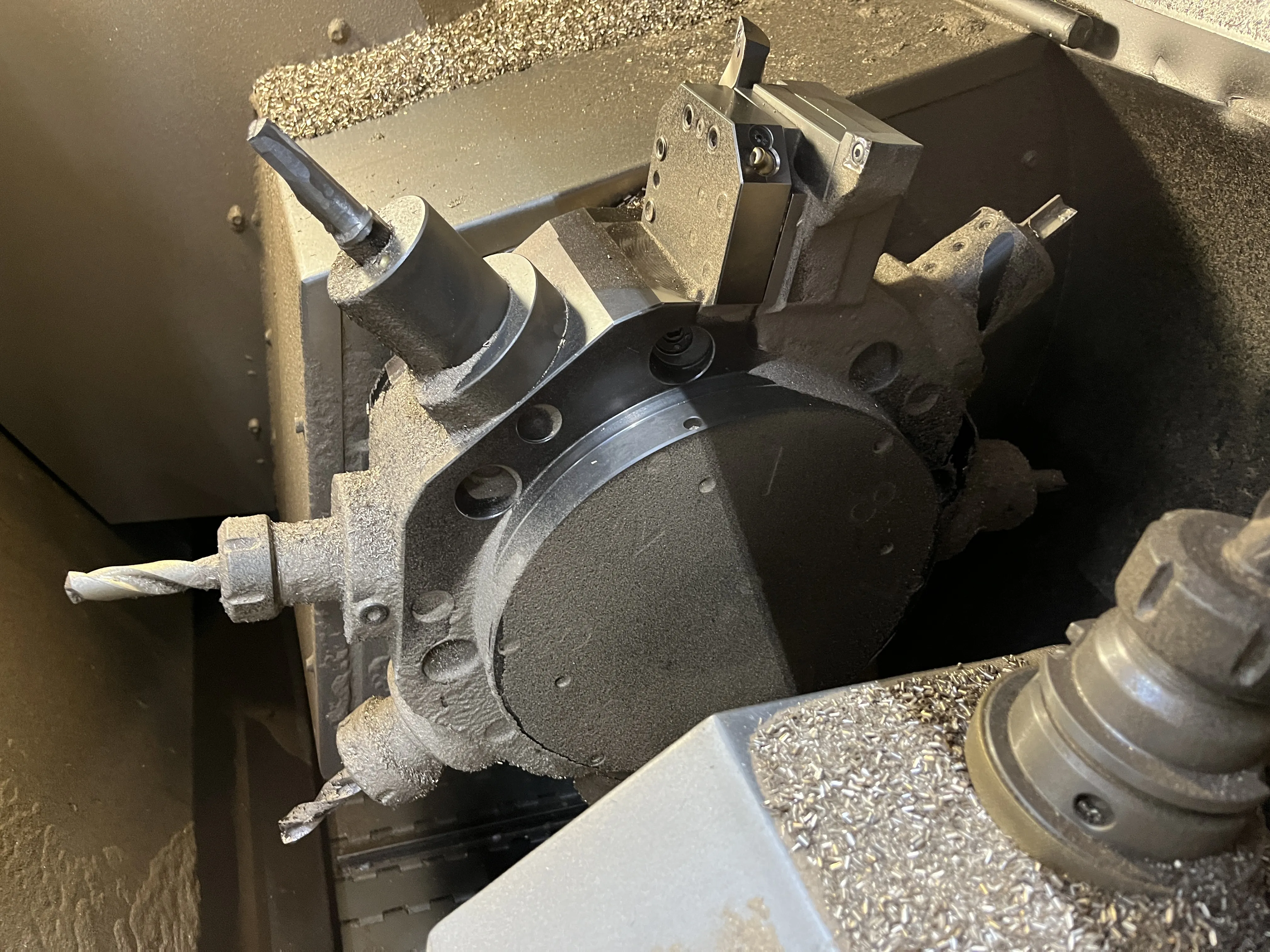

  • disc revolver with recording for driven tools: 8 pieces
  • shaft diameter: 40 mm
  • Spindle speed: max. 4000 rpm
  • torque: max. 50 nm
  • Work area with vertical drilling spindles
  • Number of drilling spindles: 3
  • Spindle speed: max. 5000 rpm
  • drive power: 16 kW
  • torque: max. 83 nm
  • incl. 8-fold tool revolver and a power clamping feed (diameter: approx. 250 mm) of the manufacturer SMW

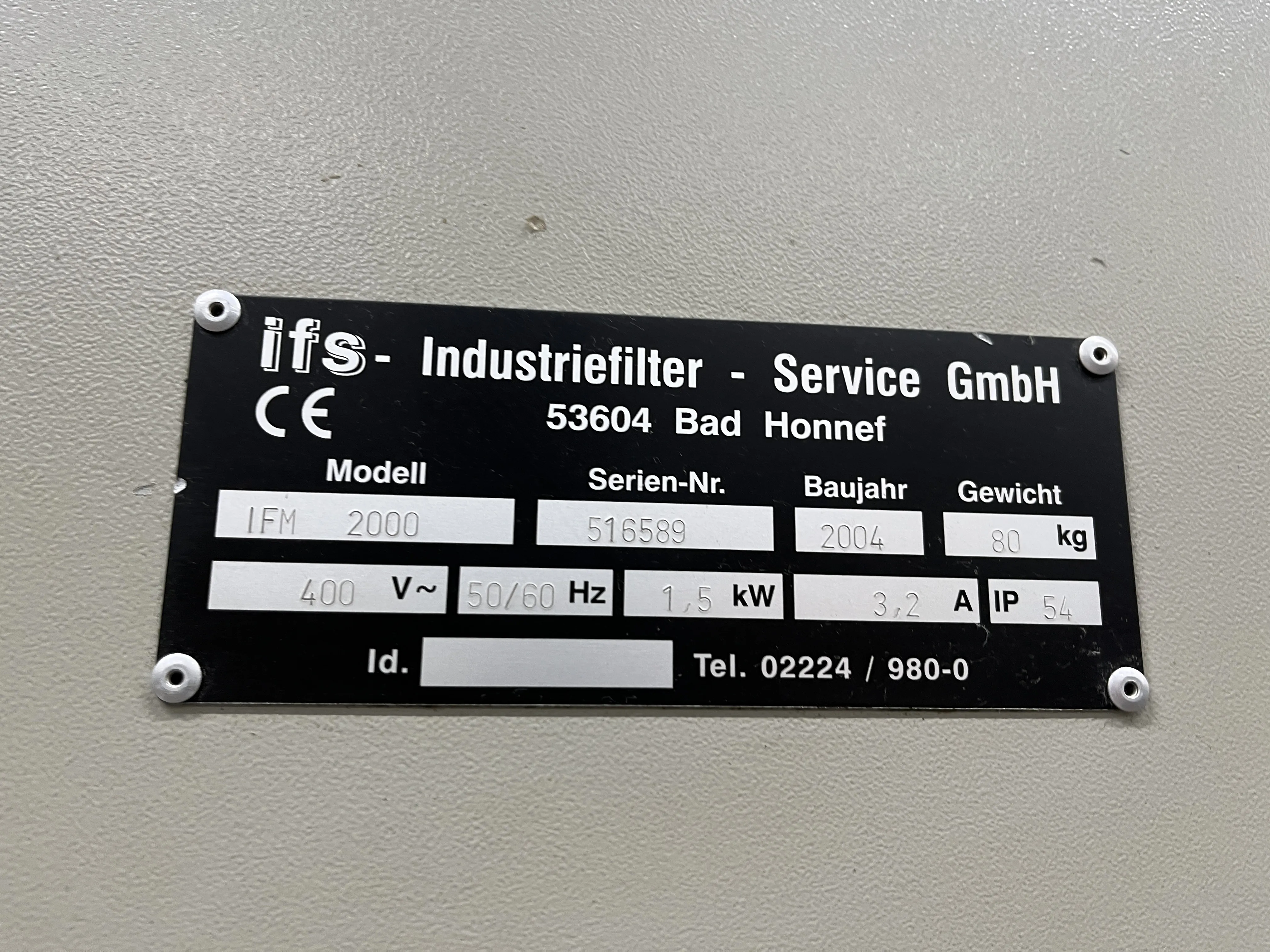

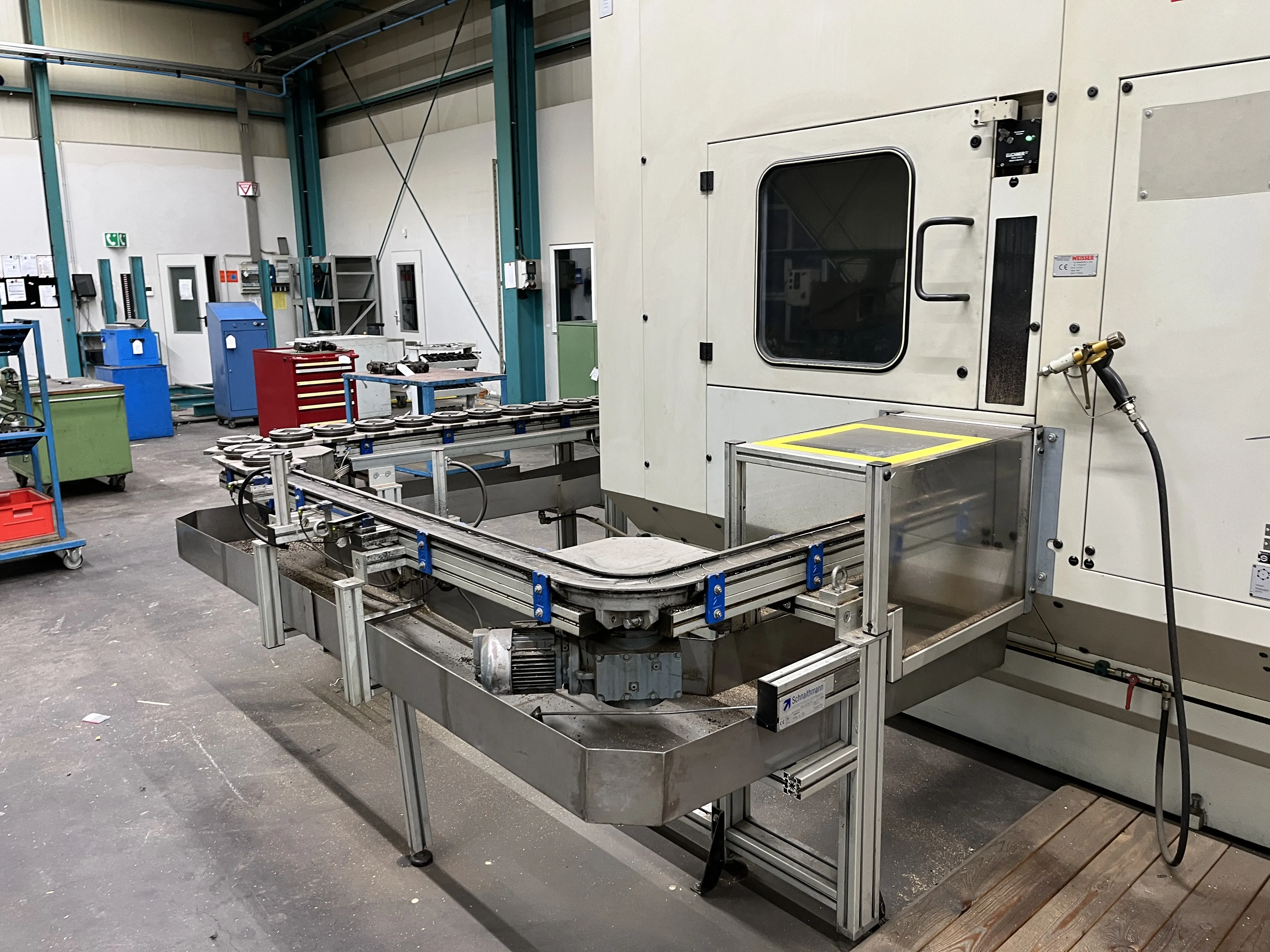

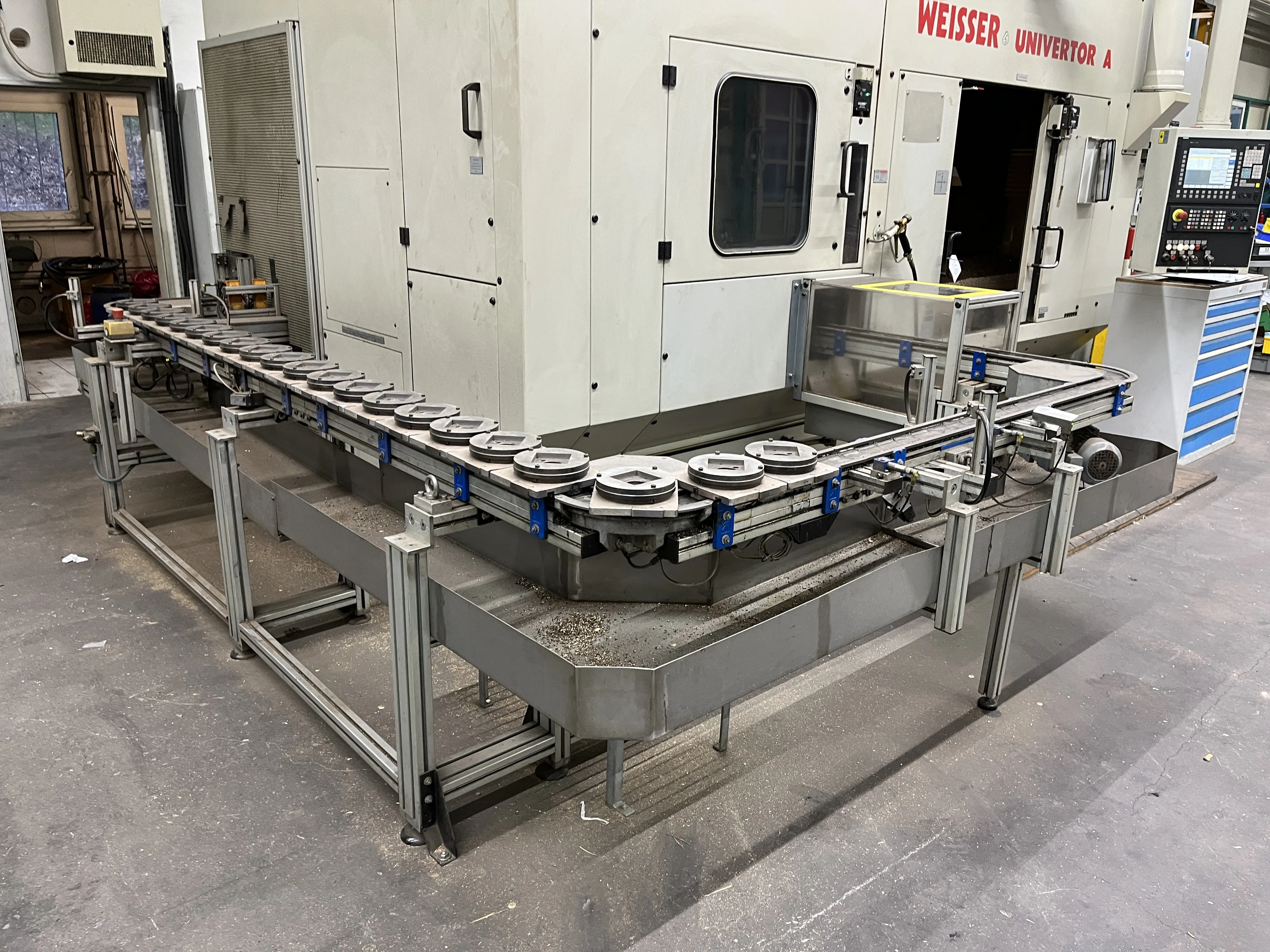

  • incl. Funding station from the manufacturer Schnaithmann and a chip conveyor from the manufacturer DGS, a filter suction of the manufacturer ifm and a
  • coolant system from the manufacturer Mahle
  • Dimensions Total: 8,000 x 3,000 mm
  • Total weight: approx. 11,500 kg

The machine is sold in the course of an industrial auction.
